Iseki TL3200

The Iseki TL3200 is a tractor produced by Iseki. It is equipped with a 90.7 ci 1.5 L engine. The rated power output is 31.6 hp 23.6 kW. Transmission: 18 forward and 6 reverse. Operating weight: 2910 to 3175 pounds.

Engine Power
31.6 hp 23.6 kW
Fuel & Capacities
10.6 gal 40.1 L
Transmission
18 forward and 6 reverse
Operating Weight
2910 to 3175 pounds

Iseki TL3200 Serial Number & Year Decoder

Find the exact manufacture year of your tractor by checking your chassis serial number below.

Where to Find the Serial NumberThe serial number plate is commonly located on the front frame, tractor transmission housing (right side), or instrument panel badge.

Overview

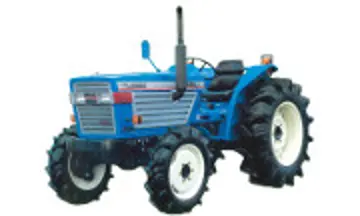

Iseki TL3200 tractor photo
1980 - 1985 TL SeriesCompact Utility tractor
1980 - 1985
TL Series
Compact Utility tractor
Production
Manufacturer
Iseki
Compact Utility tractor
Variants
TL3200F
4WD
Iseki TL3200 Engine
Isuzu 1.5L 4-cyl diesel
Fuel tank
10.6 gal 40.1 L
Engine details ...
Iseki TL3200 Transmission
18-speed
Transmission details ...
Iseki TL3200 Power
Engine
31.6 hp 23.6 kW
Mechanical
Two- or four-wheel drive
Open operator station. Four-post ROPS available.
Tractor hitch
Rear Type
JIS1
Power Take-off (PTO)
Rear PTO Type
540 (1.375)
Engine RPM
593@2600
722@2600
945@2600
1540@2600
Dimensions & Tires
Wheelbase
70.9 inches 180 cm
Weight
2910 to 3175 pounds
Front tire
6.00-16
2WD Rear tire
13.6-26
Full dimensions and tires ...
Electrical
Ground
negative
Battery volts
12
References
TL3200 references literature
TL published in 1984, by Iseki
TL2900 - TL3200 - TL4200
TL3200 published in 1984, by Iseki

Engine

Engine Detail — 90.7 ci / 1.5 L Diesel

Manufacturer
Isuzu 4FA1
Fuel Type
Diesel
Configuration
4-cylinder, liquid-cooled
Displacement
90.7 ci 1.5 L
Bore/Stroke
2.992x3.228 inches 76 x 82 mm
Power
31.6 hp 23.6 kW
Rated RPM
2600
Starter
electric
Starter volts
12

Transmission

Transmission — 18 forward and 6 reverse

Gears
18 forward and 6 reverse

Dimensions

Iseki TL3200 Tires
2WD Standard tires (ag)
Front: 6.00-16. Rear: 13.6-26
4WD Standard tires (ag)
Front: 8-18. Rear: 13.6-26
Dimensions
Wheelbase
70.9 inches 180 cm
Length
126.2 inches 320 cm
Width
60 inches 152 cm
Height (exhaust)
76 inches 193 cm
2WD Weight
2910 lbs 1319 kg
4WD Weight
3175 lbs 1440 kg
Ground clearance
14.2 inches 36 cm
2WD Front tread
45.3 to 61 inches 115 to 154 cm
4WD Front tread
47.6 inches 120 cm
Rear tread
44.9 to 59.1 inches 114 to 150 cm

Photos

Iseki TL3200

Iseki TL3200

Iseki TL3200

Iseki TL3200

Iseki TL3200 operator station and controls.

Iseki TL3200 operator station and controls.

Iseki TL3200 Specification Unit Converter

Convert power, fluid capacities, and operating weights between metric and imperial standards for Iseki TL3200.

Converted Equivalents:

Horsepower (HP)31.6 hp
Kilowatts (kW)23.6 kW
Metric Horsepower (PS / CV)32 PS
