Iseki TA325

The Iseki TA325 is a tractor produced by Iseki. It is equipped with a 91.3 ci 1.5 L engine. The rated power output is 31.6 hp 23.6 kW. Transmission: 16 forward and reverse. Operating weight: 3483 lbs 1579 kg.

Overview

	1987 - 1990 Landleader TA5 SeriesCompact Utility tractor
1987 - 1990
Landleader TA5 Series
Compact Utility tractor

1987 - 1990
Landleader TA5 Series
Compact Utility tractor

Production
Manufacturer	Iseki
Compact Utility tractor

Variants
TA325F	4WD

Iseki TA325 Engine
Isuzu 1.5L 4-cyl diesel
Fuel tank	11.1 gal 42.0 L
Engine details ...

Iseki TA325 Transmission
16-speed shuttle
Transmission details ...

Iseki TA325 Power
Engine	31.6 hp 23.6 kW

Mechanical
Four-wheel drive
Open operator station. Cab optional.

Photos
Iseki TA325 photos...

Tractor hitch
Rear Type	I

Power Take-off (PTO)
Rear PTO Type	540 (1.375)
Engine RPM	564@2800
	705@2800
	837@2800
	1308@2800

Dimensions & Tires
Wheelbase	73.6 inches 186 cm
Weight	3483 lbs 1579 kg
Front tire	8-18
Rear tire	13.6-26
Full dimensions and tires ...

Electrical
Ground	negative
Battery volts	12

References
Landleader TA295/TA325 published in 1990, by Iseki
Operator's Manual Landleader (1564-912-006-1B) published in 1990

Engine

	1987 - 1990 Landleader TA5 SeriesCompact Utility tractor
1987 - 1990
Landleader TA5 Series
Compact Utility tractor

1987 - 1990
Landleader TA5 Series
Compact Utility tractor

Engine Detail
Isuzu 4JF1
diesel
4-cylinder
liquid-cooled
Displacement	91.3 ci 1.5 L
Bore/Stroke	2.96x3.31 inches 75 x 84 mm
Power	31.6 hp 23.6 kW
Rated RPM	2800
Starter	electric
Starter volts	12

Transmission

	1987 - 1990 Landleader TA5 SeriesCompact Utility tractor
1987 - 1990
Landleader TA5 Series
Compact Utility tractor

1987 - 1990
Landleader TA5 Series
Compact Utility tractor

Transmission
Type	shuttle
Gears	16 forward and reverse
Four gears in four ranges with left-hand shuttle. Option power shuttle (S variant).

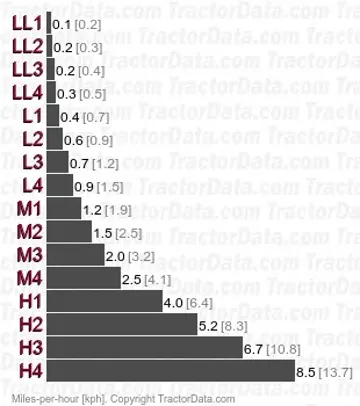

Speeds

Dimensions

	1987 - 1990 Landleader TA5 SeriesCompact Utility tractor
1987 - 1990
Landleader TA5 Series
Compact Utility tractor

1987 - 1990
Landleader TA5 Series
Compact Utility tractor

Iseki TA325 Tires
Standard tires (ag)	Front: 8-18. Rear: 13.6-26

Dimensions
Wheelbase	73.6 inches 186 cm
Length	128 inches 325 cm
Width	60 inches 152 cm
Height	75.6 inches 192 cm
Weight	3483 lbs 1579 kg
Ground clearance	13.4 inches 34 cm
Front tread	47.6 inches 120 cm
Rear tread	44.9/46.5/49.6/51.2/54.3/59.1 inches 114/118/125/130/137/150 cm

Photos

Iseki TA325
