Iseki TF173

The Iseki TF173 is a tractor produced by Iseki. It is equipped with a 61.4 ci 1.0 L engine. The listed engine power is Diesel (listed): 17.3 hp / 12.9 kW. Transmission: 6 forward and reverse. Operating weight: 1649 lbs 747 kg.

Engine Power
Diesel (listed): 17.3 hp / 12.9 kW
Fuel & Capacities
4.8 gal 18.2 L
Transmission
6 forward and reverse
Operating Weight
1649 lbs 747 kg

Overview

Iseki TF173 tractor photo
TF SeriesCompact Utility tractor
TF Series
Compact Utility tractor
Production
Manufacturer
Iseki
Compact Utility tractor
Iseki TF173 Engine
Iseki 1.0L 3-cyl diesel
Fuel tank
4.8 gal 18.2 L
Engine details ...
Iseki TF173 Power
Engine
17.3 hp 12.9 kW
PTO (claimed)
15.6 hp 11.6 kW
Mechanical
Four-wheel drive
Two-post folding ROPS.
Tractor hitch
Rear Type
0
Power Take-off (PTO)
Rear PTO Type
540 (1.375)
Engine RPM
522@2500
783@2500
1183@2500
Dimensions & Tires
Wheelbase
54.9 inches 139 cm
Weight
1649 lbs 747 kg
Front tire
6-12
Rear tire
8.3-20
Full dimensions and tires ...
Electrical
Ground
negative
Battery volts
12
References
TF173 references literature
Sial TF193 173 153 (1675-912-001-0)
New Sial published in 2000, by Iseki

Engine

Engine Detail — 61.4 ci / 1.0 L Diesel

Manufacturer
Iseki E3100-B
Fuel Type
Diesel
Configuration
3-cylinder, liquid-cooled
Displacement
61.4 ci 1.0 L
Bore/Stroke
2.91x3.07 inches 74 x 78 mm
Power
17.3 hp 12.9 kW
Rated RPM
2500
Starter
electric
Starter volts
12

Transmission

Transmission options
6-speed
6-speed shuttle

Transmission — 6 forward and 2 reverse

Gears
6 forward and 2 reverse
TF173   speeds

Transmission — 6 forward and reverse shuttle

Type
shuttle
Gears
6 forward and reverse

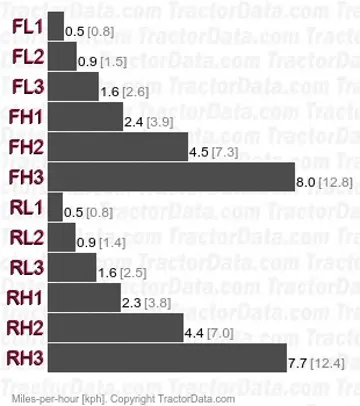

TF173  shuttle speeds

Dimensions

Iseki TF173 Tires
Standard tires (ag)
Front: 6-12. Rear: 8.3-20
Dimensions
Wheelbase
54.9 inches 139 cm
Width
42.9 inches 108 cm
Height
76.2 inches 193 cm
Weight
1649 lbs 747 kg
Ground clearance
12 inches 30 cm
Front tread
32.7 inches 83 cm
Rear tread
33.5/39.4 inches 85/100 cm

Photos

Iseki TF173 tractor photo

Iseki TF173 tractor photo

Recommended Implements & Sizing Guide

Engineering recommendations for Iseki TF173 based on its 17.3 HP power envelope and ASAE agricultural standards.

Implement & OperationRecommended SizeWorkload RatingEngineering Notes
Moldboard PlowPrimary Tillage
1 to 2 Bottom (12")1 - 2 铧 (30 cm)Light DutyIdeal for garden plots and light sandy soil.
Rotary Cutter / MowerMowing & Clearing
4 ft (48 in)1.2 mLight DutyPasture clipping and light brush under 1" diameter.
Rotary TillerSeedbed Prep
42 to 48 in105 - 120 cmLight DutyCovers compact tractor tire width.
Sizing & Soil Condition NoteActual implement sizing varies depending on local soil conditions (heavy clay vs sandy loam), field slope, and operating speed. Heavy tillage implements may require front ballast weights and wheel weights.

Fluids, Capacities & Working Autonomy

Standard fluid requirements, service intervals, and continuous runtime estimates for Iseki TF173.

Estimated Continuous Field Runtime: 5.3 hrs

Approximately 5.3 hours of continuous field operation at ~75% rated power on a full tank (4.8 gal / 18.2 L).

Estimated 75% Load Fuel Burn~0.9 gal/hr (3.4 L/hr)

Engine Crankcase Oil

SAE 15W-40 (Heavy Duty Diesel)
Standard Spec: API CK-4 / CJ-4 Heavy Duty
Service Interval: 150 – 250 Hours

Transmission & Hydraulic System

UTTO (Universal Tractor Transmission Oil)
Standard Spec: ISO VG 46 / 68 (Wet Brake & Trans Compatible)
Service Interval: 600 – 1000 Hours

Engine Cooling System

50/50 Ethylene Glycol Pre-mix
Standard Spec: ASTM D6210 / Heavy-Duty OAT Antifreeze
Service Interval: 2 Years / 1500 Hours

Iseki TF173 Specification Unit Converter

Convert power, fluid capacities, and operating weights between metric and imperial standards for Iseki TF173.

Converted Equivalents:

Horsepower (HP)17.3 hp
Kilowatts (kW)12.9 kW
Metric Horsepower (PS / CV)17.5 PS

Direct Competitor Comparison

Compare Iseki TF173 against same-era industry alternatives in the same horsepower class.

Current Model
Iseki

Iseki TF173

Engine Power:Diesel (listed): 17.3 hp / 12.9 kW
★ Baseline Reference
International HarvesterMarket Competitor

International Harvester 154 Lo-Boy

Engine Power:15.6
Production Years:1968 - 1974
Massey FergusonMarket Competitor

Massey Ferguson 1205

Engine Power:15.7
Production Years:1997 - 2003
KubotaMarket Competitor

Kubota B1610

Engine Power:15.7
AveryMarket Competitor

Avery 7-14

Engine Power:15.6
