Iseki TL2300
The Iseki TL2300 is a tractor produced by Iseki. It is equipped with a 79.1 ci 1.3 L engine. The listed engine power is Diesel (listed): 23 hp / 17.2 kW. Transmission: 18 forward and 6 reverse. Operating weight: 2094 to 2293 pounds.
Engine Power
Diesel (listed): 23 hp / 17.2 kW
Fuel & Capacities
7.1 gal
26.9 L
Transmission
18 forward and 6 reverse
Operating Weight
2094 to 2293 pounds
Overview
![]() | 1980 - 1985
TL SeriesCompact Utility tractor
TL Series
Compact Utility tractor |
|---|
Production | |
|---|---|
Manufacturer | Iseki |
Compact Utility tractor | |
Variants | |
|---|---|
TL2300F | 4WD |
Iseki TL2300 Engine | |
|---|---|
Isuzu 1.3L 3-cyl diesel | |
Fuel tank | 7.1 gal
26.9 L |
Engine details ... | |
Iseki TL2300 Power | |
|---|---|
Engine | 23 hp
17.2 kW |
Mechanical | |
|---|---|
Two- or four-wheel drive | |
Open operator station. |
Tractor hitch | |
|---|---|
Rear Type | JIS1 |
Power Take-off (PTO) | |
|---|---|
Rear PTO Type | 540 (1.375) |
Engine RPM | 553@2600 |
731@2600 | |
906@2600 | |
1280@2600 | |
Dimensions & Tires | |
|---|---|
Wheelbase | 62.2 inches
157 cm |
Weight | 2094 to 2293 pounds |
Front tire | 4.00-15 |
2WD Rear tire | 9.5-24 |
Full dimensions and tires ... | |
Electrical | |
|---|---|
Ground | negative |
Battery volts | 12 |
References | |
|---|---|
![]() | |
TL published in 1984, by Iseki | |
TL1900 - TL2700 |
Engine
Engine Detail — 79.1 ci / 1.3 L Diesel
Manufacturer | Isuzu E3AE1 |
Fuel Type | Diesel |
Configuration | 3-cylinder, liquid-cooled |
Displacement | 79.1 ci
1.3 L |
Bore/Stroke | 3.15x3.386 inches
80 x 86 mm |
Power | 23 hp
17.2 kW |
Rated RPM | 2600 |
Starter | electric |
Starter volts | 12 |
Coolant capacity | 7.4 qts
7.0 L |
Oil capacity | 5 qts
4.7 L |
Oil change | 100 h |
Transmission
Transmission options | |
|---|---|
9-speed gear | |
18-speed creeper |

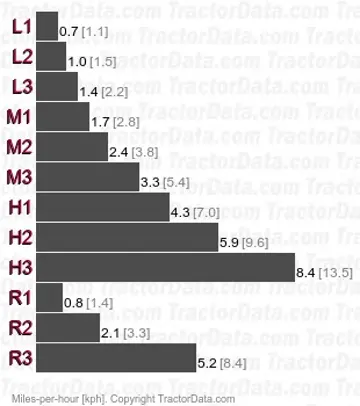

Transmission — 9 forward and 3 reverse gear
Type | gear |
Gears | 9 forward and 3 reverse |
Oil capacity | 35.9 qts
34.0 L |
Three gears (1-3) plus reverse (R) in three ranges. | |
![]() | |

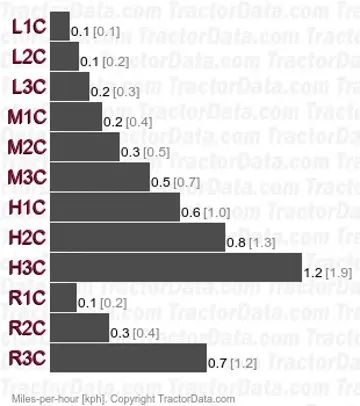

Transmission — 18 forward and 6 reverse creeper
Type | creeper |
Gears | 18 forward and 6 reverse |
Three gears (1-3) plus reverse (R) in three ranges with additional creeper range. | |
![]() | |
Dimensions
Iseki TL2300 Tires | |
|---|---|
2WD Standard tires (ag) | Front: 4.00-15. Rear: 9.5-24 |
4WD Standard tires (ag) | Front: 6-14. Rear: 9.4-24 |
Dimensions | |
|---|---|
Wheelbase | 62.2 inches
157 cm |
Length | 113 inches
287 cm |
Width | 49.2 inches
124 cm |
Height | 77.2 inches
196 cm |
2WD Weight | 2094 lbs
949 kg |
4WD Weight | 2293 lbs
1040 kg |
Ground clearance | 11.8 inches
29 cm |
2WD Front tread | 37.8/41.7 inches
96/105 cm |
4WD Front tread | 41.3 inches
104 cm |
Rear tread | 38.6/44.5 inches
98/113 cm |
Rear tread | 40.2 to 52.8 inches
102 to 134 cm |

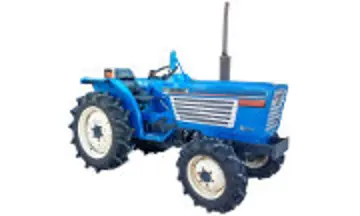

Photos
Recommended Implements & Sizing Guide
Engineering recommendations for Iseki TL2300 based on its 23 HP power envelope and ASAE agricultural standards.
| Implement & Operation | Recommended Size | Workload Rating | Engineering Notes |
|---|---|---|---|
Moldboard PlowPrimary Tillage | 1 to 2 Bottom (12")1 - 2 铧 (30 cm) | Light Duty | Ideal for garden plots and light sandy soil. |
Rotary Cutter / MowerMowing & Clearing | 4 ft (48 in)1.2 m | Light Duty | Pasture clipping and light brush under 1" diameter. |
Rotary TillerSeedbed Prep | 42 to 48 in105 - 120 cm | Light Duty | Covers compact tractor tire width. |
Disc HarrowSecondary Tillage | 5 to 6 ft (16-18" discs)1.5 - 1.8 m (40-45 cm 耙片) | Light Duty | Small acreage soil break-up and secondary aeration. |
Sizing & Soil Condition NoteActual implement sizing varies depending on local soil conditions (heavy clay vs sandy loam), field slope, and operating speed. Heavy tillage implements may require front ballast weights and wheel weights.
Fluids, Capacities & Working Autonomy
Standard fluid requirements, service intervals, and continuous runtime estimates for Iseki TL2300.
Estimated Continuous Field Runtime: 5.9 hrs
Approximately 5.9 hours of continuous field operation at ~75% rated power on a full tank (7.1 gal / 26.9 L).
Estimated 75% Load Fuel Burn~1.2 gal/hr (4.5 L/hr)
Engine Crankcase Oil
SAE 15W-40 (Heavy Duty Diesel)
Standard Spec: API CK-4 / CJ-4 Heavy Duty
Service Interval: 150 – 250 Hours
Transmission & Hydraulic System
UTTO (Universal Tractor Transmission Oil)
Standard Spec: ISO VG 46 / 68 (Wet Brake & Trans Compatible)
Service Interval: 600 – 1000 Hours
Engine Cooling System
50/50 Ethylene Glycol Pre-mix
Standard Spec: ASTM D6210 / Heavy-Duty OAT Antifreeze
Service Interval: 2 Years / 1500 Hours
Iseki TL2300 Specification Unit Converter
Convert power, fluid capacities, and operating weights between metric and imperial standards for Iseki TL2300.
Converted Equivalents:
Horsepower (HP)23 hp
Kilowatts (kW)17.2 kW
Metric Horsepower (PS / CV)23.3 PS
Direct Competitor Comparison
Compare Iseki TL2300 against same-era industry alternatives in the same horsepower class.
Current Model
Iseki
Iseki TL2300
Engine Power:Diesel (listed): 23 hp / 17.2 kW
★ Baseline Reference
