Iseki TL2701
The Iseki TL2701 is a tractor produced by Iseki. It is equipped with a 91.4 ci 1.5 L engine. The rated power output is 26.6 hp 19.8 kW. Transmission: 18 forward and 6 reverse. Operating weight: 2249 to 2469 pounds.
Engine Power
26.6 hp
19.8 kW
Fuel & Capacities
7.1 gal
26.9 L
Transmission
18 forward and 6 reverse
Operating Weight
2249 to 2469 pounds
Iseki TL2701 Serial Number & Year Decoder
Find the exact manufacture year of your tractor by checking your chassis serial number below.
Where to Find the Serial NumberThe serial number plate is commonly located on the front frame, tractor transmission housing (right side), or instrument panel badge.
Overview
 | 1980 - 1985
TL-01 SeriesCompact Utility tractor |
|---|---|
1980 - 1985 | |
TL-01 Series | |
Compact Utility tractor | |
Production | |
|---|---|
Manufacturer | Iseki |
Compact Utility tractor | |
Variants | |
|---|---|
TL2701F | 4WD |
Iseki TL2701 Engine | |
|---|---|
Isuzu 1.5L 3-cyl diesel | |
Fuel tank | 7.1 gal
26.9 L |
Engine details ...  | |
Iseki TL2701 Transmission | |
|---|---|
18-speed | |
Transmission details ...  |
Iseki TL2701 Power | |
|---|---|
Engine | 26.6 hp
19.8 kW |
Mechanical | |
|---|---|
Two- or four-wheel drive | |
Open operator station. |
Tractor hitch | |
|---|---|
Rear Type | JIS1 |
Power Take-off (PTO) | |
|---|---|
Rear PTO Type | 540 (1.375) |
Engine RPM | 553@2600 |
731@2600 | |
906@2600 | |
1280@2600 | |
Dimensions & Tires | |
|---|---|
Wheelbase | 65 inches
165 cm |
Weight | 2249 to 2469 pounds |
Front tire | 5.00-15 |
2WD Rear tire | 12.4-24 |
Full dimensions and tires ...  | |
Electrical | |
|---|---|
Ground | negative |
Battery volts | 12 |

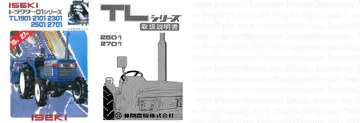

References | |
|---|---|
 | |
TL1901/2101/2301/2501/2701 published in 1984, by Iseki | |
TL2501 - TL2701 (1536-912-001-0A) |
Engine
Engine Detail — 91.4 ci / 1.5 L Diesel
Manufacturer | Isuzu E3AD1 |
Fuel Type | Diesel |
Configuration | 3-cylinder, liquid-cooled |
Displacement | 91.4 ci
1.5 L |
Bore/Stroke | 3.385x3.385 inches
86 x 86 mm |
Power | 26.6 hp
19.8 kW |
Rated RPM | 2600 |
Starter | electric |
Starter volts | 12 |
Coolant capacity | 7.4 qts
7.0 L |
Oil capacity | 5.1 qts
4.8 L |

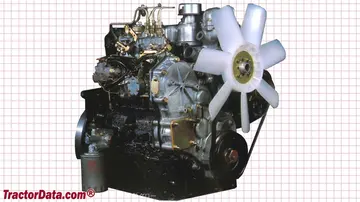

Iseki TL2701 Engine | |
|---|---|
 |
Transmission

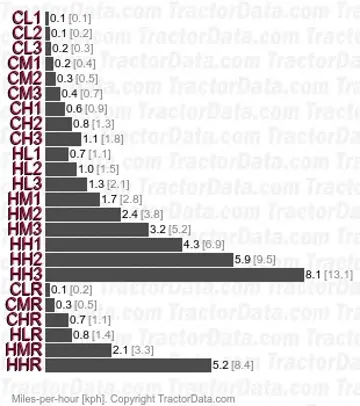

Transmission — 18 forward and 6 reverse
Gears | 18 forward and 6 reverse |
Oil capacity | 36.5 qts
34.5 L |
Three gears (1-3), plus reverse (R), in three ranges. Additional shift between working and creeper ranges. | |
 | |
Dimensions
Iseki TL2701 Tires | |
|---|---|
2WD Standard tires (ag) | Front: 5.00-15. Rear: 12.4-24 |
4WD Standard tires (ag) | Front: 7-16. Rear: 12.4-24 |
Dimensions | |
|---|---|
Wheelbase | 65 inches
165 cm |
Length | 79.1 inches
200 cm |
Width | 53.4 inches
135 cm |
Height (exhaust) | 78 inches
198 cm |
2WD Weight | 2249 lbs
1020 kg |
4WD Weight | 2469 lbs
1119 kg |
2WD Ground clearance | 13.6 inches
34 cm |
4WD Ground clearance | 12.6 inches
32 cm |
2WD Front tread | 38.6 to 50.4 inches
98 to 128 cm |
4WD Front tread | 41.3 inches
104 cm |
Rear tread | 40.2 to 52.8 inches
102 to 134 cm |

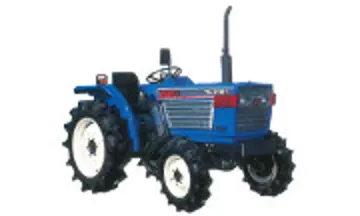

Photos
Iseki TL2701
Iseki TL2701
Iseki TL2701 Specification Unit Converter
Convert power, fluid capacities, and operating weights between metric and imperial standards for Iseki TL2701.
Converted Equivalents:
Horsepower (HP)26.6 hp
Kilowatts (kW)19.8 kW
Metric Horsepower (PS / CV)27 PS
