Iseki TR633
The Iseki TR633 is a tractor produced by Iseki. It is equipped with a 182.8 ci 3.0 L engine. The listed engine power is Diesel (listed): 62.1 hp / 46.3 kW. Transmission: 20 forward and reverse. Operating weight: 5423 lbs 2459 kg.
Engine Power
Diesel (listed): 62.1 hp / 46.3 kW
Fuel & Capacities
22.2 gal
84.0 L
Transmission
20 forward and reverse
Operating Weight
5423 lbs
2459 kg
Overview
 | 2000 - 2002
TR SeriesUtility tractorLandini built
TR Series
Utility tractor
Landini built |
|---|
Production | |
|---|---|
Distributor | Iseki |
Manufacturer | Landini |
Utility tractor | |
Variants | |
|---|---|
TR633F | wheeled tractor |
TR633CF | half-track |
Iseki TR633 Engine | |
|---|---|
Perkins 3.0L 4-cyl diesel | |
Fuel tank | 22.2 gal
84.0 L |
Engine details ...  | |
Iseki TR633 Transmission | |
|---|---|
20-speed | |
Transmission details ...  |
Iseki TR633 Power | |
|---|---|
Engine | 62.1 hp
46.3 kW |
Mechanical | |
|---|---|
Four-wheel drive | |
Power steering | |
Cab standard with air-conditioning. |
Power Take-off (PTO) | |
|---|---|
Rear PTO Type | 540 (1.375) |
Engine RPM | 580@2600 |
827@2600 | |
1090@2600 | |
-545@2600 | |
Dimensions & Tires | |
|---|---|
Wheelbase | 79.1 inches
200 cm |
Weight | 5423 lbs
2459 kg |
Front tire | 8.3/8R24 |
Rear tire | 12.4-32 |
Full dimensions and tires ...  | |
Engine
Engine Detail — 182.8 ci / 3.0 L Diesel
Manufacturer | Perkins 704-30 |
Fuel Type | Diesel |
Configuration | 4-cylinder, liquid-cooled |
Displacement | 182.8 ci
3.0 L |
Bore/Stroke | 3.82x3.94 inches
97 x 100 mm |
Power | 62.1 hp
46.3 kW |
Compression | 17.5:1 |
Rated RPM | 2600 |
Torque | 154.9 lb-ft
210.0 Nm |
Torque RPM | 1600 |
Starter | electirc |
Starter volts | 12 |

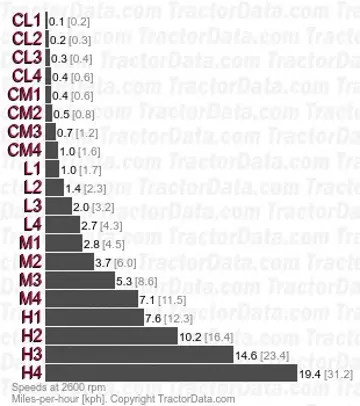

Transmission
Transmission — 20 forward and reverse
Gears | 20 forward and reverse |
Four in three standard ranges, plus two creeper ranges, with shuttle. | |
With 12.4-32 rear tires. | |
 | |
Dimensions
Iseki TR633 Tires | |
|---|---|
Standard tires (ag) | Front: 8.3/8R24. Rear: 12.4-32 |
Dimensions | |
|---|---|
Wheelbase | 79.1 inches
200 cm |
Length | 144.1 inches
366 cm |
Width | 66.1 inches
167 cm |
Height | 92.9 inches
235 cm |
Weight | 5423 lbs
2459 kg |
Ground clearance | 16.1 inches
40 cm |
Front tread | 48 to 63.4 inches
121 to 161 cm |
Rear tread | 48.4 to 73.6 inches
122 to 186 cm |
Photos
Iseki TR633 tractor photo
Recommended Implements & Sizing Guide
Engineering recommendations for Iseki TR633 based on its 62.1 HP power envelope and ASAE agricultural standards.
| Implement & Operation | Recommended Size | Workload Rating | Engineering Notes |
|---|---|---|---|
Moldboard PlowPrimary Tillage | 3 to 4 Bottom (16")3 - 4 铧 (40 cm) | Heavy Duty | Suitable for medium loam and stubble turnover. |
Rotary Cutter / MowerMowing & Clearing | 6 ft (72 in)1.8 m | Medium Duty | Medium pasture clearing; rear slip-clutch recommended. |
Rotary TillerSeedbed Prep | 66 to 72 in165 - 180 cm | Medium Duty | Standard utility tiller; slip clutch protection required. |
Disc HarrowSecondary Tillage | 7 to 8 ft Tandem Disc2.1 - 2.4 m 对开双排耙 | Medium Duty | Field leveling and clod breaking behind plows. |
Hay BalerHay & Forage | 4x4 to 4x5 Round Baler1.2x1.5 m 紧凑圆捆机 | Heavy Duty | Silage and dry hay; 540 RPM PTO with slip-clutch. |
Sizing & Soil Condition NoteActual implement sizing varies depending on local soil conditions (heavy clay vs sandy loam), field slope, and operating speed. Heavy tillage implements may require front ballast weights and wheel weights.
Fluids, Capacities & Working Autonomy
Standard fluid requirements, service intervals, and continuous runtime estimates for Iseki TR633.
Estimated Continuous Field Runtime: 6.9 hrs
Approximately 6.9 hours of continuous field operation at ~75% rated power on a full tank (22.2 gal / 84 L).
Estimated 75% Load Fuel Burn~3.2 gal/hr (12.2 L/hr)
Engine Crankcase Oil
SAE 15W-40 (Heavy Duty Diesel)
Standard Spec: API CK-4 / CJ-4 Heavy Duty
Service Interval: 150 – 250 Hours
Transmission & Hydraulic System
UTTO (Universal Tractor Transmission Oil)
Standard Spec: ISO VG 46 / 68 (Wet Brake & Trans Compatible)
Service Interval: 600 – 1000 Hours
Engine Cooling System
50/50 Ethylene Glycol Pre-mix
Standard Spec: ASTM D6210 / Heavy-Duty OAT Antifreeze
Service Interval: 2 Years / 1500 Hours
Iseki TR633 Specification Unit Converter
Convert power, fluid capacities, and operating weights between metric and imperial standards for Iseki TR633.
Converted Equivalents:
Horsepower (HP)62.1 hp
Kilowatts (kW)46.3 kW
Metric Horsepower (PS / CV)63 PS
