Volvo 2200

The Volvo 2200 is a tractor produced by Volvo. It is equipped with a 235.6 ci 3.9 L engine. The listed engine power is Diesel (listed): 56 hp / 41.8 kW; Diesel (listed): 4 hp / 3.0 kW. Transmission: 16 forward and 8 reverse. Operating weight: 6493 lbs 2945 kg.

Overview

	1978 - 1981 2200 SeriesUtility tractor 2200 Series Utility tractor

Production
Manufacturer	Volvo
Utility tractor
Total built	1819

Variants
2200	2WD
2204	4WD

Volvo 2200 Engine
Volvo 3.9L 4-cyl diesel
Fuel tank	23.2 gal 87.8 L
Engine details ...

Volvo 2200 Power
Engine	56 hp 41.8 kW
PTO (claimed)	46 hp 34.3 kW

Mechanical
Two-wheel drive
Steering	hydrostatic power
Hydraulic wet disc brakes
Volvo BM cab standard with heater.

Hydraulics
Pressure	2495 psi 172.0 bar
Valves	2
Pump flow	11.9 gpm 45.0 lpm

Tractor hitch
Rear Type	II
Control	position and draft control
Rear lift	4079 lbs 1850 kg

Power Take-off (PTO)
Rear PTO	independent
Rear PTO Type	540 (1.375)
Engine RPM	540@1940

Dimensions & Tires
Wheelbase	85.43 inches 216 cm
Weight	6493 lbs 2945 kg
Front tire	7.50-16
Rear tire	13.6-38
Full dimensions and tires ...

Electrical
Ground	negative
Charging system	alternator
Charging amps	35
Batteries	2
Battery volts	12
Battery AH	140

References
Volvo BM 2200 published in 1978
Volvo BM 2200 published in 1979

Engine

Engine Detail — 235.6 ci / 3.9 L Diesel

Manufacturer	Volvo D39T
Fuel Type	Diesel
Configuration	4-cylinder, liquid-cooled
Displacement	235.6 ci 3.9 L
Bore/Stroke	3.874x5.000 inches 98 x 127 mm
Power	56 hp 41.8 kW
Fuel system	direct injection
Pre-heating	thermostart
Compression	16:1
Rated RPM	2200
Torque	160.8 lb-ft 218.0 Nm
Torque RPM	1400
Starter volts	12
Starter power	4 hp 3.0 kW

Transmission

Transmission options
8-speed synchromesh
16-speed two-speed power shift

Transmission — 8 forward and 4 reverse synchromesh

Type	synchromesh
Gears	8 forward and 4 reverse
Clutch	279.4mm dry disc
Four gears in two ranges, plus reverse.

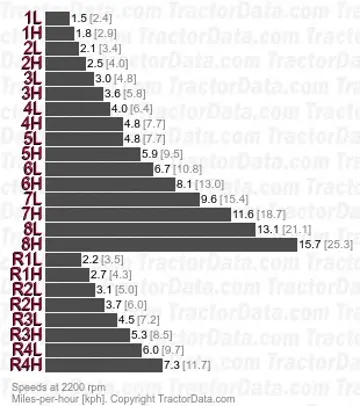

Transmission — 16 forward and 8 reverse two-speed power shift

Type	two-speed power shift
Gears	16 forward and 8 reverse
Clutch	279.4mm dry disc
Optional hydraulic power shift adds an additional high-low shift to the base eight-speed transmission.

Dimensions

Volvo 2200 Tires
Ag front	7.50-16
Ag rear	13.6-38
Ag front	10.00-16
Ag rear	16.9-34

Dimensions
Wheelbase	85.43 inches 216 cm
Length	145.7 inches 370 cm
Width	73.6 inches 186 cm
Height	100.4 inches 255 cm
Weight	6493 lbs 2945 kg
Ground clearance	16.9 inches 42 cm
Front tread	55.7 inches 141 cm
Front tread	54.7/55.7/62.2/66.9/70.9/74.8 inches 138/141/157/169/180/189 cm
Rear tread	55.9/59.8/63.8/67.7/71.7/75.6 inches 141/151/162/171/182/192 cm
