Iseki TS3910

The Iseki TS3910 is a tractor produced by Iseki. It is equipped with a 91.4 ci 1.5 L engine. The listed engine power is Diesel (listed): 38.5 hp / 28.7 kW. Transmission: 18 forward and 6 reverse.

Engine Power
Diesel (listed): 38.5 hp / 28.7 kW
Fuel & Capacities
7.9 gal 29.9 L
Transmission
18 forward and 6 reverse

Overview

Iseki TS3910 tractor photo
Compact Utility tractor
Compact Utility tractor
Production
Manufacturer
Iseki
Compact Utility tractor
Iseki TS3910 Engine
Iseki 1.5L 3-cyl diesel
Fuel tank
7.9 gal 29.9 L
Engine details ...
Iseki TS3910 Power
Engine
38.5 hp 28.7 kW
Mechanical
Four-wheel drive
Open operator station.
Tractor hitch
Rear Type
I
Power Take-off (PTO)
Rear PTO Type
540 (1.375)
Engine RPM
630@2600
773@2600
990@2600
1547@2600
Dimensions & Tires
Wheelbase
70.1 inches 178 cm
Front tire
6.00-16
Rear tire
12.4/11-24
Full dimensions and tires ...

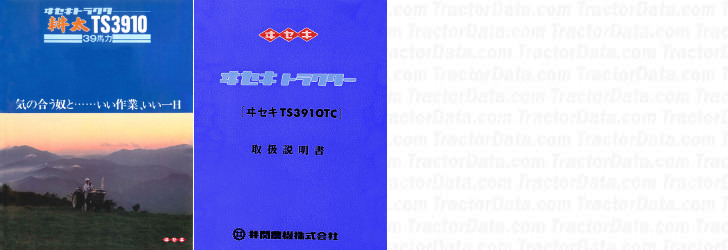

References
TS3910 references literature
TS3910 published by Iseki
TS3910

Engine

Engine Detail — 91.4 ci / 1.5 L Diesel

Manufacturer
Iseki 3AD1
Configuration
turbocharged diesel, 3-cylinder, liquid-cooled
Displacement
91.4 ci 1.5 L
Bore/Stroke
3.39x3.39 inches 86 x 86 mm
Power
38.5 hp 28.7 kW
Rated RPM
2600
Starter
electric
Starter volts
12

Transmission

Transmission options
9-speed gear
18-speed creeper

Transmission — 9 forward and 3 reverse gear

Type
gear
Gears
9 forward and 3 reverse
TS3910  gear speeds
Transmission
Type
creeper
Gears
18 forward and 6 reverse

Dimensions

Iseki TS3910 Tires
Ag front
6.00-16
Ag rear
12.4/11-24
Dimensions
Wheelbase
70.1 inches 178 cm
Length
122.1 inches 310 cm
Width
58.3 inches 148 cm
Height
78.7 inches 199 cm
Ground clearance
12.6 inches 32 cm
Front tread
44.1 inches 112 cm
Rear tread
44.9 to 56.3 inches 114 to 143 cm

Photos

Iseki TS3910 tractor photo

Iseki TS3910 tractor photo

Recommended Implements & Sizing Guide

Engineering recommendations for Iseki TS3910 based on its 38.5 HP power envelope and ASAE agricultural standards.

Implement & OperationRecommended SizeWorkload RatingEngineering Notes
Moldboard PlowPrimary Tillage
2 to 3 Bottom (14-16")2 - 3 铧 (35-40 cm)Medium DutyStandard utility farm tillage.
Rotary Cutter / MowerMowing & Clearing
5 ft (60 in)1.5 mMedium DutyPasture maintenance and weeds up to 1.5" diameter.
Rotary TillerSeedbed Prep
54 to 60 in135 - 150 cmMedium DutyThorough seedbed preparation in orchards and vegetable plots.
Disc HarrowSecondary Tillage
5 to 6 ft (16-18" discs)1.5 - 1.8 m (40-45 cm 耙片)Light DutySmall acreage soil break-up and secondary aeration.
Hay BalerHay & Forage
Small Square Baler (14x18")小方捆打捆机 (36x46 cm)Medium DutyClassic 2-string baler for horse and small livestock hay.
Sizing & Soil Condition NoteActual implement sizing varies depending on local soil conditions (heavy clay vs sandy loam), field slope, and operating speed. Heavy tillage implements may require front ballast weights and wheel weights.

Fluids, Capacities & Working Autonomy

Standard fluid requirements, service intervals, and continuous runtime estimates for Iseki TS3910.

Estimated Continuous Field Runtime: 3.9 hrs

Approximately 3.9 hours of continuous field operation at ~75% rated power on a full tank (7.9 gal / 29.9 L).

Estimated 75% Load Fuel Burn~2 gal/hr (7.6 L/hr)

Engine Crankcase Oil

SAE 15W-40 (Heavy Duty Diesel)
Standard Spec: API CK-4 / CJ-4 Heavy Duty
Service Interval: 150 – 250 Hours

Transmission & Hydraulic System

UTTO (Universal Tractor Transmission Oil)
Standard Spec: ISO VG 46 / 68 (Wet Brake & Trans Compatible)
Service Interval: 600 – 1000 Hours

Engine Cooling System

50/50 Ethylene Glycol Pre-mix
Standard Spec: ASTM D6210 / Heavy-Duty OAT Antifreeze
Service Interval: 2 Years / 1500 Hours

Iseki TS3910 Specification Unit Converter

Convert power, fluid capacities, and operating weights between metric and imperial standards for Iseki TS3910.

Converted Equivalents:

Horsepower (HP)38.5 hp
Kilowatts (kW)28.7 kW
Metric Horsepower (PS / CV)39 PS

Direct Competitor Comparison

Compare Iseki TS3910 against same-era industry alternatives in the same horsepower class.

Current Model
Iseki

Iseki TS3910

Engine Power:Diesel (listed): 38.5 hp / 28.7 kW
★ Baseline Reference
KubotaMarket Competitor

Kubota L3400

Engine Power:34.7
Production Years:2004 - 2010
New HollandMarket Competitor

New Holland T3010

Engine Power:34.7
Production Years:2007 - 2010
Deutz-FahrMarket Competitor

Deutz-Fahr Agrokid 30

Engine Power:34.8
Production Years:2003 - 2006
Massey FergusonMarket Competitor

Massey Ferguson 1045

Engine Power:35
Production Years:1986 - 1990
