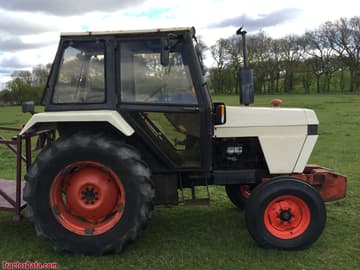

J.I. Case 1194
The J.I. Case 1194 is a tractor produced by J I Case. It is equipped with a 165 ci 2.7 L engine. The listed engine power is Diesel (listed): 49 hp / 36.5 kW. Transmission: 12 forward and 4 reverse. Operating weight: 4,650 lbs 2109 kg.
Engine Power
Diesel (listed): 49 hp / 36.5 kW
Fuel & Capacities
26.4 gal
99.9 L
Transmission
12 forward and 4 reverse
Operating Weight
4,650 lbs
2109 kg
Overview
 | 1983 - 1984
94 SeriesUtility tractor
94 Series
Utility tractor |
|---|
Production | |
|---|---|
Manufacturer | J.I. Case |
Utility tractor | |
Built in Meltham Mills, Huddersfield, England | |
Original price was $17,100 in 1984 | |
J.I. Case 1194 Engine | |
|---|---|
J.I. Case 2.7L 3-cyl diesel | |
Fuel tank | 26.4 gal
99.9 L |
Engine details ...  | |
J.I. Case 1194 Transmission | |
|---|---|
12-speed synchromesh | |
Transmission details ...  |
J.I. Case 1194 Power | |
|---|---|
Engine | 49 hp
36.5 kW |
PTO (claimed) | 43 hp
32.1 kW |
Drawbar (tested) | 34.65 hp
25.8 kW |
PTO (tested) | 43.09 hp
32.1 kW |
Performance test details ...  | |
Mechanical | |
|---|---|
Two-wheel drive | |
Differential lock | mechanical rear |
Power steering | |
Drum brakes | |
Cab standard. | |
Hydraulics | |
|---|---|
Type | open center |
Pressure | 2550 psi
175.8 bar |
Valves | 1 |
Pump flow | 7 gpm
26.5 lpm |
Steering flow | 2 gpm
7.6 lpm |
Tractor hitch | |
|---|---|
Rear Type | II/I |
Rear lift (at 24"/610mm) | 2,180 lbs
988 kg |
Power Take-off (PTO) | |
|---|---|
Rear PTO | independent |
Rear PTO Type | 540/1000 |
Dimensions & Tires | |
|---|---|
Wheelbase | 77.5 inches
196 cm |
Weight | 4,650 lbs
2109 kg |
Front tire | 6.00-16 |
Rear tire | 12.4-32 |
Full dimensions and tires ...  | |
Electrical | |
|---|---|
Ground | negative |
Charging system | alternator |
Charging amps | 45 |
Battery CCA | 420 |
550 (heavy-duty) | |
Battery volts | 12 |
Battery AH | 96 |
128 (heavy-duty) | |
References | |
|---|---|
 | |
Models 74L & 56L Farm Loaders published in 1983, by J.I. Case | |
1194 - 1294 published in 1983, by J.I. Case | |
94 Series published in 1983, by J.I. Case | |
1194/1294/1394/1494/1594 Tractors published in 1983, by J.I. Case | |
The Tractor Specialist Buyers Guide published in 1984, by J.I. Case | |
Tractor & Loaders Buyers Guide published in 1985, by J.I. Case |
Engine
Engine Detail — 165 ci / 2.7 L Diesel
Manufacturer | J.I. Case |
Fuel Type | Diesel |
Configuration | 3-cylinder, liquid-cooled |
Displacement | 165 ci
2.7 L |
Bore/Stroke | 3.937x4.50 inches
100 x 114 mm |
Power | 49 hp
36.5 kW |
Compression | 17:1 |
Rated RPM | 2200 |
Torque | 123.2 lb-ft
167.1 Nm |
Torque RPM | 1600 |
Starter volts | 12 |
Oil capacity | 6.7 qts
6.3 L |
Coolant capacity | 9 qts
8.5 L |
Transmission
Transmission — 12 forward and 4 reverse synchromesh
Type | synchromesh |
Gears | 12 forward and 4 reverse |
Oil capacity | 25.8 qts
24.4 L |
Dimensions
J.I. Case 1194 Tires | |
|---|---|
Ag front | 6.00-16 |
7.50-16 | |
Ag rear | 12.4-32 |
14.9-24 | |
Dimensions | |
|---|---|
Wheelbase | 77.5 inches
196 cm |
Width | 70 inches
177 cm |
Height (cab) | 94 inches
238 cm |
Weight | 4,650 lbs
2109 kg |
Front tread | 52 to 72 inches
132 to 182 cm |
Rear tread | 56 to 76 inches
142 to 193 cm |
Tests
Nebraska Tractor Test 1378 | |
|---|---|
Diesel 12-speed 2WD
March 27 - April 9, 1981
Link: Nebraska Tractor Test 1378 file | |
PTO performance | |
Power at rated engine speed | 43.09 hp
32.1 kW |
Fuel use | 2.9 gal/hour
11.0 l/hour |
Power at rated PTO speed | 38.54 hp
28.7 kW |
Fuel use | 2.6 gal/hour
9.8 l/hour |
Drawbar performance | |
Max power | 34.65 hp
25.8 kW |
Fuel use | 2.8 gal/hour
10.6 l/hour |
Gear 4-1 used for power test. | |
Max pull | 4620 lbs
2095 kg |
Gear 1-3 used for pull test. | |
Recommended Implements & Sizing Guide
Engineering recommendations for J I Case J.I. Case 1194 based on its 49 HP power envelope and ASAE agricultural standards.
| Implement & Operation | Recommended Size | Workload Rating | Engineering Notes |
|---|---|---|---|
Moldboard PlowPrimary Tillage | 2 to 3 Bottom (14-16")2 - 3 铧 (35-40 cm) | Medium Duty | Standard utility farm tillage. |
Rotary Cutter / MowerMowing & Clearing | 6 ft (72 in)1.8 m | Medium Duty | Medium pasture clearing; rear slip-clutch recommended. |
Rotary TillerSeedbed Prep | 66 to 72 in165 - 180 cm | Medium Duty | Standard utility tiller; slip clutch protection required. |
Disc HarrowSecondary Tillage | 7 to 8 ft Tandem Disc2.1 - 2.4 m 对开双排耙 | Medium Duty | Field leveling and clod breaking behind plows. |
Hay BalerHay & Forage | Small Square Baler (14x18")小方捆打捆机 (36x46 cm) | Medium Duty | Classic 2-string baler for horse and small livestock hay. |
Sizing & Soil Condition NoteActual implement sizing varies depending on local soil conditions (heavy clay vs sandy loam), field slope, and operating speed. Heavy tillage implements may require front ballast weights and wheel weights.
Fluids, Capacities & Working Autonomy
Standard fluid requirements, service intervals, and continuous runtime estimates for J I Case J.I. Case 1194.
Estimated Continuous Field Runtime: 10.4 hrs
Approximately 10.4 hours of continuous field operation at ~75% rated power on a full tank (26.4 gal / 99.9 L).
Estimated 75% Load Fuel Burn~2.5 gal/hr (9.6 L/hr)
Engine Crankcase Oil
SAE 15W-40 (Heavy Duty Diesel)
Standard Spec: API CK-4 / CJ-4 Heavy Duty
Service Interval: 150 – 250 Hours
Transmission & Hydraulic System
UTTO (Universal Tractor Transmission Oil)
Standard Spec: ISO VG 46 / 68 (Wet Brake & Trans Compatible)
Service Interval: 600 – 1000 Hours
Engine Cooling System
50/50 Ethylene Glycol Pre-mix
Standard Spec: ASTM D6210 / Heavy-Duty OAT Antifreeze
Service Interval: 2 Years / 1500 Hours
J I Case J.I. Case 1194 Specification Unit Converter
Convert power, fluid capacities, and operating weights between metric and imperial standards for J I Case J.I. Case 1194.
Converted Equivalents:
Horsepower (HP)49 hp
Kilowatts (kW)36.5 kW
Metric Horsepower (PS / CV)49.7 PS
