J.I. Case 410-B
The J.I. Case 410-B is a tractor produced by J I Case. It is equipped with a 148 ci 2.4 L engine. Transmission: Case-O-Matic shuttle. Operating weight: 3135 lbs 1422 kg.
Fuel & Capacities
13.8 gal
52.2 L
Transmission
Case-O-Matic shuttle
Operating Weight
3135 lbs
1422 kg
J I Case J.I. Case 410-B Serial Number & Year Decoder
Find the exact manufacture year of your tractor by checking your chassis serial number below.
Where to Find the Serial NumberThe serial number plate is commonly located on the front frame, tractor transmission housing (right side), or instrument panel badge.
Overview
 | 1958 - 1959
400B SeriesUtility tractor |
|---|---|
1958 - 1959 | |
400B Series | |
Utility tractor | |
Production | |
|---|---|
Manufacturer | J.I. Case |
Utility tractor | |
Built in Rock Island, Illinois, USA | |
Total built | 798 |
Advertised as the Case 400 Case-O-Matic, the Case 410B was an upgraded version of the Case 300 utility with the new Case-O-Matic torque converter transmission. | |
Variants | |
|---|---|
410B | Case-O-Matic utility |
310B | gear utility |
411B | Case-O-Matic row-crop |
J.I. Case 410-B Engine | |
|---|---|
J.I. Case 2.4L 4-cyl gasoline | |
Engine details ...  |
J.I. Case 410-B Power | |
|---|---|
PTO (claimed) | 37 hp
27.6 kW |
Plows | 3 |
Mechanical | |
|---|---|
Two-wheel drive | |
Power steering | |
Differential mechanical dry disc brakes | |
Open operator station. |
Capacity | |
|---|---|
Fuel | 13.8 gal
52.2 L |
Hydraulic system | 3 gal
11.4 L |
Hydraulics | |
|---|---|
Type | open center |
Capacity | 3 gal
11.4 L |
Pressure | 1200 psi
82.7 bar |
Tractor hitch | |
|---|---|
Type | Eagle Hitch |
Power Take-off (PTO) | |
|---|---|
Rear PTO | independent |
Rear PTO Type | 540 (1.375) |
Engine RPM | 541@1970 |
Dimensions & Tires | |
|---|---|
Wheelbase | 75.25 inches
191 cm |
Weight | 3135 lbs
1422 kg |
Front tire | 6.00-16 |
Rear tire | 11-24 |
Full dimensions and tires ...  | |
Belt Pulley | |
|---|---|
Diameter | 10.25 inches
26 cm |
Width | 6 inches
15 cm |
RPM | 1180 |
Speed | 3060 ft/min
932.69 meters/min |
Electrical | |
|---|---|
Ground | positive |
Charging system | generator |
Battery volts | 12 |
Battery AH | 50 |
References | |
|---|---|
 | |
300B-400B Tractors Operators Manual (9-472) published in 1958 | |
Case-o-matic Drive 400 published in 1958, by J.I. Case | |
J.I. Case presents published in 1957 |
Engine
Engine Detail — 148 ci / 2.4 L Gasoline
Manufacturer | J.I. Case |
Fuel Type | Gasoline |
Configuration | 4-cylinder, liquid-cooled |
Displacement | 148 ci
2.4 L |
Bore/Stroke | 3.375x4.125 inches
86 x 105 mm |
Fuel system | carburetor |
Air cleaner | oil bath |
Compression | 7.1:1 |
Rated RPM | 2050 |
Idle RPM | 500-2125 |
Firing order | 1-3-4-2 |
Starter | electric |
Starter volts | 12 |
Coolant capacity | 13 qts
12.3 L |
Sparkplug | Champion D-16 |
Sparkplug gap | 0.025 inches
0.635 mm |
Intake valve clearance | 0.014 inches (cold)
0.356 mm |
Exhaust valve clearance | 0.014 inches (cold)
0.356 mm |
Oil capacity | 5 qts
4.7 L |
Oil change | 100 h |
Transmission
Transmission options | |
|---|---|
8-speed torque converter | |
4-speed torque converter |
Transmission — Case-O-Matic Dual Range
Transmission | Case-O-Matic Dual Range |
Type | torque converter |
Gears | 8 forward and 2 reverse |
Clutch | hydraulic disc |
With 11-24 rear tires. | |
 | |
Transmission — Case-O-Matic gear
Transmission | Case-O-Matic gear |
Type | torque converter |
Gears | 4 forward and 1 reverse |
Clutch | hydraulic disc |
With 11-24 rear tires. | |
 | |

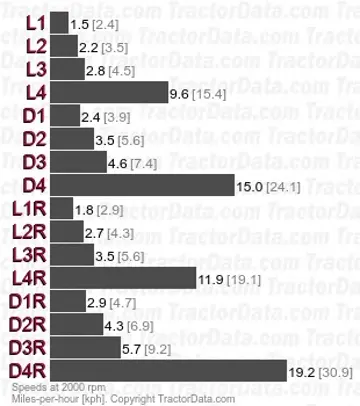

Transmission — Case-O-Matic shuttle
Transmission | Case-O-Matic shuttle |
Type | torque converter |
Gears | 8 forward and reverse |
Clutch | hydraulic disc |
With 13-24 rear tires. | |
 | |
Dimensions
J.I. Case 410-B Tires | |
|---|---|
Ag front | 6.00-16 |
Ag rear | 11-24 |
Ag front | 7.50-16 |
Ag rear | 10-24 |
13-24 | |
Dimensions | |
|---|---|
Wheelbase | 75.25 inches
191 cm |
Length | 130.75 inches
332 cm |
Width | 61.675 inches
156 cm |
Height (steering wheel) | 55.5 inches
140 cm |
Weight | 3135 lbs
1422 kg |
Front tread | 47.5 inches
120 cm |
Rear tread | 48 to 68 inches
121 to 172 cm |
