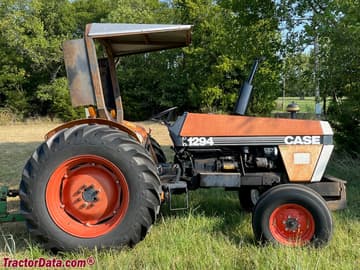

J.I. Case 1294

The J.I. Case 1294 is a tractor produced by J I Case. It is equipped with a 219 ci 3.6 L engine. The rated power output is 62 hp 46.2 kW. Transmission: 12 forward and 4 reverse. Operating weight: 6320 to 7000 pounds.

Overview

	1983 - 1984 94 SeriesUtility tractor
1983 - 1984
94 Series
Utility tractor

Production
Manufacturer	J.I. Case
Utility tractor
Built in Meltham Mills, Huddersfield, England
Original price	$21,200 (1984)

J.I. Case 1294 Engine
J.I. Case 3.6L 4-cyl diesel
Fuel tank	26.4 gal 99.9 L
Engine details ...

J.I. Case 1294 Transmission
12-speed synchromesh
Transmission details ...

J.I. Case 1294 Power
Engine	62 hp 46.2 kW
PTO (claimed)	56 hp 41.8 kW

Mechanical
Two- or four-wheel drive
Differential lock	mechanical rear
Steering	hydrostatic power
Drum brakes
Cab standard.

Hydraulics
Type	open center
Pressure	2460 psi 169.6 bar
Valves	1 to 3
Pump flow	7.1 gpm 26.9 lpm
Steering flow	7.7 gpm 29.1 lpm

Tractor hitch
Rear Type	II/I
Rear lift (at 24"/610mm)	2,970 lbs 1347 kg

Power Take-off (PTO)
Rear PTO	independent
Rear PTO Type	540/1000

Dimensions & Tires
Wheelbase	83 inches (2WD) 210 cm
	84.25 inches (4WD) 213 cm
Weight	6320 to 7000 pounds
Front tire	7.50-16
Rear tire	13.6-38
Full dimensions and tires ...

Electrical
Ground	negative
Charging system	alternator
Charging amps	45
Battery CCA	420
	550 (heavy-duty)
Battery volts	12
Battery AH	96
	128 (heavy-duty)

References
Models 74L & 56L Farm Loaders published in 1983, by J.I. Case
1194 - 1294 published in 1983, by J.I. Case
94 Series published in 1983, by J.I. Case
1194/1294/1394/1494/1594 Tractors published in 1983, by J.I. Case
The Tractor Specialist Buyers Guide published in 1984, by J.I. Case
Tractor & Loaders Buyers Guide published in 1985, by J.I. Case

Engine

Engine Detail — 219 ci / 3.6 L Diesel

Manufacturer	J.I. Case
Fuel Type	Diesel
Configuration	4-cylinder, liquid-cooled
Displacement	219 ci 3.6 L
Bore/Stroke	3.937x4.50 inches 100 x 114 mm
Power	62 hp 46.2 kW
Compression	17:1
Rated RPM	2200
Torque	164.5 lb-ft 223.1 Nm
Torque RPM	1250
Starter volts	12
Oil capacity	7.8 qts 7.4 L
Coolant capacity	14.4 qts 13.6 L

Transmission

Transmission — 12 forward and 4 reverse synchromesh

Type	synchromesh
Gears	12 forward and 4 reverse
Oil capacity	28.9 qts 27.4 L

Dimensions

J.I. Case 1294 Tires
Ag front	7.50-16 (2WD)
	12.4-24 (4WD)
Ag rear	13.6-38
	13.6-36

Dimensions
Wheelbase	83 inches (2WD) 210 cm
	84.25 inches (4WD) 213 cm
Width	70 inches 177 cm
Height (cab)	99 inches 251 cm
Ground clearance	13.5 inches (4WD) 34 cm
	15 inches (2WD) 38 cm
Front tread	52 to 72 inches 132 to 182 cm (2WD)
Front tread	60 to 76 inches 152 to 193 cm (4WD)
Rear tread	56 to 80 inches 142 to 203 cm

J.I. Case 1294 Weight
	6,320 lbs (2WD) 2866 kg
	7,000 lbs (4WD) 3175 kg
Max capacity	10,000 lbs 4536 kg
Max front axle	4,500 lbs (2WD) 2041 kg
	5,000 lbs (4WD) 2268 kg
Max rear axle	9,000 lbs 4082 kg
