j i case 1896
 | 1984 - 1985
96 SeriesRow-Crop tractor | 1984 - 1985 | 96 Series | Row-Crop tractor |
|---|---|---|---|---|
1984 - 1985 | ||||
96 Series | ||||
Row-Crop tractor | ||||
1984 - 1985 | |
|---|---|
96 Series | |
Row-Crop tractor |
Series map: 1896↑ 1985-198918962096105.6hp*128.9hp**Estimated engine power for comparison only.
Note: the J.I. Case model 1896 is the same as the CaseIH 1896. The following data is from the 1896 listing. |
|---|
Engine Detail | |
|---|---|
CDC | |
turbocharged diesel | |
6-cylinder | |
liquid-cooled | |
Displacement | 359 ci
5.9 L |
Bore/Stroke | 4.016x4.724 inches
102 x 120 mm |
Air cleaner | dual dry elements |
Compression | 17.5:1 |
Rated RPM | 2100 |
Idle RPM | 800-2250 |
Starter volts | 12 |
Oil capacity | 16 qts
15.1 L |
Coolant capacity | 22 qts
20.8 L |

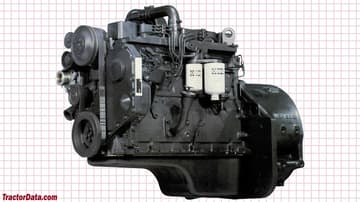

J.I. Case 1896 Engine | |
|---|---|
 |
