j i case 1896
 | 1984 - 1985
96 SeriesRow-Crop tractor | 1984 - 1985 | 96 Series | Row-Crop tractor |
|---|---|---|---|---|
1984 - 1985 | ||||
96 Series | ||||
Row-Crop tractor | ||||
1984 - 1985 | |
|---|---|
96 Series | |
Row-Crop tractor |
Series map: 1896↑ 1985-198918962096105.6hp*128.9hp**Estimated engine power for comparison only.
Note: the J.I. Case model 1896 is the same as the CaseIH 1896. The following data is from the 1896 listing. |
|---|
Nebraska Tractor Test 1548 | ||
|---|---|---|
 | | |
| ||
|
|---|
Nebraska Tractor Test 1548 | |
|---|---|
Diesel 12-speed 2WD
October 24 - November 7, 1984
Link: Nebraska Tractor Test 1548 file | |
PTO performance | |
Power at rated engine speed | 95.92 hp
71.5 kW |

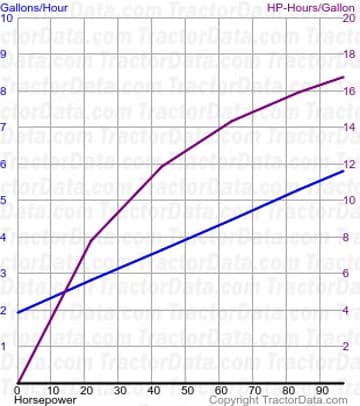

Fuel use | 5.7 gal/hour
21.6 l/hour |
Drawbar performance | |
Max power | 84.51 hp
63.0 kW |
Fuel use | 5.7 gal/hour
21.6 l/hour |
Gear 3-2 used for power test. | |
Max pull | 12,357 lbs
5605 kg |
Gear 1-2 used for pull test. | |
