j i case 2470
 | 1972 - 1979
Four-wheel Drive (4WD) tractor | 1972 - 1979 | Four-wheel Drive (4WD) tractor |
|---|---|---|---|
1972 - 1979 | |||
Four-wheel Drive (4WD) tractor | |||
1972 - 1979 | |
|---|---|
Four-wheel Drive (4WD) tractor |
Transmission | |
|---|---|
Transmission | Range Power Shift |
Type | partial power shift |
Gears | 12 forward and 2 reverse |
Clutch | hydraulic wet disc |
Four ranges (1-4) with three power shift gears (1-3), plus reverse (R) in each range. | |

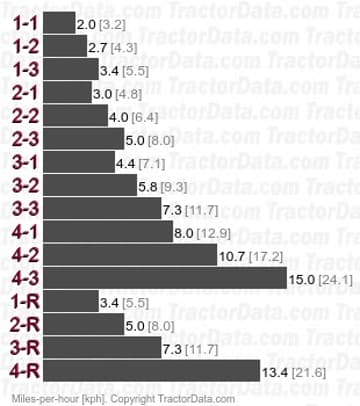

Speeds | |
|---|---|
 |

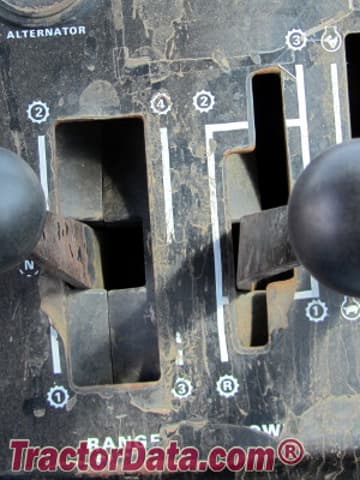

Shift Pattern | |
|---|---|
 |
