JCB 125-65

The JCB 125-65 is a tractor produced by Jcb. It is equipped with a 365.2 ci 6.0 L engine. The rated power output is 121 hp 90.2 kW. Transmission: 18 forward and 6 reverse. Drive type: 4x4 4WD. Operating weight: 13885 lbs 6298 kg.

Overview

	1992 - 1993 Four-wheel Drive (4WD) tractor
1992 - 1993
Four-wheel Drive (4WD) tractor

Production
Manufacturer	JCB
Four-wheel Drive (4WD) tractor
Built in Rocester, England

Variants
130	German designation

JCB 125-65 Engine
Perkins 6.0L 6-cyl diesel
Engine details ...

JCB 125-65 Transmission
18-speed synchromesh
Transmission details ...

JCB 125-65 Power
Engine	121 hp 90.2 kW

Mechanical
Drive	4x4 4WD
Final drives	outboard planetary
Differential lock	electro-hydraulic front and rear
Power steering
Pneumo-hydraulic dry disc brakes
Trailer brakes	pneumatic
	hydraulic
Cab standard with air-conditioning.

Capacity
Fuel	74 gal 280.1 L
Hydraulic system	15.9 gal 60.2 L

Hydraulics
Capacity	15.9 gal 60.2 L
Pressure	3045 psi 210.0 bar
Valves	2
Pump flow	15.9 gpm 60.2 lpm

Tractor hitch
Rear Type	IIIN/III
Control	position and electronic draft control
Rear lift (at ends)	12122 lbs 5498 kg
	14332 lbsOptOptional 6500 kg
Front Hitch	II OptOptional
Front lift (at ends)	6174 lbs 2800 kg

Power Take-off (PTO)
Rear PTO	independent
Rear PTO Type	540/1000 (1.375)
	1000 (1.75)OptOptional
Engine RPM	540@1894
	540E@1311@1000@2428

Dimensions & Tires
Wheelbase	118.4 inches 300 cm
Weight	13885 lbs 6298 kg
Front tire	445/70R24
Rear tire	445/70R24
Full dimensions and tires ...

References
Fastrac 125-65 and 145T-65 Turbo published in 1992, by John Deere

Engine

Engine Detail — 365.2 ci / 6.0 L Diesel

Manufacturer	Perkins 1000-6
Fuel Type	Diesel
Configuration	6-cylinder, liquid-cooled
Displacement	365.2 ci 6.0 L
Bore/Stroke	3.94x5.00 inches 100 x 127 mm
Power	121 hp 90.2 kW
Fuel system	direct injection
Air cleaner	dual dry element
Rated RPM	2600
Torque	310 lb-ft 420.4 Nm
Torque RPM	1400
Starter type	electric
Oil capacity	13.2 qts 12.5 L
Coolant capacity	26.4 qts 25.0 L

Transmission

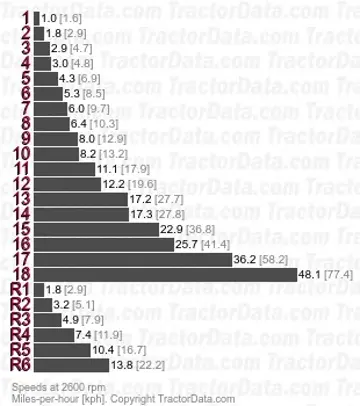

Transmission — 18 forward and 6 reverse synchromesh

Type	synchromesh
Gears	18 forward and 6 reverse
Clutch	350mm dry disc
Six gears, plus reverse, in three ranges.
With 495/70xR24 tires.

Dimensions

JCB 125-65 Tires
Ag front	445/70R24
Ag rear	445/70R24
Ag front	495/70R24
	480/70R30
Ag rear	495/70R24
	480/70R30

Dimensions
Wheelbase	118.4 inches 300 cm
Length	227 inches 576 cm
Width	98 inches 248 cm
Height (cab)	114 inches 289 cm
Height (exhaust)	110 inches 279 cm
Weight	13885 lbs 6298 kg
Front tread	74 inches 187 cm
Rear tread	74 inches 187 cm

Photos

JCB 125-65 tractor photo
