JCB 145T-65
The JCB 145T-65 is a tractor produced by Jcb. It is equipped with a 365.2 ci 6.0 L engine. The rated power output is 147 hp 109.6 kW. Transmission: 18 forward and 6 reverse. Drive type: 4x4 4WD. Operating weight: 13885 lbs 6298 kg.
Engine Power
147 hp
109.6 kW
Drive & Traction
4x4 4WD
Fuel & Capacities
74 gal
280.1 L
Transmission
18 forward and 6 reverse
Operating Weight
13885 lbs
6298 kg
Jcb 145T-65 Serial Number & Year Decoder
Find the exact manufacture year of your tractor by checking your chassis serial number below.
Where to Find the Serial NumberThe serial number plate is commonly located on the front frame, tractor transmission housing (right side), or instrument panel badge.
Overview
 | 1992 - 1993
Four-wheel Drive (4WD) tractor |
|---|---|
1992 - 1993 | |
Four-wheel Drive (4WD) tractor | |
Production | |
|---|---|
Manufacturer | JCB |
Four-wheel Drive (4WD) tractor | |
Built in Rocester, England | |
Variants | |
|---|---|
150 | German designation |
JCB 145T-65 Engine | |
|---|---|
Perkins 6.0L 6-cyl diesel | |
Engine details ...  |
JCB 145T-65 Transmission | |
|---|---|
18-speed synchromesh | |
Transmission details ...  |
JCB 145T-65 Power | |
|---|---|
Engine | 147 hp
109.6 kW |
Mechanical | |
|---|---|
Drive | 4x4 4WD |
Final drives | outboard planetary |
Differential lock | electro-hydraulic front and rear |
Power steering | |
Pneumo-hydraulic dry disc brakes | |
Trailer brakes | pneumatic |
hydraulic | |
Cab standard with air-conditioning. | |
Capacity | |
|---|---|
Fuel | 74 gal
280.1 L |
Hydraulic system | 15.9 gal
60.2 L |
Hydraulics | |
|---|---|
Capacity | 15.9 gal
60.2 L |
Pressure | 3045 psi
210.0 bar |
Valves | 2 |
Pump flow | 15.9 gpm
60.2 lpm |
Tractor hitch | |
|---|---|
Rear Type | IIIN/III |
Control | position and electronic draft control |
Rear lift (at ends) | 12122 lbs
5498 kg |
14332 lbsOptOptional
6500 kg | |
Front Hitch | II OptOptional |
Front lift (at ends) | 6174 lbs
2800 kg |
Power Take-off (PTO) | |
|---|---|
Rear PTO | independent |
Rear PTO Type | 540/1000 (1.375) |
1000 (1.75)OptOptional | |
Engine RPM | 540@1894 |
540E@1311@1000@2428 | |
Dimensions & Tires | |
|---|---|
Wheelbase | 118.4 inches
300 cm |
Weight | 13885 lbs
6298 kg |
Front tire | 445/70R24 |
Rear tire | 445/70R24 |
Full dimensions and tires ...  | |
References | |
|---|---|
 | |
Fastrac 125-65 and 145T-65 Turbo published in 1992, by John Deere |
Engine
Engine Detail — 365.2 ci / 6.0 L Diesel
Manufacturer | Perkins 1000-6T |
Configuration | turbocharged diesel, 6-cylinder, liquid-cooled |
Displacement | 365.2 ci
6.0 L |
Bore/Stroke | 3.94x5.00 inches
100 x 127 mm |
Power | 147 hp
109.6 kW |
Fuel system | direct injection |
Air cleaner | dual dry element |
Rated RPM | 2600 |
Torque | 379 lb-ft
513.9 Nm |
Torque RPM | 1600 |
Starter type | electric |
Oil capacity | 13.2 qts
12.5 L |
Coolant capacity | 26.4 qts
25.0 L |
Transmission

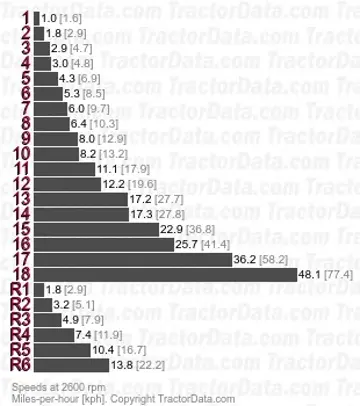

Transmission — 18 forward and 6 reverse synchromesh
Type | synchromesh |
Gears | 18 forward and 6 reverse |
Clutch | 350mm dry disc |
Six gears, plus reverse, in three ranges. | |
With 495/70R24 tires. | |
 | |
Dimensions
JCB 145T-65 Tires | |
|---|---|
Ag front | 445/70R24 |
Ag rear | 445/70R24 |
Ag front | 495/70R24 |
480/70R30 | |
Ag rear | 495/70R24 |
480/70R30 | |
Dimensions | |
|---|---|
Wheelbase | 118.4 inches
300 cm |
Length | 227 inches
576 cm |
Width | 98 inches
248 cm |
Height (cab) | 114 inches
289 cm |
Height (exhaust) | 110 inches
279 cm |
Weight | 13885 lbs
6298 kg |
Front tread | 74 inches
187 cm |
Rear tread | 74 inches
187 cm |
Photos
JCB 145T-65
JCB 145T-65
JCB 145T-65
