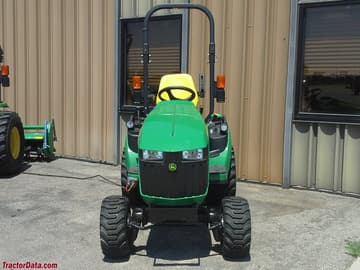

John Deere 1025R

The John Deere 1025R is a tractor produced by John Deere. It is equipped with a 77.2 ci 1.3 L engine. The listed engine power is Diesel (listed): 23.8 hp / 17.7 kW; Diesel (listed): 1.6 hp / 1.2 kW. Transmission: infinite forward and reverse (2-range). Operating weight: 610 lbs 276 kg.

Overview

	2013 - 1 Sub-Compact SeriesSub-Compact Utility tractor
2013 -
1 Sub-Compact Series
Sub-Compact Utility tractor

Production
Manufacturer	John Deere
Sub-Compact Utility tractor
Built in Augusta, Georgia, USA
Original price	$13,361 (2013 )
	$14,301 (2019 )

John Deere 1025R Engine
Yanmar 1.3L 3-cyl diesel
Engine details ...

John Deere 1025R Transmission
hydrostatic
Transmission details ...

John Deere 1025R Power
Engine	23.8 hp 17.7 kW
PTO (claimed)	18 hp 13.4 kW

Mechanical
Four-wheel drive
Final drives	spur gear
Differential lock	mechanical rear
Power steering
Wet disc brakes
Two-post foldable ROPS on semi-flat platform.

Capacity
Fuel	5.6 gal 21.2 L
Hydraulic system	3.25 gal 12.3 L
Front axle	2.5 qts 2.4 L

Hydraulics
Type	open center
Capacity	3.25 gal 12.3 L
Pressure	2000 psi 137.9 bar
Valves	2 or 3
Pump flow	3.5 gpm 13.2 lpm
Total flow	6.3 gpm 23.8 lpm
Steering flow	2.8 gpm 10.6 lpm

Tractor hitch
Rear Type	I (limited)
Control	position control
Rear lift (at 24"/610mm)	681 lbs 308 kg

Power Take-off (PTO)
Rear PTO	independent
Clutch	wet disc
Rear PTO Type	540
Engine RPM	540@3200
Mid PTO	independent
Mid PTO Type	2100
Engine RPM	2100@3200

Dimensions & Tires
Wheelbase	57.1 inches 145 cm
Weight	1444 lbs 654 kg
Full dimensions and tires ...

Electrical
Ground	negative
Charging system	alternator
Battery CCA	500
Battery volts	12

References
1 Family published in 2016, by John Deere
1 Series published in 2019, by John Deere

Engine

Engine Detail — 77.2 ci / 1.3 L Diesel

Manufacturer	Yanmar 3TNV80
Fuel Type	Diesel
Configuration	3-cylinder, liquid-cooled
Displacement	77.2 ci 1.3 L
Bore/Stroke	3.15x3.31 inches 80 x 84 mm
Emissions	Tier 4
Power	23.8 hp 17.7 kW
Fuel system	indirect injection
Air cleaner	dry
Pre-heating	glow plugs
	block heater OptOptional
	coolant heater OptOptional
Compression	23.5:1
Rated RPM	3200
Operating RPM	1575-3370
Torque	40.7 lb-ft 55.2 Nm
Torque RPM	3200
Starter	electric
Starter volts	12
Starter power	1.6 hp 1.2 kW
Coolant capacity	3.9 qts 3.7 L
Oil capacity	2.9 qts 2.7 L
Oil change	200 h

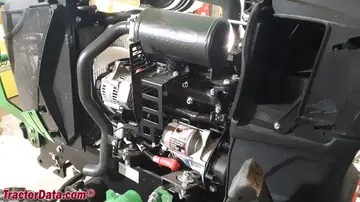

John Deere 1025R Engine

Transmission

Transmission — infinite forward and reverse (2-range) hydrostatic

Type	hydrostatic
Gears	infinite forward and reverse (2-range)
Oil capacity	13 qts 12.3 L

Dimensions

John Deere 1025R Tires
Lawn/turf front	18x8.50-10
Lawn/turf rear	26x12-12
Industrial front	18x8.50-10
Industrial rear	26x12-12

Dimensions
Wheelbase	57.1 inches 145 cm
Length	87.6 inches 222 cm
	102.6 inches (with hitch) 260 cm
	177 inches (loader-backhoe) 449 cm
Width	47.2 inches (R3 tires) 119 cm
Height (hood)	41.5 inches 105 cm
Height (ROPS)	86.2 inches 218 cm
Shipping weight	1444 lbs 654 kg
Clearance (front axle)	7.7 inches 19 cm
Flanged rear axle
Front tread	32.2 inches 81 cm
Rear tread	35.2 inches 89 cm

Attachments

Attachment overview
54" mid-mount mower deck
60" mid-mount mower deck
Snowblower
Blade
John Deere D120 loader
John Deere H120 loader
Backhoe

John Deere 260 Backhoe
Backhoe type	John Deere 260 Backhoe
Weight	610 lbs 276 kg
Digging depth	74 inches 187 cm
Reach from pivot	104 inches 264 cm
Swing Arc	150°
Bucket force	2036 lbs 923 kg
Dipperstick force	1187 lbs 538 kg
