john deere 1070
![]() | 1989 - 1998
70 Compact SeriesCompact Utility tractorYanmar built | 1989 - 1998 | 70 Compact Series | Compact Utility tractor | Yanmar built |
|---|---|---|---|---|---|
1989 - 1998 | |||||
70 Compact Series | |||||
Compact Utility tractor | |||||
Yanmar built | |||||
1989 - 1998 | |
|---|---|
70 Compact Series | |
Compact Utility tractor | |
Yanmar built |
Engine Detail | |
|---|---|
Yanmar 4TN84 | |
diesel | |
4-cylinder | |
liquid-cooled | |
Displacement | 116.3 ci
1.9 L |
Bore/Stroke | 3.31x3.39 inches
84 x 86 mm |
Power (net) | 35 hp
26.1 kW |
Power (gross) | 38.5 hp
28.7 kW |
Fuel system | direct injection |
Air cleaner | dry |
Pre-heating | air intake heater |
Compression | 17.8:1 |
Rated RPM | 2600 |
Idle RPM | 800-2875 |
Starter volts | 12 |
Coolant capacity | 6.1 qts
5.8 L |

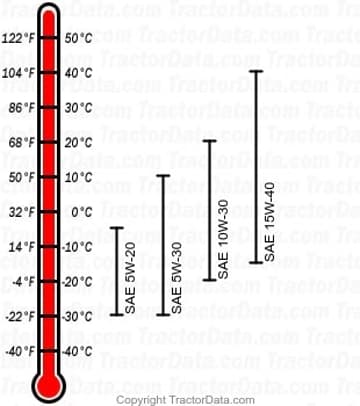

Engine Oil | |
|---|---|
![]() | |
Oil capacity | 5.6 qts
5.3 L |
Oil change | 200 h |
