John Deere 1070
 | 1989 - 1998
70 Compact SeriesCompact Utility tractorYanmar built |
|---|---|
1989 - 1998 | |
70 Compact Series | |
Compact Utility tractor | |
Yanmar built | |
1989 - 1998 | |
|---|---|
70 Compact Series | |
Compact Utility tractor | |
Yanmar built |
Transmission | |
|---|---|
Type | partially synchronized |
Gears | 9 forward and 3 reverse |
Clutch | 225mm dry disc |
Oil capacity | 22 qts*Transmission capacity is 22 quarts, according to the manual. Owners report actual capacity as 36 quarts to reach the fill mark on the dipstick.
20.8 L |
Three speeds, plus reverse, in three ranges. Speeds may be shifted on the move. Tractor must be stopped to shift ranges. | |

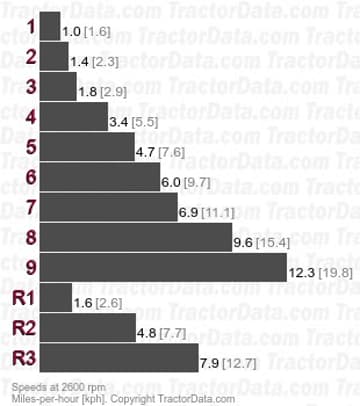

Speeds | |
|---|---|
With 13.6-28 rear tires. | |
 |

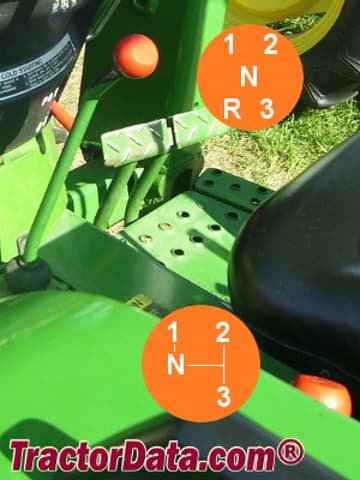

Shift Pattern | |
|---|---|
 |
