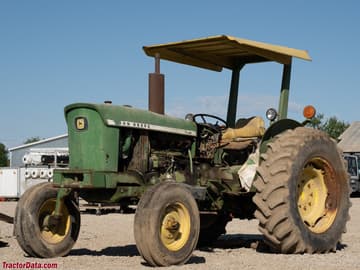

John Deere 1630

The John Deere 1630 is a tractor produced by John Deere. It is equipped with a 179 ci 2.9 L engine. The listed engine power is Diesel (net): 56 hp / 41.8 kW; Diesel (gross): 59 hp / 44.0 kW. Transmission: 16 forward and 8 reverse. Operating weight: 4780 lbs 2168 kg.

Overview

	1973 - 1979 Utility tractor

Production
Manufacturer	John Deere
Utility tractor
Factories	Mannheim, Baden-Württemberg, Germany
	Getafe, Spain

John Deere 1630 Engine
John Deere 2.9L 3-cyl diesel
Engine details ...

John Deere 1630 Power
Engine (gross)	59 hp 44.0 kW
Engine (net)	56 hp 41.8 kW
PTO (claimed)	50 hp 37.3 kW

Mechanical
Two- or four-wheel drive
Final drives	planetary
Differential lock	mechanical rear
Steering	manual
Steering	power OptOptional
Hydraulic wet disc brakes
Open operator station. ROPS and cab available.

Capacity
Fuel	16.5 gal 62.5 L
Hydraulic system	9.5 gal 36.0 L

Hydraulics
Type	closed center
Capacity	9.5 gal 36.0 L
Pressure	2050 psi 141.3 bar

Tractor hitch
Rear Type	II/I
Control	position control and lower-link draft sensing
Rear lift	4100 lbs 1859 kg

Power Take-off (PTO)
Rear PTO	live
	independent OptOptional
Rear PTO Type	540 (1.375)
Engine RPM	540@2100

Dimensions & Tires
2WD Wheelbase	80.1 inches 203 cm
Weight	4780 lbs 2168 kg
Front tire	7.50-16
2WD Rear tire	13.6-36
Full dimensions and tires ...

Electrical
Ground	negative
Charging system	alternator
Charging amps	28
Charging volts	14
Batteries	2
Battery volts	12

References
Operator's Manual 145 Loader (OMW21474)
Operator's Manual 1020, 1120 and 1630 Tractors published by John Deere
1630 Tractor published in 1977, by John Deere
Tractors 40 to 80 hp published in 1978, by John Deere
Product Information Manual published in 1975, by John Deere
Product Information Manual published in 1977, by John Deere

Engine

Engine Detail — 179 ci / 2.9 L Diesel

Manufacturer	John Deere 3179DL-01
Fuel Type	Diesel
Configuration	3-cylinder, liquid-cooled
Displacement	179 ci 2.9 L
Bore/Stroke	4.19x4.33 inches 106 x 110 mm
Power (net)	56 hp 41.8 kW
Power (gross)	59 hp 44.0 kW
Fuel system	direct injection
Air cleaner	dry
Compression	16.2:1
Rated RPM	2500
Idle RPM	800-2650
Operating RPM	1400-2500
Torque	138.7 lb-ft 188.1 Nm
Torque RPM	1300
Starter	electric
Starter volts	12
Oil capacity	6 qts 5.7 L
Coolant capacity	12.1 qts 11.5 L

Transmission

Transmission options
8-speed partially synchronized
16-speed two-speed power shift

Transmission — 8 forward and 4 reverse partially synchronized

Type	partially synchronized
Gears	8 forward and 4 reverse
Clutch	dry disc
Four synchronized gear in two ranges, plus reverse range. Tractor must be stopped, and clutch used, to shift range.

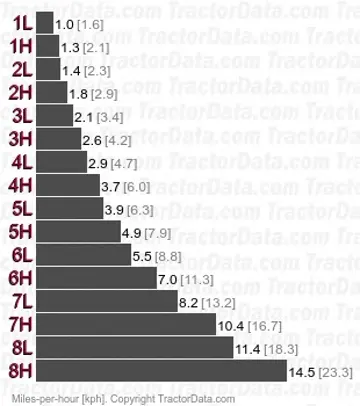

Transmission — 16 forward and 8 reverse two-speed power shift

Type	two-speed power shift
Gears	16 forward and 8 reverse
Four gears (1-4) in two ranges (I/II) plus reverse (R) range. Left-hand power shift lever on dash.

Dimensions

John Deere 1630 Tires
2WD Standard tires (ag)	Front: 7.50-16. Rear: 13.6-36
4WD Standard tires (ag)	Front: 9.50-24. Rear: 13.6-36
Ag front	6.50-16
Ag rear	16.9/14-28
	16.9/14-30
	12.4/11-36

Dimensions
2WD Wheelbase	80.1 inches 203 cm
Length	141.7 inches 359 cm
Width	76.6 inches 194 cm
Height (ROPS)	97 inches 246 cm
Height (exhaust)	87.4 inches 221 cm
Shipping weight	4780 lbs 2168 kg
2WD Clearance (front axle)	20 inches 50 cm
Front tread	49.5 to 81 inches 125 to 205 cm
Rear tread	57 to 77 inches 144 to 195 cm
