John Deere 1745F

The John Deere 1745F is a tractor produced by John Deere. It is equipped with a 179.4 ci 2.9 L engine. The rated power output is 47.3 hp 35.3 kW. Transmission: 16 forward and 8 reverse. Operating weight: 4057 to 4641 pounds.

Overview

	1987 - 1990 45F SeriesOrchard/Vineyard tractorGoldoni built
1987 - 1990
45F Series
Orchard/Vineyard tractor
Goldoni built

1987 - 1990
45F Series
Orchard/Vineyard tractor
Goldoni built

Production
Distributor	John Deere
Manufacturer	Goldoni
Orchard/Vineyard tractor
Built in Italy

John Deere 1745F Engine
John Deere 2.9L 3-cyl diesel
Fuel tank	10.6 gal 40.1 L
Engine details ...

John Deere 1745F Power
Engine	47.3 hp 35.3 kW

Mechanical
Two- or four-wheel drive
Differential lock	mechanical rear
Power steering
Mechanical wet disc brakes
Two-post mid-mount folding ROPS. Quick-mount cab available.

Hydraulics
Type	open center
Pressure	2611 psi 180.0 bar
Rear valves	3
Mid valves	3
Pump flow	8.7 gpm 32.9 lpm
	17.4 gpmOptOptional 65.9 lpm

Tractor hitch
Rear Type	IIN/I
Control	top-link draft sensing
Rear lift (at 24"/610mm)	3197 lbs 1450 kg

Power Take-off (PTO)
Rear PTO	independent
Rear PTO Type	540/1000 (1.375)
Engine RPM	540@2165
	540E@1624

Dimensions & Tires
Wheelbase	72.2 inches 183 cm
Weight	4057 to 4641 pounds
Front tire	7.00-12
2WD Low-Profile Rear tire	12.4-24
Full dimensions and tires ...

Electrical
Ground	negative
Charging system	alternator
Charging amps	35
Battery volts	12
Battery AH	100

References
Orchard Tractors published in 1989, by John Deere

Engine

	1987 - 1990 45F SeriesOrchard/Vineyard tractorGoldoni built
1987 - 1990
45F Series
Orchard/Vineyard tractor
Goldoni built

1987 - 1990
45F Series
Orchard/Vineyard tractor
Goldoni built

Engine Detail — 179.4 ci / 2.9 L Diesel

Manufacturer	John Deere
Fuel Type	Diesel
Configuration	3-cylinder, liquid-cooled
Displacement	179.4 ci 2.9 L
Bore/Stroke	4.19x4.33 inches 106 x 110 mm
Power	47.3 hp 35.3 kW
Air cleaner	dry
Rated RPM	2300
Torque	132.8 lb-ft 180.1 Nm
Torque RPM	1400
Starter	electric
Starter volts	12
Oil change	200 h

John Deere 1745F Engine

Transmission

	1987 - 1990 45F SeriesOrchard/Vineyard tractorGoldoni built
1987 - 1990
45F Series
Orchard/Vineyard tractor
Goldoni built

1987 - 1990
45F Series
Orchard/Vineyard tractor
Goldoni built

Transmission options
8-speed synchronized
16-speed creeper

Transmission — 8 forward and 4 reverse synchronized

Type	synchronized
Gears	8 forward and 4 reverse
Four gears in two ranges, plus reverse range.

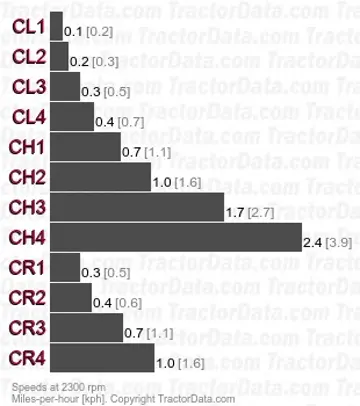

Transmission
Type	creeper
Gears	16 forward and 8 reverse

Dimensions

	1987 - 1990 45F SeriesOrchard/Vineyard tractorGoldoni built
1987 - 1990
45F Series
Orchard/Vineyard tractor
Goldoni built

1987 - 1990
45F Series
Orchard/Vineyard tractor
Goldoni built

John Deere 1745F Tires
2WD Low-Profile Standard tires (ag)	Front: 7.00-12. Rear: 12.4-24
4WD Low-Profile Standard tires (ag)	Front: 9.00/75-16. Rear: 12.4-24
2WD High-Profile Standard tires (ag)	Front: 7.50-16. Rear: 12.4-28
4WD High-Profile Standard tires (ag)	Front: 8.25-16. Rear: 13.6-24

Dimensions
Wheelbase	72.2 inches 183 cm
Length	122.1 inches 310 cm
Width	51.7 inches 131 cm
2WD Low-Profile Ground clearance	13.8 inches 35 cm
4WD Low-Profile Ground clearance	9.5 inches 24 cm
2WD High-Profile Ground clearance	17.7 inches 44 cm
4WD High-Profile Ground clearance	14.6 inches 37 cm
2WD Front tread	45.1 to 57 inches 114 to 144 cm
4WD Front tread	44.3 to 58.9 inches 112 to 149 cm
Rear tread	39.3 to 58 inches 99 to 147 cm

John Deere 1745F Weight
2WD ROPS	4057 lbs 1840 kg
2WD Cab	4310 lbs 1955 kg
4WD ROPS	4387 lbs 1989 kg
4WD Cab	4641 lbs 2105 kg
Max capacity	7496 lbs 3400 kg

John Deere 1745F Height
Low-Profile Steering wheel	49.2 inches 124 cm
High-Profile Steering wheel	52.8 inches 134 cm
Low-Profile ROPS	78.7 inches 199 cm
High-Profile ROPS	81.7 inches 207 cm
Low-Profile Cab	78.8 inches 200 cm
High-Profile Cab	81.6 inches 207 cm
