John Deere 2025R

The John Deere 2025R is a tractor produced by John Deere. It is equipped with a 77.3 ci 1.3 L engine. The listed engine power is Diesel (listed): 25 hp / 18.6 kW; Diesel (gross): 24.2 hp / 18.0 kW; Diesel (listed): 1.6 hp / 1.2 kW. Transmission: infinite forward and reverse (2-range). Operating weight: 1660 lbs 752 kg.

Overview

	2013 - 2025 Model year 2013-20162017-2025 2R SeriesCompact Utility tractor 2R Series Compact Utility tractor

Production
Manufacturer	John Deere
Compact Utility tractor
Built in Augusta, Georgia, USA
Original price	$14,434 (2013 )
	$15,348 (2014 )

John Deere 2025R Engine
Yanmar 1.3L 3-cyl diesel
Engine details ...

John Deere 2025R Transmission
hydrostatic
Transmission details ...

John Deere 2025R Power
Engine (gross)	24.2 hp 18.0 kW
Engine	25 hp 18.6 kW
PTO (claimed)	18 hp 13.4 kW

Mechanical
Four-wheel drive
Final drives	spur gear
Differential lock	standard
Power steering
Wet disc brakes
Two-post foldable ROPS.

Capacity
Fuel	6.1 gal 23.1 L
Hydraulic system	2.6 gal 9.8 L
Front axle	0.9 qts 0.9 L

Hydraulics
Type	open center
Capacity	2.6 gal 9.8 L
Pressure	2421 psi 166.9 bar
Pump flow	3.4 gpm 12.9 lpm
Total flow	5.6 gpm 21.2 lpm
Steering flow	2.2 gpm 8.3 lpm

Tractor hitch
Rear Type	I
Control	position control
Rear lift (at ends)	1433 lbs 650 kg
Rear lift (at 24"/610mm)	1150 lbs 521 kg

Power Take-off (PTO)
Rear PTO	independent
Clutch	wet disc
Rear PTO Type	540
Mid PTO	independent
Mid PTO Type	2000

Dimensions & Tires
Wheelbase	63 inches 160 cm
Weight	1660 lbs 752 kg
Full dimensions and tires ...

Electrical
Ground	negative
Charging system	alternator
Charging amps	20
Charging volts	12
Battery CCA	500
Battery volts	12

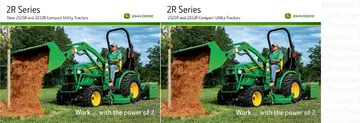

References
2R Series published in 2013, by John Deere
2R Series published in 2015, by John Deere

Engine

Engine Detail — 77.3 ci / 1.3 L Diesel

Manufacturer	Yanmar 3TNV80
Fuel Type	Diesel
Configuration	3-cylinder, liquid-cooled
Displacement	77.3 ci 1.3 L
Bore/Stroke	3.15x3.31 inches 80 x 84 mm
Power	25 hp 18.6 kW
Rated Power (gross)	24.2 hp 18.0 kW
Fuel system	indirect injection
Air cleaner	dual stage dry
Compression	23.4:1
Rated RPM	3000
Starter	electric
Starter volts	12
Starter power	1.6 hp 1.2 kW
Coolant capacity	3.4 qts 3.2 L
Oil capacity	3.4 qts 3.2 L
Oil change	200 h

Transmission

Transmission — infinite forward and reverse (2-range) hydrostatic

Type	hydrostatic
Gears	infinite forward and reverse (2-range)
Oil capacity	10.4 qts 9.8 L
Oil type	Deere Hy-Gard

	Deere Hy-Gard

Dimensions

John Deere 2025R Tires
Industrial front	23x8.5-12
Industrial rear	31x12-16.5

Dimensions
Wheelbase	63 inches 160 cm
Length	109.2 inches 277 cm
Width	37 inches*Minimum width 93 cm
	51 inches 129 cm
Clearance (front axle)	12.5 inches 31 cm
Flange rear axle
Front tread	31.1 inches 78 cm

John Deere 2025R Weight
Shipping	1660 lbs 752 kg
Max Drawbar	562 lbs 254 kg
Max front axle	1940 lbs 879 kg
Max rear axle	2426 lbs 1100 kg

John Deere 2025R Height
Hood	47.2 inches 119 cm
ROPS	89 inches 226 cm
	66.8 inches (folded) 169 cm

Attachments

Attachment overview
54" mid-mount mower deck
62" mid-mount mower deck
Snowblower
Blade
Front-end loader
Backhoe

John Deere 270A Backhoe
Backhoe type	John Deere 270A Backhoe
