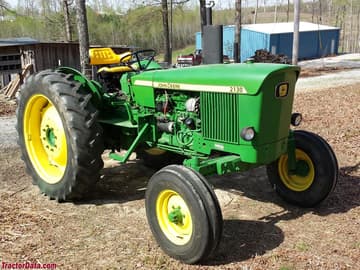

John Deere 2130

The John Deere 2130 is a tractor produced by John Deere. It is equipped with a 239 ci 3.9 L engine. The listed engine power is Diesel (net): 73.8 hp / 55.0 kW; Diesel (gross): 79.1 hp / 59.0 kW. Transmission: Hi-Lo. Drive type: 4x2 2WD. Operating weight: 5980 lbs 2712 kg.

Overview

	1973 - 1977 Utility tractor

Production
Manufacturer	John Deere
Utility tractor
Built in Mannheim, Baden-Württemberg, Germany

John Deere 2130 Engine
John Deere 3.9L 4-cyl diesel
Fuel tank	23.8 gal 90.1 L
Engine details ...

John Deere 2130 Power
Engine (gross)	79.1 hp 59.0 kW
Engine (net)	73.8 hp 55.0 kW
PTO (claimed)	60.4 hp 45.0 kW

Mechanical
Drive	4x2 2WD
	4x4 HFWD 4WD
Final drives	planetary
Differential lock	mechanical rear
Steering	manual
Steering	power OptOptional
Hydraulic wet disc brakes
Open operator station. Cab optional.

Hydraulics
Type	closed center
Pressure	2248 psi 155.0 bar
Pump flow	6.6 gpm 25.0 lpm
	12.4 gpmOptOptional 46.9 lpm

Tractor hitch
Rear Type	II
Control	position control and lower-link draft sensing
Rear lift	5560 lbs 2522 kg

Power Take-off (PTO)
Rear PTO	transmission
	independent OptOptional
Rear PTO Type	540 (1.375)
	540/1000 (1.375)OptOptional
Engine RPM	540@2100
	1000@2100

Dimensions & Tires
Wheelbase	85.8 inches 217 cm
Weight	5980 lbs 2712 kg
Rear tire	15.5-38
Full dimensions and tires ...

Electrical
Ground	negative
Charging system	alternator
Charging amps	28
Charging volts	14
Batteries	2
Battery volts	12
Battery AH	55

References
Operator's Manual 145 Loader (OMW21474)
Tractors 1130, 2030, 2130, 3130 published in 1976, by John Deere
Tractors 40 to 80 hp published in 1978, by John Deere
Product Information Manual published in 1975, by John Deere
Product Information Manual published in 1977, by John Deere

Engine

Engine Detail — 239 ci / 3.9 L Diesel

Manufacturer	John Deere
Fuel Type	Diesel
Configuration	4-cylinder, liquid-cooled
Displacement	239 ci 3.9 L
Bore/Stroke	4.19x4.33 inches 106 x 110 mm
Power (net)	73.8 hp 55.0 kW
Power (gross)	79.1 hp 59.0 kW
Fuel system	direct injection
Air cleaner	dry
Compression	16.8:1
Rated RPM	2500
Idle RPM	650-2660
Operating RPM	1400-2500
Torque	181.4 lb-ft 246.0 Nm
Torque RPM	1400
Firing order	1-3-4-2
Starter	electric
Starter volts	12
Coolant capacity	12.1 qts 11.5 L

Transmission

Transmission options
8-speed
16-speed two-speed power shift

Transmission — 8 forward and 4 reverse

Gears	8 forward and 4 reverse
Clutch	dry disc
Oil capacity	26.9 qts (service) 25.5 L
	38 qts (dry) 36.0 L

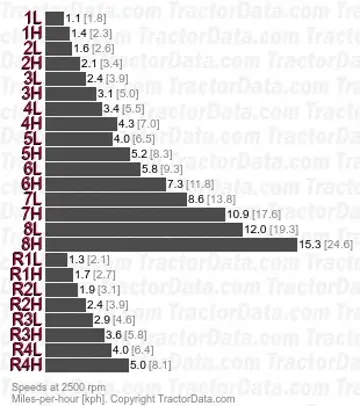

Transmission — Hi-Lo

Transmission	Hi-Lo
Type	two-speed power shift
Gears	16 forward and 8 reverse
Oil capacity	26.9 qts (service) 25.5 L
	38 qts (dry) 36.0 L
With 16.9-34 rear tires.

Dimensions

John Deere 2130 Tires
Ag rear	15.5-38

Dimensions
Wheelbase	85.8 inches 217 cm
Length	139.6 inches 354 cm
Width	80.3 inches*Minimum width. 203 cm
Height	102.4 inches 260 cm
Weight	5980 lbs 2712 kg
Flange rear axle
Rack-and-pinion rear axle
Front tread	53.5 to 73.6 inches 135 to 186 cm
Rear tread	61 to 76.8 inches 154 to 195 cm (flange)
Rear tread	61 to 96.1 inches 154 to 244 cm (rack-and-pinion)
