John Deere 2750

The John Deere 2750 is a tractor produced by John Deere. It is equipped with a 239 ci 3.9 L engine. The rated power output is 75.35 hp 56.2 kW. Transmission: John Deere TSS Creeper. Operating weight: 7500 to 8910 pounds.

Overview

	1983 - 1986 2050 SeriesUtility tractor
1983 - 1986
2050 Series
Utility tractor

Production
Manufacturer	John Deere
Utility tractor
Built in Mannheim, Baden-Württemberg, Germany
Original price	$24,596 (1983 ROPS 2WD )
	$36,941 (1983 Cab 4WD )

Variants
2750	utility chassis
2750 High-Clearance	high-crop
2750 Low-Profile	orchard

John Deere 2750 Engine
John Deere 3.9L 4-cyl diesel
Engine details ...

John Deere 2750 Power
PTO (claimed)	75 hp 55.9 kW
Drawbar (tested)	62.97 hp 47.0 kW
PTO (tested)	75.35 hp 56.2 kW
Performance test details ...

Mechanical
Two- or four-wheel drive
Differential lock	mechanical rear
Power steering
Differential hydraulic wet disc brakes
Two-post ROPS. Canopy available. Sound-Gard cab optional with available heat and air-conditioning.

Capacity
Fuel	26 gal 98.4 L
Hydraulic system	13.2 gal 50.0 L

Hydraulics
Type	closed center
Capacity	13.2 gal 50.0 L
Rear valves	1 or 2
Pump flow	23 gpm 87.1 lpm

Tractor hitch
Rear Type	II/I
Control	load and depth control
Rear lift	3,300 lbs 1496 kg

Power Take-off (PTO)
Rear PTO	independent
Rear PTO Type	540
	540/1000 OptOptional

Dimensions & Tires
2WD Wheelbase	89.2 inches 226 cm
4WD Wheelbase	90 inches 228 cm
Weight	7500 to 8910 pounds
Front tire	7.50-16
Rear tire	18.4-30 (2WD)
Full dimensions and tires ...

Electrical
Ground	negative
Charging system	alternator
Charging amps	55
Battery volts	12

References
Loaders, Spreaders and Blades published in 1984, by John Deere
Tractors 45 to 85 HP published in 1984, by John Deere
Utility Tractors Product Information Handbook published in 1984, by John Deere
Mechanical Front-Wheel Drive published in 1984, by John Deere
Agricultural Price List published in 1983, by John Deere

Engine

Engine Detail — 239 ci / 3.9 L Diesel

Manufacturer	John Deere
Configuration	turbocharged diesel, 4-cylinder, liquid-cooled
Displacement	239 ci 3.9 L
Bore/Stroke	4.19x4.33 inches 106 x 110 mm
Compression	16.8:1
Rated RPM	2500
Starter volts	12
Coolant capacity	3.4 qts 3.2 L

Transmission

Transmission options
8-speed partially synchronized
16-speed partial powershift
12-speed partially synchronized

Transmission — John Deere Top-Shaft Synchronized

Transmission	John Deere Top-Shaft Synchronized
Type	partially synchronized
Gears	8 forward and 4 reverse
Four gears in two ranges, plus reverse range. Synchronized shifting between gears.
With 18.4-30 rear tires.

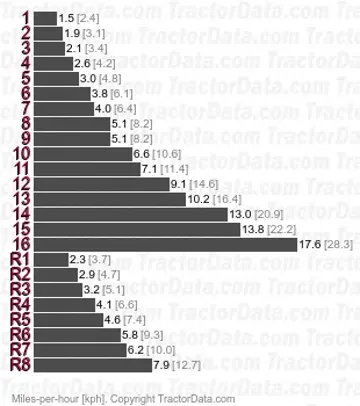

Transmission — John Deere Hi-Lo Top-Shaft Synchronized

Transmission	John Deere Hi-Lo Top-Shaft Synchronized
Type	partial powershift
Gears	16 forward and 8 reverse
Four gears (1-4) in two ranges (I-II) and reverse (R) with two-speed power shift (rabbit/turtle).

Transmission — John Deere TSS Creeper

Transmission	John Deere TSS Creeper
Type	partially synchronized
Gears	12 forward and 8 reverse
Adds a creeper to the low and reverse ranges of the Top-Shaft Synchronized transmission.
With 18.4-34 rear tires.

Dimensions

John Deere 2750 Tires
Standard tires (ag)	Front: 7.50-16. Rear: 18.4-30 (2WD)
	Front: 13.6-24. Rear: 15.5-38 (4WD)
Lawn/turf front	27x9.5-15
Lawn/turf rear	21.5L-16.1

Dimensions
2WD Wheelbase	89.2 inches 226 cm
4WD Wheelbase	90 inches 228 cm
2WD Length	138.8 inches 352 cm
4WD Length	136.9 inches 347 cm
Height (steering wheel)	66.3 inches 168 cm
Height (cab)	102.2 inches 259 cm
2WD Clearance (front axle)	24.8 inches 62 cm
4WD Clearance (front axle)	18.9 inches 48 cm
Rack-and-pinion rear axle

John Deere 2750 Weight
Shipping	8,210 lbs (2WD cab) 3724 kg
	8,910 lbs (4WD cab) 4041 kg
Operating	7,500 lbs (2WD ROPS) 3402 kg
Ballasted	9,625 lbs 4365 kg

Tests

Nebraska Tractor Test 1472
Diesel 16-speed 2WD April 11 - May 11, 1983 Link: Nebraska Tractor Test 1472 file
PTO performance
Power at rated engine speed	75.35 hp 56.2 kW
Fuel use	4.8 gal/hour 18.2 l/hour
Power at rated PTO speed	75.07 hp 56.0 kW
Fuel use	4.7 gal/hour 17.8 l/hour
Drawbar performance
Max power	62.97 hp 47.0 kW
Fuel use	4.8 gal/hour 18.2 l/hour
Gear 5L used for power test.
Max pull	7,581 lbs 3438 kg
Gear 3L used for pull test.

Attachments

Attachment overview
John Deere 146 loader
John Deere 175 loader
John Deere 240 loader
John Deere 245 loader
