John Deere 2450

The John Deere 2450 is a tractor produced by John Deere. It is equipped with a 239.2 ci 3.9 L engine. The rated power output is 70 hp 52.2 kW. Transmission: Hi-Lo. Operating weight: 7077 to 8157 pounds.

Overview

	1987 - 1994 Utility tractor
1987 - 1994
Utility tractor

Production
Manufacturer	John Deere
Utility tractor
Built in Mannheim, Baden-Württemberg, Germany

John Deere 2450 Engine
John Deere 3.9L 4-cyl diesel
Fuel tank	22.2 gal 84.0 L
	35.9 gal*With optional 52L tank. 135.9 L
Engine details ...

John Deere 2450 Power
Engine	70 hp 52.2 kW

Mechanical
Two- or four-wheel drive
Final drives	planetary
Differential lock	mechanical rear
Steering	power assist
	hydrostatic *With four-wheel drive and SG2 cab option.
Hydraulic wet disc brakes
ROPS. MC1 or Sound-Gard cab optional. CC2 cab available in 1991.

Hydraulics
Type	closed-center constant pressure
Pressure	2756 psi 190.0 bar
Pump flow	11.6 gpm 43.9 lpm

Tractor hitch
Rear Type	II
Control	position and draft control
Rear lift (at ends)	6768 lbs 3069 kg

Power Take-off (PTO)
Rear PTO	independent
Clutch	hydraulic wet disc
Rear PTO Type	540
	1000
Engine RPM	540@2075

Dimensions & Tires
2WD Wheelbase	89.2 inches 226 cm
4WD Wheelbase	90 inches 228 cm
Weight	7077 to 8157 pounds
Front tire	7.50-18
2WD Rear tire	13.6-38
Full dimensions and tires ...

Electrical
Ground	negative
Charging amps	55
Batteries	2
Battery volts	12
Battery AH	55

References
Operator's Manual 2250, 2450 and 2650 Tractors published in 1992, by John Deere
Operator's Manual 2250 and 2450 Tractors published in 1991, by John Deere
2450 Traktor published in 1986, by John Deere
Traktor 2450 published in 1988, by John Deere

Engine

Engine Detail — 239.2 ci / 3.9 L Diesel

Manufacturer	John Deere
Fuel Type	Diesel
Configuration	4-cylinder, liquid-cooled
Displacement	239.2 ci 3.9 L
Bore/Stroke	4.19x4.33 inches 106 x 110 mm
Power	70 hp 52.2 kW
Rated RPM	2300
Starter volts	12
Starter power	4 hp 3.0 kW

John Deere 2450 Engine

Transmission

Transmission options
8-speed partially synchronized
16-speed two-speed power shift

Transmission — Syncro-Range

Transmission	Syncro-Range
Type	partially synchronized
Gears	8 forward and 4 reverse
Clutch	mechanical disc
With 13.6-38 rear tires.

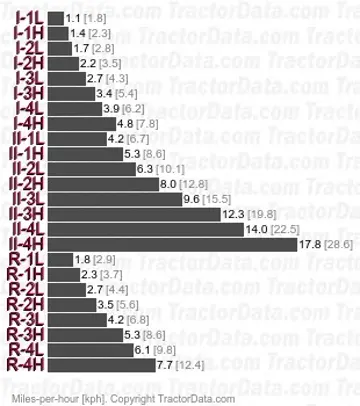

Transmission — Hi-Lo

Transmission	Hi-Lo
Type	two-speed power shift
Gears	16 forward and 8 reverse
Clutch	hydraulic
With 13.6-38 rear tires.

Dimensions

John Deere 2450 Tires
2WD Standard tires (ag)	Front: 7.50-18. Rear: 13.6-38
4WD Standard tires (ag)	Front: 11.2-28. Rear: 13.6-38

Dimensions
2WD Wheelbase	89.2 inches 226 cm
4WD Wheelbase	90 inches 228 cm
Length	165.1 inches 419 cm
Width	73.3 inches 186 cm
4WD Clearance (front axle)	19.5 inches 49 cm
2WD Clearance (front axle)	26.3 inches 66 cm
2WD Front tread	53.5 to 79.1 inches 135 to 200 cm
4WD Front tread	59.1 to 79.1 inches 150 to 200 cm
Rear tread	59.1 to 78.7 inches 150 to 199 cm

John Deere 2450 Weight
2WD MC1 Shipping	7077 lbs 3210 kg
4WD MC1 Shipping	7738 lbs 3509 kg
2WD SG2 Shipping	7485 lbs 3395 kg
4WD SG2 Shipping	8157 lbs 3700 kg

John Deere 2450 Height
Cab	96.3 inches (low-profile) 244 cm
	98.2 inches (MC1) 249 cm
	104.8 inches (SG2) 266 cm
