John Deere 3300

The John Deere 3300 is a tractor produced by John Deere. It is equipped with a 276 ci 4.5 L engine. The rated power output is 75 hp 55.9 kW. Transmission: Twinshift. Operating weight: 7672 lbs 3480 kg.

Engine Power
75 hp 55.9 kW
Fuel & Capacities
30.4 gal 115.1 L
Transmission
Twinshift
Operating Weight
7672 lbs 3480 kg

John Deere 3300 Serial Number & Year Decoder

Find the exact manufacture year of your tractor by checking your chassis serial number below.

Where to Find the Serial NumberThe serial number plate is commonly located on the front frame, tractor transmission housing (right side), or instrument panel badge.

Overview

John Deere 3300 tractor photo
1995 - 1998 Utility tractorRenault built
1995 - 1998
Utility tractor
Renault built
1995 - 1998
Utility tractor
Renault built
Production
Distributor
John Deere
Manufacturer
Renault
Utility tractor
Built in Le Mans, France
John Deere 3300 Engine
John Deere 4.5L 4-cyl diesel
Fuel tank
30.4 gal 115.1 L
38.3 galOptOptional 145.0 L
Engine details ...
John Deere 3300 Power
Engine (net)
75 hp 55.9 kW
Mechanical
Two- or four-wheel drive
Power steering
Wet disc brakes
Cab standard with heater. Optional deluxe X Cab.
Hydraulics
Type
open center
Pressure
2611 psi 180.0 bar
Pump flow
13.7 gpm 51.9 lpm
Steering flow
7 gpm 26.5 lpm
Tractor hitch
Rear Type
II
Control
lower-link draft sensing
Rear lift
8430 lbs 3823 kg
10071 lbsOptOptional 4568 kg
Power Take-off (PTO)
Rear PTO
independent
3300 Clutch
mechanical
3300X Clutch
hydraulic
Rear PTO Type
540/540E
540/1000 OptOptional
Dimensions & Tires
Weight
7672 lbs 3480 kg
Full dimensions and tires ...
Electrical
Ground
negative
Charging system
alternator
Charging amps
65
Battery volts
12
Battery AH
105
References
3300 references literature
New John Deere 3000 Series Tractors published in 1994

Engine

John Deere 3300 tractor photo
1995 - 1998 Utility tractorRenault built
1995 - 1998
Utility tractor
Renault built
1995 - 1998
Utility tractor
Renault built

Engine Detail — 276 ci / 4.5 L Diesel

Manufacturer
John Deere 4045D
Fuel Type
Diesel
Configuration
4-cylinder, liquid-cooled
Displacement
276 ci 4.5 L
Bore/Stroke
4.19x5.00 inches 106 x 127 mm
Rated Power (net)
75 hp 55.9 kW
Rated RPM
2050
Torque
210 lb-ft 284.8 Nm
Torque RPM
1500
Starter
electric
Starter volts
12

Transmission

John Deere 3300 tractor photo
1995 - 1998 Utility tractorRenault built
1995 - 1998
Utility tractor
Renault built
1995 - 1998
Utility tractor
Renault built
Transmission options
10-speed synchronized
20-speed synchronized
20-speed two-speed power shift

Transmission — 10 forward and reverse synchronized

Type
synchronized
Gears
10 forward and reverse
Five synchronized gears in two ranges with synchronized shuttle.
3300 synchronized speeds

Transmission — 20 forward and reverse synchronized

Type
synchronized
Gears
20 forward and reverse
Optional mechanical splitter doubles the numbers of speeds in the base transmission. Clutch must be used with mechanical splitter. Also available with an optional creeper range, providing 30 total speeds in each direction.
3300 synchronized speeds

Transmission — Twinshift

Transmission
Twinshift
Type
two-speed power shift
Gears
20 forward and reverse
The Twinshift provides a push-button splitter to the base transmission.

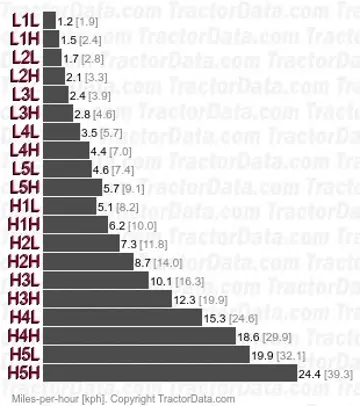

3300 Twinshift two-speed power shift speeds

Dimensions

John Deere 3300 tractor photo
1995 - 1998 Utility tractorRenault built
1995 - 1998
Utility tractor
Renault built
1995 - 1998
Utility tractor
Renault built
John Deere 3300 Tires
Dimensions
Width
73.2 inches 185 cm
3300 Height (cab)
97.8 inches 248 cm
3300X Height (cab)
104.9 inches 266 cm
Shipping weight
7672 lbs 3480 kg
