John Deere 5100GF

The John Deere 5100GF is a tractor produced by John Deere. It is equipped with a 275.5 ci 4.5 L engine. The rated power output is 100 hp 74.6 kW. Transmission: 24 forward and reverse. Drive type: 4x2 2WD. Operating weight: 5776 to 6460 pounds.

Overview

	2009 - 2013 5G SeriesOrchard/Vineyard tractorAgritalia built
2009 - 2013
5G Series
Orchard/Vineyard tractor
Agritalia built

2009 - 2013
5G Series
Orchard/Vineyard tractor
Agritalia built

Production
Distributor	John Deere
Manufacturer	Agritalia
Orchard/Vineyard tractor
Built in Rovigo, Italy

Variants
5100GF	orchard
5100GV	vineyard

John Deere 5100GF Engine
John Deere 4.5L 4-cyl diesel
Fuel tank	40.2 gal 152.2 L
Engine details ...

John Deere 5100GF Power
Engine	100 hp 74.6 kW

Mechanical
Drive	4x2 2WD
	4x4 MFWD 4WD (optional)
Steering	hydrostatic power
Wet disc brakes
ROPS (2-post); Cab optional.

Hydraulics
Pressure	2700 psi 186.2 bar
Pump flow	11.9 gpm 45.0 lpm
	15.6 gpm (optional) 59.0 lpm
Total flow	18.9 gpm 71.5 lpm
	22.3 gpm (optional) 84.4 lpm
	27.6 gpm (optional) 104.5 lpm
Steering flow	6.5 gpm 24.6 lpm
Steering press.	1900 psi 131.0 bar

Tractor hitch
Rear Type	II/I
Rear lift	5,845 lbs 2651 kg

Power Take-off (PTO)
Rear PTO Type	540/540E/ground
	540/1000/ground

Dimensions & Tires
Wheelbase	85 inches 215 cm
Weight	5776 to 6460 pounds
Full dimensions and tires ...

Electrical
Ground	negative
Charging system	alternator
Charging amps	45
	95 (cab)
Battery volts	12
Battery AH	100

References
5 Series Speciality tractors published in 2009, by John Deere

Engine

	2009 - 2013 5G SeriesOrchard/Vineyard tractorAgritalia built
2009 - 2013
5G Series
Orchard/Vineyard tractor
Agritalia built

2009 - 2013
5G Series
Orchard/Vineyard tractor
Agritalia built

Engine Detail — 275.5 ci / 4.5 L Diesel

Manufacturer	John Deere 4045HAT82
Configuration	turbocharged aftercooled diesel, 4-cylinder, liquid-cooled
Displacement	275.5 ci 4.5 L
Bore/Stroke	4.19x5.00 inches 106 x 127 mm
Emissions	Stage IIIA
Power	100 hp 74.6 kW
Compression	19.0:1
Rated RPM	2300
Torque	276.6 lb-ft 375.1 Nm
Torque RPM	1600
Firing order	1-3-4-2
Starter	electric
Starter volts	12
Starter power	3.8 hp 2.8 kW
Coolant capacity	11 qts 10.4 L
	13.7 qts (cab) 13.0 L
Coolant change	2000 h
Intake valve clearance	0.014 inches 0.356 mm
Exhaust valve clearance	0.018 inches 0.457 mm
Oil capacity	8.5 qts 8.0 L
Oil change	500 h

Transmission

	2009 - 2013 5G SeriesOrchard/Vineyard tractorAgritalia built
2009 - 2013
5G Series
Orchard/Vineyard tractor
Agritalia built

2009 - 2013
5G Series
Orchard/Vineyard tractor
Agritalia built

Transmission options
12-speed
24-speed

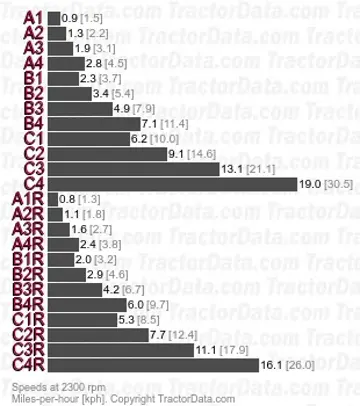

Transmission — 12 forward and reverse

Gears	12 forward and reverse
With 14.9R28 rear tires.

Transmission — 24 forward and reverse

Gears

24 forward and reverse

Dimensions

	2009 - 2013 5G SeriesOrchard/Vineyard tractorAgritalia built
2009 - 2013
5G Series
Orchard/Vineyard tractor
Agritalia built

2009 - 2013
5G Series
Orchard/Vineyard tractor
Agritalia built

John Deere 5100GF Tires

Dimensions
Wheelbase	85 inches 215 cm
Length	153 inches 388 cm
Width	79 inches 200 cm
Height (ROPS)	104 inches 264 cm
Height (cab)	96 inches 243 cm
Shipping weight	5,776 lbs (2WD) 2619 kg
	6,460 lbs (4WD) 2930 kg
Front tread	41 to 55 inches 104 to 139 cm
Rear tread	39 to 64 inches 99 to 162 cm
