John Deere 4930

The John Deere 4930 is a tractor produced by John Deere. It is equipped with a 466 ci 7.6 L engine. The rated power output is 160 hp 119.3 kW. Transmission: Power Shift. Drive type: 4x2 2WD. Operating weight: 10523 to 11523 pounds.

Engine Power
160 hp 119.3 kW
Drive & Traction
4x2 2WD
Fuel & Capacities
65 gal 246.0 L
Transmission
Power Shift
Operating Weight
10523 to 11523 pounds

John Deere 4930 Serial Number & Year Decoder

Find the exact manufacture year of your tractor by checking your chassis serial number below.

Where to Find the Serial NumberThe serial number plate is commonly located on the front frame, tractor transmission housing (right side), or instrument panel badge.

Overview

John Deere 4930 tractor photo
1978 - 1981 Row-Crop tractor
1978 - 1981
Row-Crop tractor
Production
Manufacturer
John Deere
Row-Crop tractor
Built in Waterloo, Iowa, USA
The John Deere 4930 was the similar to the US model 4440, exported to Argentina from the United States.
John Deere 4930 Engine
John Deere 7.6L 6-cyl diesel
Fuel tank
65 gal 246.0 L
Engine details ...
John Deere 4930 Power
Engine
160 hp 119.3 kW
PTO (claimed)
130 hp 96.9 kW
Mechanical
Drive
4x2 2WD
4x4 HFWD 4WD
Differential lock
hydraulic rear
Power steering
Hydraulic wet disc brakes
Sound Gard cab with air-conditioning optional.
Hydraulics
Type
closed center
Pressure
2250 psi 155.1 bar
2WD Pump flow
23 gpm 87.1 lpm
4WD Pump flow
26.5 gpm 100.3 lpm
Tractor hitch
Rear Type
III/IIIN
Control
position and draft control
Power Take-off (PTO)
Rear PTO
independent
Clutch
hydraulic wet discs
Rear PTO Type
540/1000 (1.375)
Engine RPM
540@2200
Dimensions & Tires
Wheelbase
106.7 inches 271 cm
Weight
10523 to 11523 pounds
Front tire
10.00-15
Rear tire
23.1x30
Full dimensions and tires ...
Electrical
Ground
negative
Charging system
alternator
ROPS Charging amps
61
Cab Charging amps
72
Batteries
2
Battery CCA
800
Battery volts
6
Battery Group
5D
References
4930 references literature
Tractor 4930 published in 1978, by John Deere

Engine

Engine Detail — 466 ci / 7.6 L Diesel

Manufacturer
John Deere
Configuration
intercooled turbocharged diesel, 6-cylinder, liquid-cooled inline
Displacement
466 ci 7.6 L
Bore/Stroke
4.5625x4.75 inches 116 x 121 mm
Power
160 hp 119.3 kW
Fuel system
direct injection
Air cleaner
dry
Pre-heating
ether injection
Rated RPM
2200
Idle RPM
800-2400
Operating RPM
1500-2200
Firing order
1-5-3-6-2-4
Starter volts
12
Oil capacity
20 qts 18.9 L
Coolant capacity
36 qts 34.1 L

Transmission

Transmission options
16-speed partial power shift
8-speed full power shift

Transmission — Quad-Range

Transmission
Quad-Range
Type
partial power shift
Gears
16 forward and 6 reverse
Clutch
hydraulic wet disc
Four gears (1-4) in four ranges (A-D). Power shift between pairs 1-2 and 3-4 in each range, with synchronized shift between 2-3. Two reverses in ranges A-C. Tractor must be stopped, and clutch used, to shift ranges. Power shift is provided hy a hydraulically-controlled planetary that provides an under-drive to each gear.
With 24.5x32 rear tires.

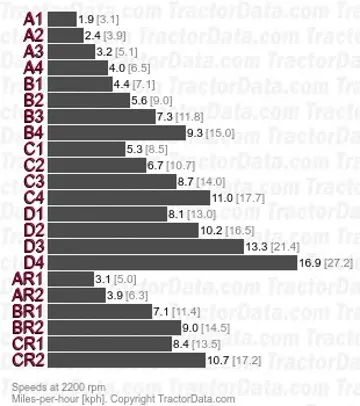

4930 Quad-Range partial power shift speeds

Transmission — Power Shift

Transmission
Power Shift
Type
full power shift
Gears
8 forward and 4 reverse
Clutch
hydraulic wet disc
4930 Power Shift full power shift speeds

Dimensions

John Deere 4930 Tires
Ag front
10.00-15
11.00-16
Ag rear
23.1x30
24.5x32
18.4x36 (duals)
Dimensions
Wheelbase
106.7 inches 271 cm
Length
158.6 inches 402 cm
Width
90 inches 228 cm
Height
117.3 inches 297 cm
Front tread
55.9 to 91.7 inches 141 to 232 cm
Rear tread
68.1 to 110.2 inches 172 to 279 cm
John Deere 4930 Weight
2WD Shipping
10523 lbs 4773 kg
4WD Shipping
11523 lbs 5226 kg
Ballasted
18522 lbs 8401 kg
