John Deere 5075M

2008 - 2025

Model year 2008-20112012-20142015-2025

5M Series

Utility tractor

Manufacturer

John Deere

Utility tractor

Built in Augusta, Georgia, USA

Original price

$38,512 (2009 2WD ROPS)

$49,182 (2009 4WD cab)

John Deere 3.0L 5-cyl diesel

Engine

75 hp 55.9 kW

PTO (claimed)

60 hp 44.7 kW

PTO (tested)

65.58 hp 48.9 kW

Drive

4x2 2WD

4x4 MFWD 4WD (optional)

Final drives

inboard planetary

Differential lock

shift-on-the-move electro-hydraulic rear differential lock

Steering

hydrostatic power

Hydraulic wet disc brakes

Foldable ROPS. Optional deluxe ROPS with upgraded seat. Optional cab with heat and air conditioning.

Fuel

22.3 gal (ROPS) 84.4 L

31 gal (cab) 117.3 L

Hydraulic system

11.9 gal 45.0 L

Front hubs

0.84 qts (each) 0.8 L

Front diff.

5.3 qts 5.0 L

Type

open center

Capacity

11.9 gal 45.0 L

Pressure

2828 psi 195.0 bar

Valves

0, 2 or 3 (rear)

0, 2 or 3 (mid)

Pump flow

14.6 gpm 55.3 lpm

Total flow

20.9 gpm 79.1 lpm

Oil type

-10oF [-23oC]↑ : HY-GARD -10oF [-23oC]↑ : JDM J20C 10o↔104oF [-12o↔40oC] : BIO HY-GARD JDM 20D

-10oF [-23oC]↑

: HY-GARD

-10oF [-23oC]↑

: JDM J20C

10o↔104oF [-12o↔40oC]

: BIO HY-GARD JDM 20D

-10oF [-23oC]↑

: HY-GARD

-10oF [-23oC]↑

: JDM J20C

10o↔104oF [-12o↔40oC]

: BIO HY-GARD JDM 20D

Steering flow

6.3 gpm 23.8 lpm

Steering press.

1922 psi 132.5 bar

-10oF [-23oC]↑

: JDM J20C

10o↔104oF [-12o↔40oC]

: BIO HY-GARD JDM 20D

Rear Type

II/I

Rear lift (at 24"/610mm)

3,595 lbs 1630 kg

4,498 lbs (optional) 2040 kg

Rear PTO

independent electrohydraulic

Rear PTO Type

540/540E

540/540E/1000 (optional)

Wheelbase

85.6 inches 217 cm

Weight

6017 to 7800 pounds

Front tire

7.5-16

Rear tire

16.9-30

Ground

negative

Charging system

alternator

Charging amps

70 (ROPS)

90 (cab)

120 (optional)

Battery CCA

925

Battery volts

12

Battery Group

31

New 5M Series published in 2009, by John Deere

5M Series published in 2011, by John Deere

Manufacturer

John Deere PowerTech 5030

Configuration

turbocharged diesel, 5-cylinder, liquid-cooled

Displacement

186 ci 3.0 L

Bore/Stroke

3.385x4.134 inches 86 x 105 mm

Power

75 hp 55.9 kW

Air cleaner

dry

Rated RPM

2200

Torque

300 lb-ft 406.8 Nm

Torque RPM

1400

Starter volts

12

Coolant capacity

10.4 qts 9.8 L

Oil capacity

10.4 qts 9.8 L

16-speed partially synchronized

12-speed partially synchronized

16-speed partially synchronized with power shuttle

32-speed

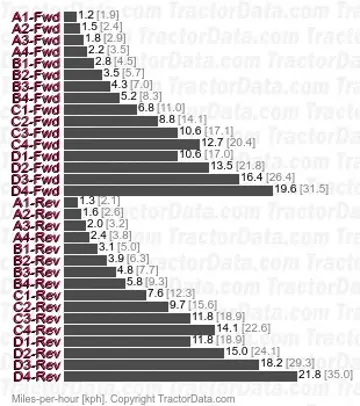

Transmission

SyncReverser

Type

partially synchronized

Gears

16 forward and reverse

Operated via three levers and foot clutch. The speed shift lever selects one of four speeds. The range shift lever selects one of four ranges. Reverser lever selects direction of travel. Synchronized shuttle shift with reverser lever, or speed change with speed shift lever, while moving using the clutch. Tractor must be stopped to change ranges.

With 16.9-30 rear tires.

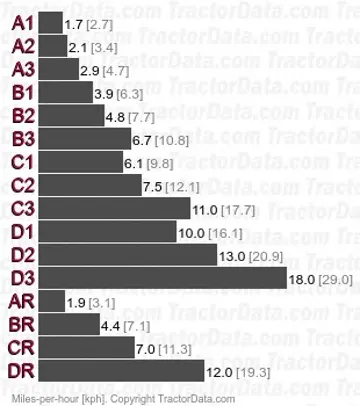

Transmission

SyncShuttle Plus

Type

partially synchronized

Gears

12 forward and 4 reverse

Operated via two levers and foot clutch. Speed shift lever selects three forward gears or reverse. Range shift lever selects one of four ranges. Synchronized shuttle shift or speed change shift while moving using the clutch. Tractor must be stopped to change range.

With 16.9-30 rear tires.

Transmission

PowrReverser

Type

partially synchronized with power shuttle

Gears

16 forward and reverse

Operated via three levers and foot clutch. The speed shift lever selects one of four speeds. The range shift lever selects one of four ranges. Reverser lever selects direction of travel. Clutchless power shift between forward and reverse using reverser lever. Synchronized speed change while moving using the speed shift lever with the clutch. Tractor must be stopped to change ranges.

With 16.9-30 rear tires.

Transmission

PowrReverser Plus

Gears

32 forward and 16 reverse

Operated via three levers and foot clutch plus push button. The speed shift lever selects one of four speeds plus a push-button high or low selection. The range shift lever selects one of four ranges. Reverser lever selects direction of travel. Clutchless power shift between forward and reverse using reverser lever. Synchronized speed change while moving using the speed shift lever with the clutch. Tractor must be stopped to change ranges.

Ag front

7.5-16 (2WD)

11.2-24 (4WD)

Ag rear

16.9-30

Ag front

11L-15 (2WD)

9.5-24 (4WD)

11.2R24 (4WD)

12.4R24 (4WD)

13.6R24 (4WD)

230/95R32 (4WD)

Ag rear

14.9-28

16.9-28

420/90R30

480/80R30

15.5R38

16.9R34 (4WD)

230/95R48 (4WD)

Lawn/turf front

27/12LL-15 (2WD)

12LL-16 (4WD)

44x18-20 (4WD)

Lawn/turf rear

22.5LL-16.1

23.1-26

Industrial front

11LL-15 (2WD)

12.5/80-18 (4WD)

Industrial rear

19.5L-24

16.9-24

Wheelbase

85.6 inches 217 cm

Ground clearance

18.8 inches (front axle) 47 cm

Front tread

57.6 to 82.6 inches 146 to 209 cm (2WD)

Front tread

52.8 to 75 inches 134 to 190 cm (4WD)

Rear tread

53.1 to 80.9 inches 134 to 205 cm

Operating

6,017 lbs (2WD ROPS) 2729 kg

6,300 lbs (2WD deluxe ROPS) 2857 kg

7,400 lbs (2WD cab) 3356 kg

6,400 lbs (4WD ROPS) 2903 kg

6,700 lbs (4WD deluxe ROPS) 3039 kg

7,800 lbs (4WD cab) 3538 kg

Diesel 16-speed 4WD September 22 - October 6, 2009 Link: Nebraska Tractor Test 1959 file

PTO performance

Max power

65.58 hp 48.9 kW

Fuel use

3.9 gal/hour 14.8 l/hour

Power at rated engine speed

60.12 hp 44.8 kW

Fuel use

4.2 gal/hour 15.9 l/hour

Power at rated PTO speed

60.63 hp 45.2 kW

Fuel use

4.1 gal/hour 15.5 l/hour

John Deere 553 loader

John Deere 563 loader
