John Deere 5085M

2008 - 2018

Model year 2008-20112012-20142015-2018

5M Series

Utility tractor

Manufacturer

John Deere

Utility tractor

Built in Augusta, Georgia, USA

Original price

$41,671 (2WD ROPS)

$52,340 (4WD cab)

John Deere 4.5L 4-cyl diesel

Engine

85 hp 63.4 kW

PTO (claimed)

70 hp 52.2 kW

PTO (tested)

74.07 hp 55.2 kW

Drive

4x2 2WD

4x4 MFWD 4WD (optional)

Final drives

inboard planetary

Differential lock

shift-on-the-move electro-hydraulic rear differential lock

Steering

hydrostatic power

Hydraulic wet disc brakes

Foldable ROPS. Optional deluxe ROPS with upgraded seat. Optional cab with heat and air conditioning.

Fuel

30.3 gal (ROPS) 114.7 L

40.7 gal (cab) 154.0 L

Hydraulic system

11.9 gal 45.0 L

Front hubs

0.84 qts (each) 0.8 L

Front diff.

5.3 qts 5.0 L

Type

open center

Capacity

11.9 gal 45.0 L

Pressure

2828 psi 195.0 bar

Valves

0, 2 or 3 (rear)

0, 2 or 3 (mid)

Pump flow

18.4 gpm 69.6 lpm

Total flow

24.7 gpm 93.5 lpm

Oil type

-10oF [-23oC]↑ : HY-GARD -10oF [-23oC]↑ : JDM J20C 10o↔104oF [-12o↔40oC] : BIO HY-GARD JDM 20D

-10oF [-23oC]↑

: HY-GARD

-10oF [-23oC]↑

: JDM J20C

10o↔104oF [-12o↔40oC]

: BIO HY-GARD JDM 20D

-10oF [-23oC]↑

: HY-GARD

-10oF [-23oC]↑

: JDM J20C

10o↔104oF [-12o↔40oC]

: BIO HY-GARD JDM 20D

Steering flow

6.3 gpm 23.8 lpm

Steering press.

1922 psi 132.5 bar

-10oF [-23oC]↑

: JDM J20C

10o↔104oF [-12o↔40oC]

: BIO HY-GARD JDM 20D

Rear Type

II/I

Rear lift (at 24"/610mm)

3,595 lbs 1630 kg

4,498 lbs (optional) 2040 kg

Rear PTO

independent electrohydraulic

Rear PTO Type

540/540E

540/540E/1000 (optional)

Weight

6393 to 8000 pounds

Front tire

7.5-16

Rear tire

16.9-30

Ground

negative

Charging system

alternator

Charging amps

70 (ROPS)

90 (cab)

120 (optional)

Battery CCA

925

Battery volts

12

Battery Group

31

New 5M Series published in 2009, by John Deere

5M Series published in 2011, by John Deere

Configuration

turbocharged diesel, 4-cylinder, liquid-cooled

John Deere PowerTech M 4045

Displacement

276 ci 4.5 L

Bore/Stroke

4.19x5.00 inches 106 x 127 mm

Emissions

Tier 3

Power

85 hp 63.4 kW

Air cleaner

dry

Rated RPM

2200

Torque

331 lb-ft 448.8 Nm

Torque RPM

1600

Starter volts

12

Coolant capacity

12 qts 11.4 L

Oil capacity

8.8 qts 8.3 L

16-speed partially synchronized

12-speed partially synchronized

16-speed partially synchronized with power shuttle

32-speed

Transmission

SyncReverser

Type

partially synchronized

Gears

16 forward and reverse

Operated via three levers and foot clutch. The speed shift lever selects one of four speeds. The range shift lever selects one of four ranges. Reverser lever selects direction of travel. Synchronized shuttle shift with reverser lever, or speed change with speed shift lever, while moving using the clutch. Tractor must be stopped to change ranges.

With 16.9-30 rear tires.

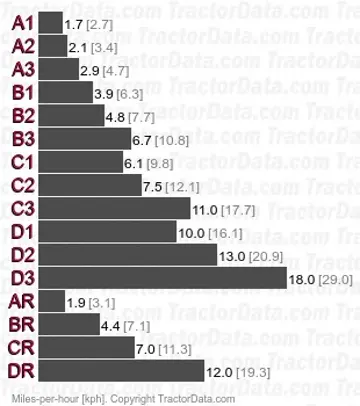

Transmission

SyncShuttle Plus

Type

partially synchronized

Gears

12 forward and 4 reverse

Operated via two levers and foot clutch. Speed shift lever selects three forward gears or reverse. Range shift lever selects one of four ranges. Synchronized shuttle shift or speed change shift while moving using the clutch. Tractor must be stopped to change range.

With 16.9-30 rear tires.

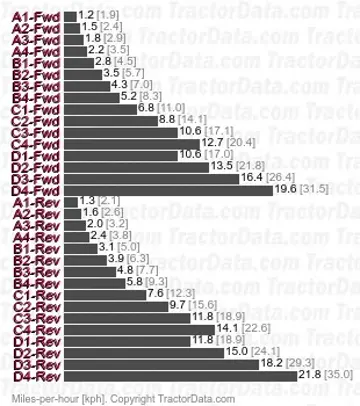

Transmission

PowrReverser

Type

partially synchronized with power shuttle

Gears

16 forward and reverse

Operated via three levers and foot clutch. The speed shift lever selects one of four speeds. The range shift lever selects one of four ranges. Reverser lever selects direction of travel. Clutchless power shift between forward and reverse using reverser lever. Synchronized speed change while moving using the speed shift lever with the clutch. Tractor must be stopped to change ranges.

With 16.9-30 rear tires.

Transmission

PowrReverser Plus

Gears

32 forward and 16 reverse

Operated via three levers and foot clutch plus push button. The speed shift lever selects one of four speeds plus a push-button high or low selection. The range shift lever selects one of four ranges. Reverser lever selects direction of travel. Clutchless power shift between forward and reverse using reverser lever. Synchronized speed change while moving using the speed shift lever with the clutch. Tractor must be stopped to change ranges.

Ag front

7.5-16 (2WD)

11.2-24 (4WD)

Ag rear

16.9-30

Ag front

11L-15 (2WD)

9.5-24 (4WD)

11.2R24 (4WD)

12.4R24 (4WD)

13.6R24 (4WD)

230/95R32 (4WD)

Ag rear

14.9-28

16.9-28

420/90R30

480/80R30

15.5R38

16.9R34

230/95R48

Lawn/turf front

27/12LL-15 (2WD)

12LL-16 (4WD)

44x18-20 (4WD)

Lawn/turf rear

22.5LL-16.1

23.1-26

Industrial front

11LL-15 (2WD)

12.5/80-18 (4WD)

Industrial rear

19.5L-24

16.9-24

Ground clearance

18.8 inches (front axle) 47 cm

Front tread

57.6 to 82.6 inches 146 to 209 cm (2WD)

Front tread

52.8 to 75 inches 134 to 190 cm (4WD)

Rear tread

53.1 to 80.9 inches 134 to 205 cm

Operating

6,393 lbs (2WD ROPS) 2899 kg

6,850 lbs (2WD deluxe ROPS) 3107 kg

7,600 lbs (4WD cab) 3447 kg

6,800 lbs (4WD ROPS) 3084 kg

7,250 lbs (4WD deluxe ROPS) 3288 kg

8,000 lbs (4WD cab) 3628 kg

Diesel 16-speed 4WD October 15 - 20, 2009 Link: Nebraska Tractor Test 1960 file

PTO performance

Max power

74.07 hp 55.2 kW

Fuel use

4.6 gal/hour 17.4 l/hour

Power at rated engine speed

70.37 hp 52.5 kW

Fuel use

4.7 gal/hour 17.8 l/hour

Power at rated PTO speed

73.29 hp 54.7 kW

Fuel use

4.6 gal/hour 17.4 l/hour

John Deere 553 loader

John Deere 563 loader
