John Deere 5090G

The John Deere 5090G is a tractor produced by John Deere. It is equipped with a 275.5 ci 4.5 L engine. The rated power output is 90 hp 67.1 kW. Transmission: 24 forward and reverse. Drive type: 4x2 2WD. Operating weight: 6724 to 7055 pounds.

Overview

	2009 - 2013 5G SeriesUtility tractorAgritalia built
2009 - 2013
5G Series
Utility tractor
Agritalia built

2009 - 2013
5G Series
Utility tractor
Agritalia built

Production
Distributor	John Deere
Manufacturer	Agritalia
Utility tractor
Built in Rovigo, Italy

Variants
5090G	utility
5090GH	high-crop
5090GF	orchard
5090GV	vineyard

John Deere 5090G Engine
John Deere 4.5L 4-cyl diesel
Fuel tank	25.4 gal 96.1 L
Engine details ...

John Deere 5090G Power
Engine	90 hp 67.1 kW

Mechanical
Drive	4x2 2WD
	4x4 MFWD 4WD (optional)
Steering	hydrostatic power
Wet disc brakes
ROPS (2- or 4-post). Cab optional.

Hydraulics
Pressure	2700 psi 186.2 bar
Pump flow	11.9 gpm 45.0 lpm
	15.6 gpm (optional) 59.0 lpm
Steering flow	6.5 gpm 24.6 lpm
Steering press.	1900 psi 131.0 bar

Tractor hitch
Rear Type	II/I
Rear lift	5,845 lbs 2651 kg

Power Take-off (PTO)
Rear PTO Type	540/540E/ground
	540/1000/ground

Dimensions & Tires
Wheelbase	86 inches 218 cm
Weight	6724 to 7055 pounds
Full dimensions and tires ...

Electrical
Ground	negative
Charging system	alternator
Charging amps	45
	95 (cab)
Battery volts	12
Battery AH	100

References
5 Series published in 2009, by John Deere

Engine

	2009 - 2013 5G SeriesUtility tractorAgritalia built
2009 - 2013
5G Series
Utility tractor
Agritalia built

2009 - 2013
5G Series
Utility tractor
Agritalia built

Engine Detail — 275.5 ci / 4.5 L Diesel

Manufacturer	John Deere 4045HAT80
Configuration	turbocharged aftercooled diesel, 4-cylinder, liquid-cooled
Displacement	275.5 ci 4.5 L
Bore/Stroke	4.19x5.00 inches 106 x 127 mm
Emissions	Stage IIIA
Power	90 hp 67.1 kW
Compression	19.0:1
Rated RPM	2300
Torque	269.2 lb-ft 365.0 Nm
Torque RPM	1600
Firing order	1-3-4-2
Starter	electric
Starter volts	12
Starter power	3.8 hp 2.8 kW
Coolant capacity	11 qts 10.4 L
	13.7 qts (cab) 13.0 L
Coolant change	2000 h
Intake valve clearance	0.014 inches 0.356 mm
Exhaust valve clearance	0.018 inches 0.457 mm
Oil capacity	8.5 qts 8.0 L
Oil change	500 h

John Deere 5090G Engine

Transmission

	2009 - 2013 5G SeriesUtility tractorAgritalia built
2009 - 2013
5G Series
Utility tractor
Agritalia built

2009 - 2013
5G Series
Utility tractor
Agritalia built

Transmission options
12-speed
24-speed

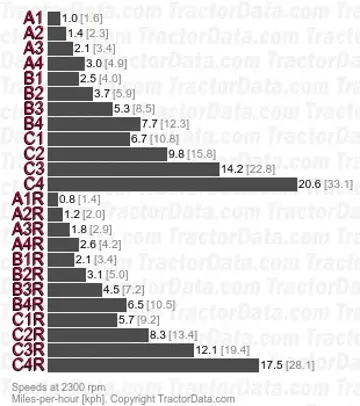

Transmission — 12 forward and reverse

Gears	12 forward and reverse
With 16.9R30 rear tires.

Transmission — 24 forward and reverse

Gears

24 forward and reverse

Dimensions

	2009 - 2013 5G SeriesUtility tractorAgritalia built
2009 - 2013
5G Series
Utility tractor
Agritalia built

2009 - 2013
5G Series
Utility tractor
Agritalia built

John Deere 5090G Tires

Dimensions
Wheelbase	86 inches 218 cm
Length	153 inches 388 cm
Width	89 inches 226 cm
Shipping weight	6,724 lbs (2WD) 3050 kg
	7,055 lbs (4WD) 3200 kg
Front tread	53 to 63 inches 134 to 160 cm (2WD)
Front tread	53 to 74 inches 134 to 187 cm (4WD)
Rear tread	54 to 75 inches 137 to 190 cm

John Deere 5090G Height
ROPS	106 inches (2-post) 269 cm
	93 inches (4-post) 236 cm
Cab	96 inches 243 cm
