John Deere 5090R
The John Deere 5090R is a tractor produced by John Deere. It is equipped with a 276.4 ci 4.5 L engine. The listed engine power is Diesel (listed): 90 hp / 67.1 kW. Transmission: Command8. Operating weight: 9811 lbs 4450 kg.
Engine Power
Diesel (listed): 90 hp / 67.1 kW
Fuel & Capacities
38 gal
143.8 L
Transmission
Command8
Operating Weight
9811 lbs
4450 kg
Overview
 | 2017 -
5R SeriesUtility tractor |
|---|---|
2017 - | |
5R Series | |
Utility tractor | |
Production | |
|---|---|
Manufacturer | John Deere |
Utility tractor | |
Built in Augusta, Georgia, USA | |
Original price was $86,100 in 2019 | |
John Deere 5090R Engine | |
|---|---|
John Deere 4.5L 4-cyl diesel | |
Engine details ...  |
John Deere 5090R Power | |
|---|---|
Engine | 90 hp
67.1 kW |
Open center PTO (claimed) | 75 hp
55.9 kW |
PFC PTO (claimed) | 80 hp
59.7 kW |
PTO (tested) | 92.28 hp
68.8 kW |
Performance test details ...  | |
Mechanical | |
|---|---|
Four-wheel drive | |
Final drives | inboard planetary |
Differential lock | electro-hydraulic |
Power steering | |
Cab standard with air-conditioning. | |
Capacity | |
|---|---|
Fuel | 38 gal
143.8 L |
Exhaust fluid (DEF) | 2.9 gal
11.0 L |
Open center Hydraulic system | 11.75 gal
44.5 L |
PFC Hydraulic system | 12.5 gal
47.3 L |
Hydraulics | |
|---|---|
Open center Type | open center |
PFC Type | pressure-flow compensated |
Open center Capacity | 11.75 gal
44.5 L |
PFC Capacity | 12.5 gal
47.3 L |
Pressure | 2900 psi
200.0 bar |
Open center SCV flow | 19.3 gpm
73.1 lpm |
PFC SCV flow | 26.4 gpm
99.9 lpm |
Open center Total flow | 25.5 gpm
96.5 lpm |
PFC Total flow | 39 gpm
147.6 lpm |
Open center Steering flow | 6.2 gpm
23.5 lpm |
PFC Steering flow | 8.1 gpm
30.7 lpm |
Tractor hitch | |
|---|---|
Rear Type | II/I |
Control | electro-hydraulic draft sensing |
Rear lift (at ends) | 7158 lbs
3246 kg |
8157 lbsOptOptional
3700 kg | |
Rear lift (at 24"/610mm) | 6979 lbs
3165 kg |
7868 lbsOptOptional
3568 kg | |
Power Take-off (PTO) | |
|---|---|
Rear PTO | independent |
Clutch | electro-hydraulic |
Rear PTO Type | 540/1000 (1.375) |
Engine RPM | 540@2100 |
540E@1645 | |
1000@2103 | |
Dimensions & Tires | |
|---|---|
Wheelbase | 88.6 inches
225 cm |
Weight | 9811 lbs
4450 kg |
Front tire | 12.4R24 |
Rear tire | 18.4R30 |
Full dimensions and tires ...  | |
Electrical | |
|---|---|
Ground | negative |
Charging system | alternator |
Charging amps | 200 |
Battery CCA | 950 |
Battery volts | 12 |
References | |
|---|---|
 | |
5R Series Tractors published in 2018, by John Deere | |
Get a load of Our new 5R options published in 2018, by John Deere |
Engine
Engine Detail — 276.4 ci / 4.5 L Diesel
Configuration | turbocharged diesel, 4-cylinder, liquid-cooled |
John Deere 4045 PowerTech PWL | |
Displacement | 276.4 ci
4.5 L |
Bore/Stroke | 4.19x5.00 inches
106 x 127 mm |
Emissions | Tier IV |
Power | 90 hp
67.1 kW |
Starter | electric |
Starter volts | 12 |
Oil capacity | 12.3 qts
11.6 L |
Coolant capacity | 17 qts
16.1 L |
Transmission
Transmission options | |
|---|---|
16-speed | |
24-speed | |
32-speed |

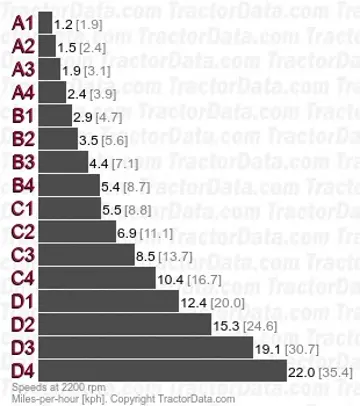

Transmission — CommandQuad
Transmission | CommandQuad |
Gears | 16 forward and reverse |
Clutch | hydraulic wet disc |
With 480/70R28 rear tires. Reverse speeds are 10% faster than forward except in D3 and D4. | |
 | |
Transmission — CommandQuad Creeper
Transmission | CommandQuad Creeper |
Gears | 24 forward and reverse |
Clutch | hydraulic wet disc |
With 480/70R28 rear tires. | |
 | |
Transmission — Command8
Transmission | Command8 |
Gears | 32 forward and 16 reverse |
Clutch | hydraulic wet disc |
Dimensions
John Deere 5090R Tires | |
|---|---|
Standard tires (ag) | Front: 12.4R24. Rear: 18.4R30 |
Optional tires (ag) | Front: 11.2R28. Rear: 13.6R38 |
Front: 380/70R20. Rear: 480/70R28 | |
Front: 13.6R24. Rear: 16.9R34 | |
Front: 380/70R24. Rear: 480/70R34 | |
Lawn/turf front | 44x18-20 |
Lawn/turf rear | 23.1-26 |
Industrial front | 12.5/80-18 |
Industrial rear | 19.5L-24 |
Dimensions | |
|---|---|
Wheelbase | 88.6 inches
225 cm |
Length | 147.8 inches
375 cm |
Width | 87 inches
220 cm |
Height (cab) | 106.1 inches
269 cm |
Shipping weight | 9811 lbs
4450 kg |
Max weight | 18960 lbs
8600 kg |
Tests
Tractor Tests | |
|---|---|
NTTL 2191: diesel CommandQuad 4WD Open Center | |
NTTL 2192: diesel CommandQuad 4WD PFC |
Nebraska Tractor Test 2191 | |
|---|---|
Diesel CommandQuad 4WD Open Center
April 13 - 24, 2018
Link: Nebraska Tractor Test 2191 file | |
PTO performance | |
Max power | 89.61 hp
66.8 kW |
Fuel use | 5.0 gal/hour
18.9 l/hour |
Power at rated engine speed | 77.17 hp
57.5 kW |
Fuel use | 4.8 gal/hour
18.2 l/hour |
Power at rated PTO speed | 81.89 hp
61.1 kW |
Fuel use | 4.9 gal/hour
18.5 l/hour |
Nebraska Tractor Test 2192 | |
|---|---|
Diesel CommandQuad 4WD PFC
April 16 - 24, 2018
Link: Nebraska Tractor Test 2192 file | |
PTO performance | |
Max power | 92.28 hp
68.8 kW |
Fuel use | 5.0 gal/hour
18.9 l/hour |
Power at rated engine speed | 80.54 hp
60.1 kW |
Fuel use | 4.9 gal/hour
18.5 l/hour |
Power at rated PTO speed | 86.28 hp
64.3 kW |
Fuel use | 5.0 gal/hour
18.9 l/hour |
Recommended Implements & Sizing Guide
Engineering recommendations for John Deere 5090R based on its 90 HP power envelope and ASAE agricultural standards.
| Implement & Operation | Recommended Size | Workload Rating | Engineering Notes |
|---|---|---|---|
Moldboard PlowPrimary Tillage | 4 to 5 Bottom (16-18")4 - 5 铧 (40-45 cm) | Heavy Duty | Heavy primary tillage; semi-mounted hitch recommended. |
Rotary Cutter / MowerMowing & Clearing | 7 to 8 ft (84-96 in)2.1 - 2.4 m | Heavy Duty | Heavy-duty twin spindle cutter for overgrown acreage. |
Rotary TillerSeedbed Prep | 78 to 84 in200 - 215 cm | Heavy Duty | Heavy commercial tiller with multi-speed gearbox. |
Disc HarrowSecondary Tillage | 10 to 14 ft Tandem / Offset3.0 - 4.2 m 重型交错耙 | Heavy Duty | Aggressive residue cutting in corn/cotton stubble. |
Hay BalerHay & Forage | 4x4 to 4x5 Round Baler1.2x1.5 m 紧凑圆捆机 | Heavy Duty | Silage and dry hay; 540 RPM PTO with slip-clutch. |
Sizing & Soil Condition NoteActual implement sizing varies depending on local soil conditions (heavy clay vs sandy loam), field slope, and operating speed. Heavy tillage implements may require front ballast weights and wheel weights.
Fluids, Capacities & Working Autonomy
Standard fluid requirements, service intervals, and continuous runtime estimates for John Deere 5090R.
Estimated Continuous Field Runtime: 8.1 hrs
Approximately 8.1 hours of continuous field operation at ~75% rated power on a full tank (38 gal / 143.8 L).
Estimated 75% Load Fuel Burn~4.7 gal/hr (17.7 L/hr)
Engine Crankcase Oil
SAE 15W-40 (Heavy Duty Diesel)
Standard Spec: API CK-4 / CJ-4 Heavy Duty
Service Interval: 150 – 250 Hours
Transmission & Hydraulic System
UTTO (Universal Tractor Transmission Oil)
Standard Spec: ISO VG 46 / 68 (Wet Brake & Trans Compatible)
Service Interval: 600 – 1000 Hours
Engine Cooling System
50/50 Ethylene Glycol Pre-mix
Standard Spec: ASTM D6210 / Heavy-Duty OAT Antifreeze
Service Interval: 2 Years / 1500 Hours
John Deere 5090R Specification Unit Converter
Convert power, fluid capacities, and operating weights between metric and imperial standards for John Deere 5090R.
Converted Equivalents:
Horsepower (HP)90 hp
Kilowatts (kW)67.1 kW
Metric Horsepower (PS / CV)91.2 PS
