John Deere 5515
The John Deere 5515 is a tractor produced by John Deere. It is equipped with a 276 ci 4.5 L engine. The rated power output is 80 hp 59.7 kW. Transmission: 24 forward and 12 reverse. Operating weight: 6724 to 7055 pounds.
Engine Power
80 hp
59.7 kW
Fuel & Capacities
25.4 gal
96.1 L
Transmission
24 forward and 12 reverse
Operating Weight
6724 to 7055 pounds
John Deere 5515 Serial Number & Year Decoder
Find the exact manufacture year of your tractor by checking your chassis serial number below.
Where to Find the Serial NumberThe serial number plate is commonly located on the front frame, tractor transmission housing (right side), or instrument panel badge.
Overview
 | 2003 - 2008
Utility tractorAgritalia built |
|---|---|
2003 - 2008 | |
Utility tractor | |
Agritalia built | |
2003 - 2008 | |
|---|---|
Utility tractor | |
Agritalia built |
Production | |
|---|---|
Distributor | John Deere |
Manufacturer | Agritalia |
Utility tractor | |
Built in Italy | |
Variants | |
|---|---|
5515 | utility |
5515F | narrow |
5515V | narrow low-profile |
5515HC | High Crop high clearance tractor |
John Deere 5515 Engine | |
|---|---|
John Deere 4.5L 4-cyl diesel | |
Fuel tank | 25.4 gal
96.1 L |
Engine details ...  | |
John Deere 5515 Power | |
|---|---|
Engine (gross) | 82 hp
61.1 kW |
Engine (net) | 80 hp
59.7 kW |
Mechanical | |
|---|---|
Steering | hydrostatic power |
Hydraulic wet disc brakes | |
Trailer brakes | hydraulic *Optional. |
Hydraulics | |
|---|---|
Type | open center |
Pressure | 1900 psi
131.0 bar |
Pump flow | 12.4 gpm
46.9 lpm |
15.8 gpm (optional)
59.8 lpm | |
Steering flow | 6.5 gpm
24.6 lpm |
Steering press. | 2700 psi
186.2 bar |
Tractor hitch | |
|---|---|
Rear Type | 2/1 |
Rear lift (at ends) | 5,845 lbs
2651 kg |
Power Take-off (PTO) | |
|---|---|
Rear PTO | independent |
Clutch | dry disc |
Rear PTO Type | 540/540E/1000 |
Engine RPM | 540@1938 |
540E@1648 | |
1000@1962 | |
Dimensions & Tires | |
|---|---|
Weight | 6724 to 7055 pounds |
Full dimensions and tires ...  | |
Electrical | |
|---|---|
Ground | negative |
Charging system | alternator |
Charging amps | 40 (ROPS) |
65 (with cab) | |
Battery volts | 12 |
Battery AH | 100 |
Engine
| 2003 - 2008
Utility tractorAgritalia built |
|---|---|
2003 - 2008 | |
Utility tractor | |
Agritalia built | |
2003 - 2008 | |
|---|---|
Utility tractor | |
Agritalia built |
Engine Detail — 276 ci / 4.5 L Diesel
Manufacturer | John Deere 4045TAT70 |
Configuration | turbocharged diesel, 4-cylinder, liquid-cooled |
Displacement | 276 ci
4.5 L |
Bore/Stroke | 4.19x5.00 inches
106 x 127 mm |
Rated Power (net) | 80 hp
59.7 kW |
Rated Power (gross) | 82 hp
61.1 kW |
Compression | 17.0:1 |
Rated RPM | 2300 |
Idle RPM | 825-2510 |
Operating RPM | 1200-2300 |
Torque | 231.6 lb-ft
314.0 Nm |
Torque RPM | 1500 |
Firing order | 1-3-4-2 |
Starter | electric |
Starter volts | 12 |
Starter power | 3.8 hp
2.8 kW |
Coolant capacity | 12.6 qts (ROPS)
11.9 L |
13.7 qts (with cab)
13.0 L | |
Intake valve clearance | 0.014 inches
0.356 mm |
Exhaust valve clearance | 0.018 inches
0.457 mm |
Oil capacity | 8.5 qts
8.0 L |
Transmission
| 2003 - 2008
Utility tractorAgritalia built |
|---|---|
2003 - 2008 | |
Utility tractor | |
Agritalia built | |
2003 - 2008 | |
|---|---|
Utility tractor | |
Agritalia built |
Transmission options | |
|---|---|
12-speed partially synchronized | |
24-speed partially synchronized | |
24-speed two-speed power shift |

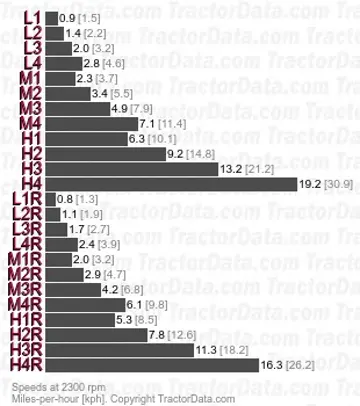

Transmission — 12 forward and reverse partially synchronized
Type | partially synchronized |
Gears | 12 forward and reverse |
Clutch | dry disc |
Four gears (1-4) in three ranges (A, B, C) with mechanical shuttle. Gear shifts are synchronized. | |
With 16.9R30 rear tires | |
 | |
Transmission — 24 forward and reverse partially synchronized
Type | partially synchronized |
Gears | 24 forward and reverse |
Clutch | dry disc |
Mechanical high-low added to base 12-speed transmission. | |
Transmission — 24 forward and 12 reverse two-speed power shift
Type | two-speed power shift |
Gears | 24 forward and 12 reverse |
Clutch | hydraulic |
Four gears (1-4) in three ranges (A, B, C) and electronically-shifted high/low. Left-hand power shuttle lever and push-button high/low shift. Push-button electric declutch button on gear shift allows for gear changes without foot clutch. | |
Dimensions
| 2003 - 2008
Utility tractorAgritalia built |
|---|---|
2003 - 2008 | |
Utility tractor | |
Agritalia built | |
2003 - 2008 | |
|---|---|
Utility tractor | |
Agritalia built |
John Deere 5515 Tires |
|---|
Dimensions | |
|---|---|
Length | 139.76 inches (5515F/V)
354 cm |
Clearance (front axle) | 8.94 inches (5515V)
22 cm |
10.83 inches (5515F 4WD)
27 cm | |
13.58 inches (5515F 2WD)
34 cm | |
15.75 inches (4WD)
40 cm | |
17.13 inches (2WD)
43 cm | |
John Deere 5515 Weight | |
|---|---|
Shipping | 6,724 lbs (2WD ROPS)
3050 kg |
7,055 lbs (4WD ROPS)
3200 kg | |
Max capacity | 11,023 lbs (2WD)
5000 kg |
11,244 lbs (4WD)
5100 kg | |
