John Deere 5320

The John Deere 5320 is a tractor produced by John Deere. It is equipped with a 179 ci 2.9 L engine. The rated power output is 64 hp 47.7 kW. Transmission: John Deere PowrReverser. Operating weight: 1533 lbs*Backhoe weight without bucket. 695 kg.

Overview

	2001 - 2004 5000 Twenty SeriesUtility tractor
2001 - 2004
5000 Twenty Series
Utility tractor

Production
Manufacturer	John Deere
Utility tractor
Built in Augusta, Georgia, USA
Original price	$25,000 (2004)

Variants
5320N	narrow chassis

John Deere 5320 Engine
John Deere 2.9L 3-cyl diesel
Engine details ...

John Deere 5320 Power
Engine	64 hp 47.7 kW
PTO (claimed)	55 hp 41.0 kW
PTO (tested)	58.63 hp 43.7 kW
Performance test details ...

Mechanical
Two- or four-wheel drive
Steering	hydrostatic power
Hydraulic wet disc brakes
ROPS with straddle-mount platform. Optional ROPS with isolated platform (IOOS). Optional cab.

Capacity
Fuel	18 gal (ROPS early) 68.1 L
	20 gal (ROPS late) 75.7 L
	27 gal (IOOS/cab small) 102.2 L
	29.5 gal (IOOS/cab large) 111.7 L
Hydraulic system	10 gal 37.9 L
	11.5 gal (PowrReverser) 43.5 L
Front axle	6.6 qts 6.2 L
Front hubs	0.74 qts (each) 0.7 L
Front diff.	5.2 qts 4.9 L

Hydraulics
Type	open center
Capacity	10 gal 37.9 L
	11.5 gal (PowrReverser) 43.5 L
Pressure	2800 psi 193.1 bar
Valves	2 to 3
Pump flow	11.4 gpm 43.1 lpm
Steering flow	6.8 gpm 25.7 lpm
Steering press.	1900 psi 131.0 bar

Tractor hitch
Rear Type	II/I
Rear lift (at 24"/610mm)	3,374 lbs 1530 kg

Power Take-off (PTO)
Rear PTO	independent
Rear PTO Type	540
	540/540E
Engine RPM	540@2400
	540E@1700

Dimensions & Tires
Wheelbase	80.7 inches (ROPS) 204 cm
	79 inches (2WD cab) 200 cm
	80 inches (4WD cab) 203 cm
Weight	3851 to 6306 pounds
Front tire	7.50-16
Rear tire	14.9-28
Full dimensions and tires ...

Links
Temperature sensor: potential cold-start advance sensor failure leading to a no-start condition

Electrical
Ground	negative
Charging system	alternator
Charging amps	40 (ROPS)
	60 (cab)
Battery CCA	700 (early)
	950 (late)
Battery volts	12
Battery Group	31

References
Grounds Care Equipment Purchasing Guide published in 2001, by John Deere
5020 Series Tractors published in 2004, by John Deere

Engine

Engine Detail — 179 ci / 2.9 L Diesel

Manufacturer	John Deere 3029T
Configuration	turbocharged diesel, 3-cylinder, liquid-cooled
Displacement	179 ci 2.9 L
Bore/Stroke	4.19x4.33 inches 106 x 110 mm
Power	64 hp 47.7 kW
Compression	17.8:1
Rated RPM	2400
Idle RPM	825-2625
Operating RPM	1600-2400
Torque	143.8 lb-ft 195.0 Nm
Torque RPM	1400
Firing order	1-2-3
Starter volts	12
Coolant capacity	10 qts 9.5 L
Intake valve clearance	0.014 inches 0.356 mm
Exhaust valve clearance	0.018 inches 0.457 mm
Oil capacity	9 qts 8.5 L
Oil change	100 h

Transmission

Transmission options

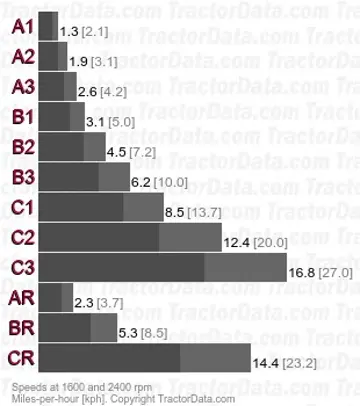

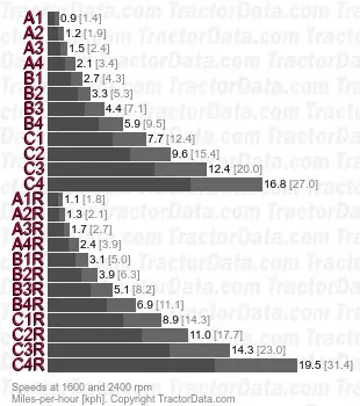

9-speed collar shift
9-speed partially synchronized
12-speed power shuttle

Transmission — 9 forward and 3 reverse collar shift

Manufacturer	John Deere
Type	collar shift
Gears	9 forward and 3 reverse
Clutch	dry disc
Oil capacity	40 qts 37.9 L
Three gears (1-3) plus reverse (R) in three ranges (A-C). Tractor must be stopped, and clutch used, to shift gears or range.
With 16.9-30 R1 rear tires.

Transmission — John Deere SyncShuttle

Transmission	John Deere SyncShuttle
Type	partially synchronized
Gears	9 forward and 3 reverse
Clutch	dry disc
Oil capacity	40 qts 37.9 L
Three gears (1-3) plus reverse (R) in three ranges (A-C). Gear and direction shifts are synchronized enabling shifting on the move with the clutch. Tractor must be stopped, and clutch used, to shift ranges.
With 16.9-30 R1 rear tires.

Transmission — John Deere PowrReverser

Transmission	John Deere PowrReverser
Type	power shuttle
Gears	12 forward and reverse
Clutch	wet disc
Oil capacity	46 qts 43.5 L
Four gears (1-4) in three ranges (A-C) with left-hand directional lever. Forward-reverse directional shifts may be done while moving, without the clutch. Gear shifts are synchronized. Tractor must be stopped to shift ranges.
With 16.9-30 R1 rear tires.

Dimensions

John Deere 5320 Tires
Ag front	7.50-16
Ag rear	14.9-28

Dimensions
Wheelbase	80.7 inches (ROPS) 204 cm
	79 inches (2WD cab) 200 cm
	80 inches (4WD cab) 203 cm
Length	137.8 inches (2WD ROPS) 350 cm
	142.6 inches (4WD ROPS) 362 cm
	139.5 inches (2WD cab) 354 cm
	142 inches (4WD cab) 360 cm
Width	72.5 inches (ROPS) 184 cm
	70.7 inches (cab) 179 cm
Ground clearance	18.8 inches (2WD) 47 cm
	16.9 inches (4WD) 42 cm

John Deere 5320 Weight
Shipping	3,851 lbs (2WD straddle ROPS) 1746 kg
	4,891 lbs (4WD straddle ROPS) 2218 kg
	4,116 lbs (2WD IOOS ROPS) 1867 kg
	5,206 lbs (4WD IOOS ROPS) 2361 kg
	5,266 lbs (2WD cab) 2388 kg
	6,306 lbs (4WD cab) 2860 kg
Max Drawbar	1,675 lbs (extended) 759 kg
	2,470 lbs (retracted) 1120 kg
Max front axle	4,700 lbs (2WD) 2131 kg
	7,050 lbs (2WD with loader) 3197 kg
	4,620 lbs (4WD) 2095 kg
	6,210 lbs (4WD with loader) 2816 kg
Max rear axle	8,360 lbs 3792 kg

John Deere 5320 Height
Steering wheel	63.6 inches (straddle) 161 cm
	70.1 inches (IOOS) 178 cm
Hood	53.8 inches (2WD) 136 cm
	54.7 inches (4WD) 138 cm
ROPS	94.8 inches 240 cm
	102.6 inches (IOOS) 260 cm
	76.1 inches (folded) 193 cm
	83.6 inches (IOOS folded) 212 cm
Cab	98.4 inches 249 cm

Tests

Nebraska Tractor Test 1755
Diesel 9-speed 4WD October 14 - 19, 1998 Link: Nebraska Tractor Test 1755 file
PTO performance
Max power	58.63 hp 43.7 kW
Fuel use	3.2 gal/hour 12.1 l/hour
Power at rated engine speed	55.94 hp 41.7 kW
Fuel use	3.4 gal/hour 12.9 l/hour

Attachments

Attachment overview
John Deere 510 loader
John Deere 521 loader
John Deere 541 loader
Backhoe

John Deere 49 Backhoe
Backhoe type	John Deere 49 Backhoe
Weight	1533 lbs*Backhoe weight without bucket. 695 kg
Transport height	94 inches 238 cm
2-Foot flat digging depth	115 inches 292 cm
Reach from pivot	149 inches 378 cm
Loading height	92 inches 233 cm
Bucket Rotation	180°
Swing Arc	180°
Bucket force	4575 lbs 2075 kg
Dipperstick force	3175 lbs 1440 kg
