New Holland 3930

The New Holland 3930 is a tractor produced by New Holland. It is equipped with a 193 ci 3.2 L engine. The rated power output is 52.54 hp 39.2 kW. Transmission: 8 forward and reverse. Operating weight: 5157 to 6025 pounds.

Overview

	1990 - 2002 30 SeriesUtility tractor
1990 - 2002
30 Series
Utility tractor

Series map: 34303930463046.0hp50.0hp*60.0hp3910↓ 1983-1989

Note: the New Holland model 3930 is the same as the Ford 3930. The following data is from the 3930 listing.

Production
Manufacturer	New Holland
Utility tractor
Built in Basildon, England
Original price	$24,400 (1999 2WD )
	$29,900 (1999 4WD )

New Holland 3930 Power
PTO (claimed)	45 hp (early) 33.6 kW
	52 hp (late) 38.8 kW
Drawbar (tested)	38.18 hp 28.5 kW
PTO (tested)	52.54 hp 39.2 kW
Performance test details ...

Mechanical
Two- or four-wheel drive
Differential lock	mechanical rear
Power steering
Wet disc brakes
Two-post ROPS. Cab optional.

Hydraulics
Type	open center
	closed center OptOptional
Pressure	2500 psi 172.4 bar
Valves	0 to 2 (open center)
	1 to 4 (closed center)
Pump flow	7.7 gpm 29.1 lpm
	12.8 gpmOptOptional 48.4 lpm
Steering flow	3.6 gpm 13.6 lpm

Tractor hitch
Rear Type	II/I
Control	position control with top link draft sensing
Rear lift	3080 lbs 1397 kg

Power Take-off (PTO)
Rear PTO	independent
Rear PTO Type	540
Engine RPM	540@1800
	540@1755 (shuttle)

Dimensions & Tires
2WD Wheelbase	84.5 inches 214 cm
4WD Wheelbase	84.1 inches 213 cm
Weight	5157 to 6025 pounds
Front tire	6.00-16
Rear tire	13.6-28
Full dimensions and tires ...

Electrical
Ground	negative
Charging system	alternator
ROPS Charging amps	55 (early)
ROPS Charging amps	45 (late)
Cab Charging amps	70
Battery CCA	800
Battery volts	12

References
Ford 30 Series published in 1995, by New Holland
30 Series Utility Tractors published in 1997, by New Holland
North American Buyer's Guide published in 1997, by New Holland

Engine

Series map: 34303930463046.0hp50.0hp*60.0hp3910↓ 1983-1989

Note: the New Holland model 3930 is the same as the Ford 3930. The following data is from the 3930 listing.

Engine options
Ford 3.3L 3-cyl diesel
Ford 3.2L 3-cyl diesel

Engine Detail — 201 ci / 3.3 L Diesel

Manufacturer	Ford
Fuel Type	Diesel
Configuration	3-cylinder, liquid-cooled
Original engine, used until 1995.
Displacement	201 ci 3.3 L
Bore/Stroke	4.40x4.40 inches 112 x 112 mm
Compression	16.3:1
Rated RPM	2000
Starter volts	12

Engine Detail — 193 ci / 3.2 L Diesel

Manufacturer	Ford
Fuel Type	Diesel
Configuration	3-cylinder, liquid-cooled
The 3.1-liter engine was introduced in 1995, tractor serial number BD81400.
Displacement	193 ci 3.2 L
Bore/Stroke	4.40x4.20 inches 112 x 107 mm
Air cleaner	dual paper elements
Compression	16.3:1
Rated RPM	2200
Starter volts	12

Engine Detail — 193 ci / 3.2 L Diesel

Manufacturer	Ford
Configuration	turbocharged diesel, 3-cylinder, liquid-cooled, The turbocharged 3.1-liter engine was introduced in 1999.
Displacement	193 ci 3.2 L
Bore/Stroke	4.40x4.20 inches 112 x 107 mm
Air cleaner	dual paper elements
Rated RPM	2200
Starter volts	12

Transmission

Series map: 34303930463046.0hp50.0hp*60.0hp3910↓ 1983-1989

Note: the New Holland model 3930 is the same as the Ford 3930. The following data is from the 3930 listing.

Transmission options
8-speed gear
8-speed synchronized shuttle

Transmission — 8 forward and 2 reverse gear

Type	gear
Gears	8 forward and 2 reverse
Clutch	dry disc

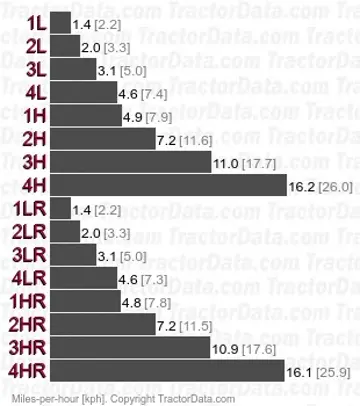

Transmission — 8 forward and reverse synchronized shuttle

Type	synchronized shuttle
Gears	8 forward and reverse
Clutch	dry disc

Dimensions

Series map: 34303930463046.0hp50.0hp*60.0hp3910↓ 1983-1989

Note: the New Holland model 3930 is the same as the Ford 3930. The following data is from the 3930 listing.

New Holland 3930 Tires
Ag front	6.00-16
Ag rear	13.6-28

Dimensions
2WD Wheelbase	84.5 inches 214 cm
4WD Wheelbase	84.1 inches 213 cm
Length	137 inches 347 cm
Width	69.5 inches*Minimum width across fenders. 176 cm
Ground clearance	13.5 inches 34 cm

New Holland 3930 Weight
2WD ROPS Shipping	5157 lbs 2339 kg
4WD ROPS Shipping	6025 lbs 2732 kg
4WD ROPS Operating	5446 lbs 2470 kg

New Holland 3930 Height
ROPS	91.3 inches 231 cm
Cab	96 inches 243 cm
Exhaust	84.5 inches 214 cm

Tests

Series map: 34303930463046.0hp50.0hp*60.0hp3910↓ 1983-1989

Note: the New Holland model 3930 is the same as the Ford 3930. The following data is from the 3930 listing.

Tractor Tests
OECD 1644: 3.3L diesel 8x2 speed 4WD
OECD 1341: diesel 8x8 speed
OECD 1701: 3.1L diesel 8x2 speed 4WD
OECD 1702: 3.1L diesel 8x8 speed 4WD
OECD 1702S: 3.1L turbo-diesel 8x8 speed 4WD

OCED Tractor Test 1644
3.3L diesel 8x2 speed 4WD April 8 - 25, 1991 Link: OCED Tractor Test 1644 file
PTO performance
Power at rated engine speed	45.85 hp 34.2 kW
Fuel use	2.8 gal/hour 10.6 l/hour
Power at rated PTO speed	43.65 hp 32.5 kW
Fuel use	2.6 gal/hour 9.8 l/hour
Drawbar performance
Max power	38.18 hp 28.5 kW
Fuel use	2.9 gal/hour 11.0 l/hour
Gear 1H used for power test.
Max pull	4,807 lbs 2180 kg
Gear 2L used for pull test.

OCED Tractor Test 1341
Diesel 8x8 speed
PTO performance
Max power	44.3 hp 33.0 kW
Fuel use	2.9 gal/hour 11.0 l/hour
Drawbar performance
Max power	35.1 hp 26.2 kW

OCED Tractor Test 1701
3.1L diesel 8x2 speed 4WD October 17 - 27, 1995 Link: OCED Tractor Test 1701 file
PTO performance
Power at rated engine speed	45.58 hp 34.0 kW
Fuel use	3.0 gal/hour 11.4 l/hour
Power at rated PTO speed	41.22 hp 30.7 kW
Fuel use	2.6 gal/hour 9.8 l/hour
Drawbar performance
Max power	37.33 hp 27.8 kW
Gear 1H used for power test.
Max pull	5,026 lbs 2279 kg
Gear 2L used for pull test.

OCED Tractor Test 1702
3.1L diesel 8x8 speed 4WD October 2 - 27, 1995 Link: OCED Tractor Test 1702 file
PTO performance
Power at rated engine speed	46.23 hp 34.5 kW
Fuel use	3.2 gal/hour 12.1 l/hour
Power at rated PTO speed	41.81 hp 31.2 kW
Fuel use	2.7 gal/hour 10.2 l/hour
Drawbar performance
Max power	37.19 hp 27.7 kW
Fuel use	3.1 gal/hour 11.7 l/hour
Gear 1H used for power test.
Max pull	4,480 lbs 2032 kg
Gear 3L used for pull test.

OCED Tractor Test 1702S
3.1L turbo-diesel 8x8 speed 4WD 1998
PTO performance
Power at rated engine speed	52.54 hp 39.2 kW

Attachments

Series map: 34303930463046.0hp50.0hp*60.0hp3910↓ 1983-1989

Note: the New Holland model 3930 is the same as the Ford 3930. The following data is from the 3930 listing.

Attachment overview
Ford 7209 loader
Ford 7210 loader
Ford 7310 loader
Ford 7410 loader

Photos

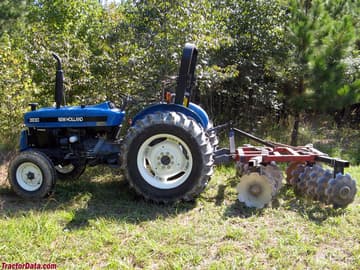

New Holland - Ford 3930 with disc.
