Kubota M5660SU
The Kubota M5660SU is a tractor produced by Kubota. It is equipped with a 148.5 ci 2.4 L engine. The rated power output is 56 hp 41.8 kW. Transmission: 8 forward and reverse. Operating weight: 4189 to 4387 pounds.
Engine Power
56 hp
41.8 kW
Fuel & Capacities
17.7 gal
67.0 L
Transmission
8 forward and reverse
Operating Weight
4189 to 4387 pounds
Kubota M5660SU Serial Number & Year Decoder
Find the exact manufacture year of your tractor by checking your chassis serial number below.
Where to Find the Serial NumberThe serial number plate is commonly located on the front frame, tractor transmission housing (right side), or instrument panel badge.
Overview
 | 2015 -
Utility tractor |
|---|---|
2015 - | |
Utility tractor | |
Production | |
|---|---|
Manufacturer | Kubota |
Utility tractor | |
Variants | |
|---|---|
M5660SUH | 2WD |
M5660SUHD | 4WD |
Kubota M5660SU Engine | |
|---|---|
Kubota 2.4L 4-cyl diesel | |
Fuel tank | 17.7 gal
67.0 L |
Engine details ...  | |
Kubota M5660SU Transmission | |
|---|---|
8-speed shuttle | |
Transmission details ...  |
Kubota M5660SU Power | |
|---|---|
Engine (gross) | 57.9 hp
43.2 kW |
Engine (net) | 56 hp
41.8 kW |
PTO (claimed) | 50 hp
37.3 kW |
Mechanical | |
|---|---|
Two- or four-wheel drive | |
Differential lock | mechanical rear |
Steering | hydrostatic power |
Mechanical wet disc brakes | |
Two-post foldable ROPS. | |
Hydraulics | |
|---|---|
Type | open center |
Valves | 1 to 3 |
Pump flow | 10.6 gpm
40.1 lpm |
Tractor hitch | |
|---|---|
Rear Type | II/I |
Control | position control |
Rear lift (at 24"/610mm) | 3307 lbs
1500 kg |
Rear Arms | telescoping lower links |
Power Take-off (PTO) | |
|---|---|
Rear PTO | independent |
Clutch | electro-hydraulic wet disc |
Rear PTO Type | 540 (1.375) |
540/540E (1.375) | |
Dimensions & Tires | |
|---|---|
2WD Wheelbase | 82 inches
208 cm |
4WD Wheelbase | 80.7 inches
204 cm |
Weight | 4189 to 4387 pounds |
Front tire | 6.5-16 |
2WD Rear tire | 14.9-28 |
Full dimensions and tires ...  | |
Electrical | |
|---|---|
Ground | negative |
Charging system | alternator |
Charging amps | 45 |
Battery volts | 12 |
Engine
Engine Detail — 148.5 ci / 2.4 L Diesel
Manufacturer | Kubota V2403-CR-TE4 |
Configuration | turbocharged diesel, 4-cylinder, liquid-cooled |
Displacement | 148.5 ci
2.4 L |
Emissions | Tier 4 |
Emission control | diesel particulate filter (DPF) |
Power (net) | 56 hp
41.8 kW |
Rated Power (gross) | 57.9 hp
43.2 kW |
Fuel system | common rail direct injection |
Air cleaner | dual dry element |
Rated RPM | 2600 |
Starter | electric |
Starter volts | 12 |
Transmission

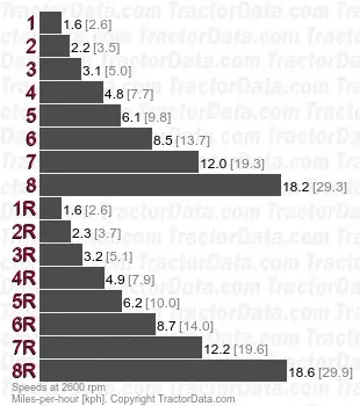

Transmission — 8 forward and reverse shuttle
Type | shuttle |
Gears | 8 forward and reverse |
Clutch | wet disc |
Four synchronized gears in two ranges with hydraulic shuttle. | |
 | |
Dimensions
Kubota M5660SU Tires | |
|---|---|
2WD Standard tires (ag) | Front: 6.5-16. Rear: 14.9-28 |
4WD Standard tires (ag) | Front: 8.3-24. Rear: 14.9-28 |
Dimensions | |
|---|---|
2WD Wheelbase | 82 inches
208 cm |
4WD Wheelbase | 80.7 inches
204 cm |
2WD Length | 138.7 inches
352 cm |
4WD Length | 136 inches
345 cm |
Width | 73.2 inches*Minimum
185 cm |
Height (ROPS) | 95.3 inches
242 cm |
2WD Weight | 4189 lbs
1900 kg |
4WD Weight | 4387 lbs
1989 kg |
Ground clearance | 16.3 inches
41 cm |
2WD Front tread | 55.9/71.7 inches
141/182 cm |
4WD Front tread | 51.2/55.1 inches
130/139 cm |
Rear tread | 52/67.7 inches
132/171 cm |
Photos
Kubota M5660SU
Kubota M5660SU
Kubota M5660SUH, right side.
Hitch and PTO on the Kubota M5660SUH.
