John Deere 5325

The John Deere 5325 is a tractor produced by John Deere. It is equipped with a 186.1 ci 3.1 L engine. The rated power output is 67 hp 50.0 kW. Transmission: John Deere PowrReverser Hi/Lo. Operating weight: 5350 to 6760 pounds.

Overview

	2005 - 2008 5025 SeriesUtility tractor
2005 - 2008
5025 Series
Utility tractor

Production
Manufacturer	John Deere
Utility tractor
Built in Augusta, Georgia, USA

Variants
5325	utility
5325N	narrow-profile

John Deere 5325 Engine
John Deere 3.1L 5-cyl diesel
Engine details ...

John Deere 5325 Power
Engine (gross)	67 hp 50.0 kW
PTO (claimed)	55 hp 41.0 kW
PTO (tested)	57.27 hp 42.7 kW
Performance test details ...

Mechanical
Two- or four-wheel drive
Final drives	inboard planetary
Differential lock	mechanical rear
Power steering
Differential hydraulic wet disc brakes
Open operator station with two-post folding ROPS. Optional isolated flat-platform (IOOS). Cab available with air-conditioning.

Capacity
Fuel	25 gal (straddle) 94.6 L
	33.5 gal (IOOS/cab) 126.8 L
Hydraulic system	10.3 gal (9-speed) 39.0 L
	11.5 gal (12-speed) 43.5 L
Front hubs	0.74 qts*Each 0.7 L
Front diff.	4.8 qts 4.5 L

Hydraulics
Type	open center
Capacity	10.3 gal (9-speed) 39.0 L
	11.5 gal (12-speed) 43.5 L
Pressure	2828 psi 195.0 bar
Rear valves	1 to 3
Mid valves	0, 2 or 3
Pump flow	13.5 gpm 51.1 lpm
Total flow	19.4 gpm 73.4 lpm
Steering flow	5.9 gpm 22.3 lpm
Steering press.	1957 psi 134.9 bar

Tractor hitch
Rear Type	II/I
Control	top-link draft sensing
Rear lift (at 24"/610mm)	3374 lbs 1530 kg

Power Take-off (PTO)
Rear PTO	independent
Clutch	dry disc
	electro-hydraulic wet disc (24-speed)
Rear PTO Type	540
	540/540E OptOptional
	540/1000 *Optional field conversion kit.
Engine RPM	540@2400
	540E@1700

Dimensions & Tires
Wheelbase	85.7 inches 217 cm
Weight	5350 to 6760 pounds
Front tire	7.50-16
2WD Rear tire	14.9-28
Full dimensions and tires ...

Electrical
Ground	negative
Charging system	alternator
ROPS Charging amps	70
Cab Charging amps	90
Battery CCA	950
Battery volts	12
Battery Group	BCI 31

References
Commercial & Consumer Equipment Purchasing Guide published in 2007, by John Deere
5000 Series Value Selling Guide published in 2005, by John Deere
5025 Series Tractors published in 2005, by John Deere
5025 Series Tractors published in 2007, by John Deere
Operator's Guide 5225, 5325, 5425 and 5625 Tractors (OMRE260579) published in 2007
Commercial & Consumer Equipment Purchase Guide published in 2005, by John Deere

Engine

Engine Detail — 186.1 ci / 3.1 L Diesel

Manufacturer	John Deere
Configuration	turbocharged diesel, 5-cylinder, liquid-cooled
Displacement	186.1 ci 3.1 L
Bore/Stroke	3.385x4.134 inches 86 x 105 mm
Emissions	Tier II
Power (gross)	67 hp 50.0 kW
Air cleaner	paper and felt elements
Compression	20.5:1
Rated RPM	2400
Idle RPM	900-2625
Operating RPM	1600-2400
Starter volts	12
Coolant capacity	10 qts 9.5 L
Oil capacity	11 qts 10.4 L

Transmission

Transmission options
9-speed partially synchronized
12-speed power shuttle
24-speed two-speed power shift

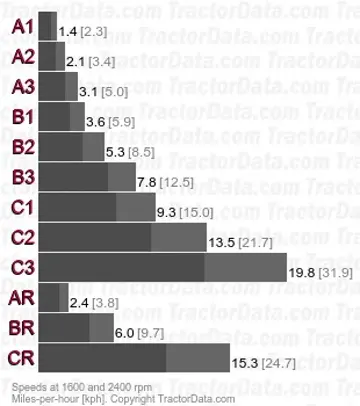

Transmission — John Deere SyncShuttle

Transmission	John Deere SyncShuttle
Type	partially synchronized
Gears	9 forward and 3 reverse
Clutch	dry disc
Oil capacity	41.2 qts 39.0 L
Oil type	122o↔-10oF [50o↔-23oC] : Hy-Gard 86o↔-40oF [30o↔-40oC] : Low-Viscosity Hy-Gard	122o↔-10oF [50o↔-23oC]	: Hy-Gard	86o↔-40oF [30o↔-40oC]	: Low-Viscosity Hy-Gard
122o↔-10oF [50o↔-23oC]	: Hy-Gard
86o↔-40oF [30o↔-40oC]	: Low-Viscosity Hy-Gard
Three gears (1-3) plus reverse in three ranges (A-C). Gears may be shifted on the move using the clutch. Tractor must be stopped, and clutch used, to shift ranges.
With 16.9-30 rear tires.

122o↔-10oF [50o↔-23oC]	: Hy-Gard
86o↔-40oF [30o↔-40oC]	: Low-Viscosity Hy-Gard

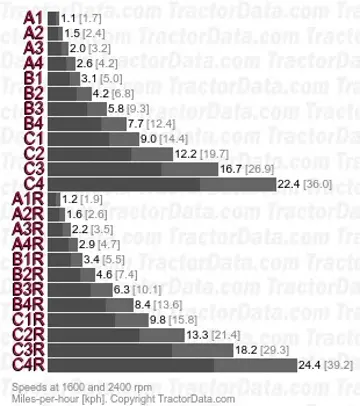

Transmission — John Deere PowrReverser

Transmission	John Deere PowrReverser
Type	power shuttle
Gears	12 forward and reverse
Clutch	wet disc
Oil capacity	46 qts 43.5 L
Oil type	122o↔-10oF [50o↔-23oC] : Hy-Gard 86o↔-40oF [30o↔-40oC] : Low-Viscosity Hy-Gard	122o↔-10oF [50o↔-23oC]	: Hy-Gard	86o↔-40oF [30o↔-40oC]	: Low-Viscosity Hy-Gard
122o↔-10oF [50o↔-23oC]	: Hy-Gard
86o↔-40oF [30o↔-40oC]	: Low-Viscosity Hy-Gard
Four gears (1-4) in three ranges (A-C) with reverser lever. Direction may be changed without using the clutch. Gear shifts are synchronized using the clutch. Tractor must be stopped to shift ranges.
With 16.9-30 rear tires.

122o↔-10oF [50o↔-23oC]	: Hy-Gard
86o↔-40oF [30o↔-40oC]	: Low-Viscosity Hy-Gard

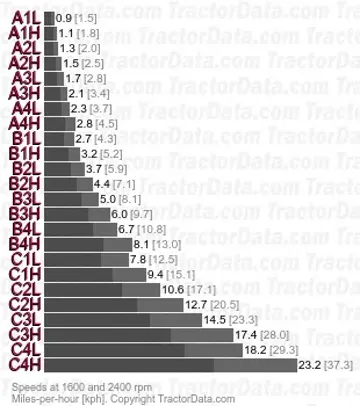

Transmission — John Deere PowrReverser Hi/Lo

Transmission	John Deere PowrReverser Hi/Lo
Type	two-speed power shift
Gears	24 forward and reverse
Clutch	wet disc
Adds a push-button high-low power shift to the PowrReverser transmission. Gear shifts are synchronized using the clutch. Tractor must be stopped to shift ranges.
With 16.90-30 rear tires. Reverse speeds are 10% faster than forward speeds.

Dimensions

John Deere 5325 Tires
2WD Standard tires (ag)	Front: 7.50-16. Rear: 14.9-28
4WD Standard tires (ag)	Front: 9.5-24. Rear: 14.9-28

Dimensions
Wheelbase	85.7 inches 217 cm
2WD Length	137.8 inches 350 cm
4WD Length	142.6 inches 362 cm
2WD Clearance (front axle)	18.8 inches 47 cm
4WD Clearance (front axle)	16.9 inches 42 cm
Clearance (drawbar)	15.9 inches 40 cm
Flange rear axle	64.7 inch length 1643 mm
2WD Front tread	57.6 to 77.3 inches 146 to 196 cm
4WD Front tread	52.8 to 77 inches 134 to 195 cm
Rear tread	65.3 inches 165 cm
Rear tread	55.8 to 71.7 inches 141 to 182 cm

John Deere 5325 Weight
Shipping	5350 lbs (2WD straddle) 2426 kg
	5935 lbs (4WD straddle) 2692 kg
	5485 lbs (2WD IOOS) 2487 kg
	6030 lbs (4WD IOOS) 2735 kg
	5995 lbs (2WD cab) 2719 kg
	6580 lbs (4WD cab) 2984 kg
4WD Cab Operating	6760 lbs 3066 kg
Max Drawbar	1675 lbs (extended) 759 kg
	2470 lbs (retracted) 1120 kg

John Deere 5325 Height
Steering wheel	63.6 inches (straddle) 161 cm
	70.1 inches (IOOS) 178 cm
2WD Hood	53.8 inches 136 cm
4WD Hood	54.7 inches 138 cm
ROPS	94.8 inches (straddle) 240 cm
	102.6 inches (IOOS) 260 cm
Height (Folded ROPS)	76.6 inches (straddle) 194 cm
	83.6 inches (IOOS) 212 cm
Cab	97.4 inches 247 cm
Exhaust	89.4 inches (straddle) 227 cm
	88.2 inches (IOOS) 224 cm

Tests

Nebraska Tractor Test 1867
Diesel 9-speed 4WD November 17 - 23, 2005 Link: Nebraska Tractor Test 1867 file
PTO performance
Max power	57.27 hp 42.7 kW
Fuel use	3.6 gal/hour 13.6 l/hour
Power at rated engine speed	56.16 hp 41.9 kW
Fuel use	4.0 gal/hour 15.1 l/hour

Attachments

Attachment overview
John Deere 512 loader
John Deere 522 loader
John Deere 542 loader
John Deere 542SL loader
Backhoe

John Deere 49 Backhoe
Backhoe type	John Deere 49 Backhoe
Transport height	94 inches 238 cm
Bucket width	14 inches 35 cm
	18 inches 45 cm
	24 inches 60 cm
	36 inches 91 cm
	40 inches 101 cm
2-Foot flat digging depth	115 inches 292 cm
Reach from pivot	149 inches 378 cm
Loading height	92 inches 233 cm
Bucket Rotation	180°
Swing Arc	180°
Bucket force	4575 lbs 2075 kg
Dipperstick force	3175 lbs 1440 kg
