John Deere 6010SE

The John Deere 6010SE is a tractor produced by John Deere. It is equipped with a 276.4 ci 4.5 L engine. The listed engine power is Diesel (net): 75 hp / 55.9 kW. Transmission: PowerQuad. Operating weight: 8514 lbs 3861 kg.

Engine Power

Diesel (net): 75 hp / 55.9 kW

Fuel & Capacities

43.6 gal 165.0 L

Transmission

PowerQuad

Operating Weight

8514 lbs 3861 kg

Overview

	1998 - 2003 6010SE SeriesUtility tractor 6010SE Series Utility tractor

Production
Manufacturer	John Deere
Utility tractor

John Deere 6010SE Engine
John Deere 4.5L 4-cyl diesel
Engine details ...

John Deere 6010SE Power
Engine (net)	75 hp 55.9 kW

Mechanical
Two- or four-wheel drive
Differential lock	electro-hydraulic rear
Power steering
Hydraulic wet disc brakes
Trailer brakes	hydraulic OptOptional
	pneumatic OptOptional
Cab standard with heat. Optional air-conditioning.

Capacity
Fuel	43.6 gal 165.0 L
	30.6 gal (LP Cab) 115.8 L
Hydraulic system	14.5 gal 54.9 L

Hydraulics
Type	load sensing
Capacity	14.5 gal 54.9 L
Pressure	2901 psi 200.0 bar
Valves	4 OptOptional
Pump flow	14.3 gpm 54.1 lpm

Tractor hitch
Rear Type	II
Control	electronic lower-link draft sensing
Rear lift	8970 lbs 4068 kg

Power Take-off (PTO)
Rear PTO	independent
Clutch	electro-hydraulic wet disc
Rear PTO Type	540
	540/1000
	540/540E/1000
Engine RPM	540@2124
	1000@2208
	540E@1684
Front PTO	independent
Clutch	electro-hydraulic wet disc
Front PTO Type	1000
Engine RPM	1000@2185

Dimensions & Tires
Wheelbase	94.5 inches 240 cm
Weight	8514 lbs 3861 kg
Front tire	12.4R24
Rear tire	16.9R30
Full dimensions and tires ...

Electrical
Ground	negative
Charging system	alternator
Charging amps	90
Battery volts	12
Battery AH	110

References

6010 SE Series Tractors published in 2002, by John Deere

Engine

Engine Detail — 276.4 ci / 4.5 L Diesel

Manufacturer	John Deere
Fuel Type	Diesel
Configuration	4-cylinder, liquid-cooled
Displacement	276.4 ci 4.5 L
Bore/Stroke	4.19x5.00 inches 106 x 127 mm
Rated Power (net)	75 hp 55.9 kW
Cooling system	viscous-drive fan
Air cleaner	dry
Rated RPM	2300
Torque	222.7 lb-ft 302.0 Nm
Torque RPM	1300
Starter	electric
Starter volts	12
Oil capacity	12.7 qts 12.0 L
Coolant capacity	14.3 qts 13.5 L

Transmission

Transmission options
12-speed synchronized
16-speed power shuttle
16-speed four-speed power shift

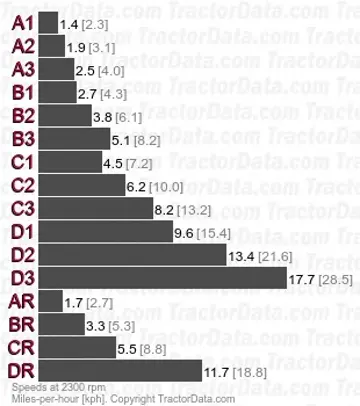

Transmission — SynchroPlus

Transmission	SynchroPlus
Type	synchronized
Gears	12 forward and 4 reverse
Clutch	225mm wet discs
Oil change	250 h
Three synchronized gears, plus reverse, in four synchronized ranges.
With 14.9-38 rear tires.

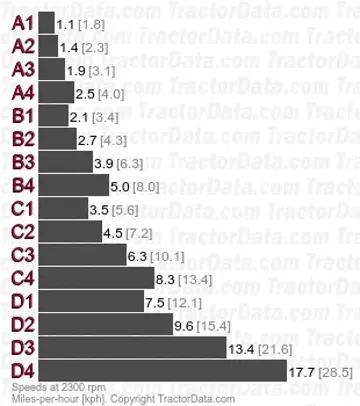

Transmission — Power Reverser

Transmission	Power Reverser
Type	power shuttle
Gears	16 forward and reverse
Clutch	225mm wet discs
Four synchronized gears in four synchronized ranges with power shuttle.
With 14.9-38 rear tires and 30KPH transmission option. Rear speeds are 20% faster than forward.

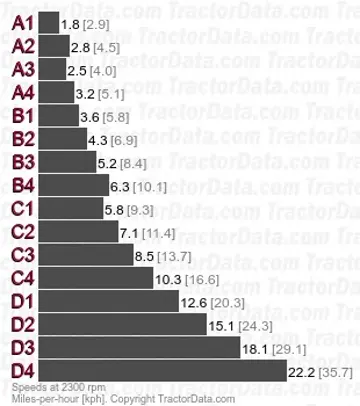

Transmission — PowerQuad

Transmission	PowerQuad
Type	four-speed power shift
Gears	16 forward and reverse
Clutch	225mm wet discs
Four power shift gears in four synchronized ranges with power shuttle.
With 14.9-38 rear tires and 40KPH transmission option. Rear speeds are 20% faster than forward.

Dimensions

John Deere 6010SE Tires
Standard tires (ag)	Front: 12.4R24. Rear: 16.9R30

Dimensions
Wheelbase	94.5 inches 240 cm
Length	162.4 inches 412 cm
Width	85.6 inches 217 cm
Height (cab)	102.1 inches 259 cm
	98 inches (LP Cab) 248 cm
Shipping weight	8514 lbs 3861 kg
Max weight	15432 lbs 6999 kg

Recommended Implements & Sizing Guide

Engineering recommendations for John Deere 6010SE based on its 75 HP power envelope and ASAE agricultural standards.

Implement & Operation	Recommended Size	Workload Rating	Engineering Notes
Moldboard PlowPrimary Tillage	3 to 4 Bottom (16")3 - 4 铧 (40 cm)	Heavy Duty	Suitable for medium loam and stubble turnover.
Rotary Cutter / MowerMowing & Clearing	7 to 8 ft (84-96 in)2.1 - 2.4 m	Heavy Duty	Heavy-duty twin spindle cutter for overgrown acreage.
Rotary TillerSeedbed Prep	78 to 84 in200 - 215 cm	Heavy Duty	Heavy commercial tiller with multi-speed gearbox.
Disc HarrowSecondary Tillage	10 to 14 ft Tandem / Offset3.0 - 4.2 m 重型交错耙	Heavy Duty	Aggressive residue cutting in corn/cotton stubble.
Hay BalerHay & Forage	4x4 to 4x5 Round Baler1.2x1.5 m 紧凑圆捆机	Heavy Duty	Silage and dry hay; 540 RPM PTO with slip-clutch.

Sizing & Soil Condition NoteActual implement sizing varies depending on local soil conditions (heavy clay vs sandy loam), field slope, and operating speed. Heavy tillage implements may require front ballast weights and wheel weights.

Fluids, Capacities & Working Autonomy

Standard fluid requirements, service intervals, and continuous runtime estimates for John Deere 6010SE.

Estimated Continuous Field Runtime: 11.2 hrs

Approximately 11.2 hours of continuous field operation at ~75% rated power on a full tank (43.6 gal / 165 L).

Estimated 75% Load Fuel Burn~3.9 gal/hr (14.8 L/hr)

Engine Crankcase Oil

SAE 15W-40 (Heavy Duty Diesel)

Standard Spec: API CK-4 / CJ-4 Heavy Duty

Service Interval: 150 – 250 Hours

Transmission & Hydraulic System

UTTO (Universal Tractor Transmission Oil)

Standard Spec: ISO VG 46 / 68 (Wet Brake & Trans Compatible)

Service Interval: 600 – 1000 Hours

Engine Cooling System

50/50 Ethylene Glycol Pre-mix

Standard Spec: ASTM D6210 / Heavy-Duty OAT Antifreeze

Service Interval: 2 Years / 1500 Hours
