John Deere 6105D
The John Deere 6105D is a tractor produced by John Deere. It is equipped with a 275 ci 4.5 L engine. The listed engine power is Diesel (gross): 105 hp / 78.3 kW. Transmission: Hi-Lo PowrReverser. Operating weight: 7916 to 10000 pounds.
Engine Power
Diesel (gross): 105 hp / 78.3 kW
Fuel & Capacities
41.7 gal
157.8 L
Transmission
Hi-Lo PowrReverser
Operating Weight
7916 to 10000 pounds
Overview
 | 2013 - 2016
6D SeriesUtility tractor
6D Series
Utility tractor |
|---|
Production | |
|---|---|
Manufacturer | John Deere |
Utility tractor | |
Built in Saltillo, Mexico | |
Original price | $47,396 (2014 ROPS 2WD ) |
$62,966 (2014 Cab 4WD ) | |
John Deere 6105D Engine | |
|---|---|
John Deere 4.5L 4-cyl diesel | |
Fuel tank | 41.7 gal
157.8 L |
Engine details ...  | |
John Deere 6105D Power | |
|---|---|
Engine (gross) | 105 hp
78.3 kW |
PTO (claimed) | 87 hp
64.9 kW |
PTO (tested) | 91.22 hp
68.0 kW |
Performance test details ...  | |
Mechanical | |
|---|---|
Two- or four-wheel drive | |
Final drives | inboard planetary |
Differential lock | mechanical rear |
limited-slip front differential (4WD) | |
Power steering | |
Hydraulic wet disc brakes | |
Two-post foldable ROPS. Cab optional with air-conditioning. | |
Hydraulics | |
|---|---|
Type | open center |
Pressure | 2828 psi
195.0 bar |
Valves | 2 or 3 |
Pump flow | 20 gpm
75.7 lpm |
SCV flow | 20 gpm
75.7 lpm |
Tractor hitch | |
|---|---|
Rear Type | II |
Control | position control |
draft-control optional | |
Rear lift (at 24"/610mm) | 5500 lbs
2494 kg |
7300 lbs (optional)
3311 kg | |
Drawbar | Cat. II |
Power Take-off (PTO) | |
|---|---|
Rear PTO | independent |
Rear PTO Type | 540/1000 (1.375) |
Engine RPM | 540@2085 |
1000@2067 | |
Dimensions & Tires | |
|---|---|
2WD Wheelbase | 96.7 inches
245 cm |
4WD Wheelbase | 96.5 inches
245 cm |
Weight | 7916 to 10000 pounds |
Front tire | 10.00-16 |
2WD Rear tire | 18.4-34 |
Full dimensions and tires ...  | |
Electrical | |
|---|---|
Ground | negative |
Battery volts | 12 |
Engine
Engine Detail — 275 ci / 4.5 L Diesel
Manufacturer | John Deere PowerTech PWX |
Configuration | wastegate turbocharger with aftercooled diesel, 4-cylinder 16-valve, liquid-cooled |
Displacement | 275 ci
4.5 L |
Bore/Stroke | 4.17x5.00 inches
106 x 127 mm |
Emissions | Interim Tier IV |
Emission control | cooled exhaust gas recirculation |
Rated Power (gross) | 105 hp
78.3 kW |
Compression | 19:1 |
Rated RPM | 2200 |
Torque | 312 lb-ft
423.1 Nm |
Torque RPM | 1600 |
Starter | electric |
Starter volts | 12 |
Oil capacity | 15.85 qts
15.0 L |
Coolant capacity | 18.7 qts
17.7 L |
Transmission
Transmission options | |
|---|---|
9-speed partially synchronized | |
12-speed partially synchronized | |
24-speed partially synchronized |

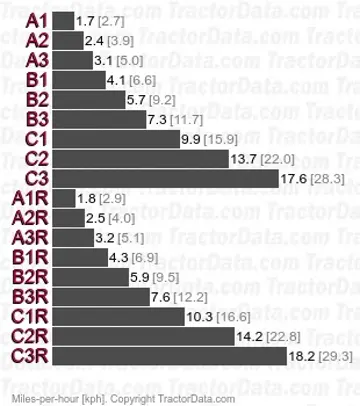

Transmission — Top Shaft Synchronized PowrReverser
Transmission | Top Shaft Synchronized PowrReverser |
Type | partially synchronized |
Gears | 9 forward and reverse |
Clutch | wet disc |
Three synchronized gears (1-3) in three ranges (A-C) with power shuttle. Tractor must be stopped to shift ranges. | |
With 18.4-34 rear tires. | |
 | |
Transmission — 12-Speed PowrReverser
Transmission | 12-Speed PowrReverser |
Type | partially synchronized |
Gears | 12 forward and reverse |
Clutch | wet disc |
Four synchronized gears (1-4) in three ranges (A-C) with power shuttle. Tractor must be stopped to shift ranges. The 12-speed transmission became standard in 2014. | |
Transmission — Hi-Lo PowrReverser
Transmission | Hi-Lo PowrReverser |
Type | partially synchronized |
Gears | 24 forward and 12 reverse |
Clutch | wet disc |
Four synchronized gears (1-4) in three ranges (A-C) with power shuttle and two-speed high/low shift. Tractor must be stopped to shift ranges. The high-low became an optiona transmission in 2014. | |
Dimensions
John Deere 6105D Tires | |
|---|---|
2WD Standard tires (ag) | Front: 10.00-16. Rear: 18.4-34 |
4WD Standard tires (ag) | Front: 13.6-24. Rear: 18.4-34 |
Dimensions | |
|---|---|
2WD Wheelbase | 96.7 inches
245 cm |
4WD Wheelbase | 96.5 inches
245 cm |
2WD Length | 168.5 inches
427 cm |
4WD Length | 166 inches
421 cm |
Width | 96.5 inches*Width at rear axle flange.
245 cm |
Height (cab) | 108 inches
274 cm |
Height (exhaust) | 110 inches
279 cm |
2WD Clearance (front axle) | 23.5 inches
59 cm |
4WD Clearance (front axle) | 18 inches
45 cm |
Flange rear axle | |
Front tread | 60.4 to 80.4 inches
153 to 204 cm (2WD) |
Front tread | 59.7 to 79.4 inches
151 to 201 cm (4WD) |
John Deere 6105D Weight | |
|---|---|
2WD ROPS Shipping | 7916 lbs
3590 kg |
4WD ROPS Shipping | 9150 lbs
4150 kg |
2WD Cab Shipping | 8200 lbs
3719 kg |
4WD Cab Shipping | 10000 lbs
4536 kg |
4WD Cab Operating | 9760 lbs
4427 kg |
Ballasted | 14374 lbs
6520 kg |
Max capacity | 17636 lbs
7999 kg |
Tests
Nebraska Tractor Test 2055 | |
|---|---|
Diesel 9-speed 4WD
March 29 - April 8, 2013
Link: Nebraska Tractor Test 2055 file | |
PTO performance | |
Max power | 91.22 hp
68.0 kW |
Fuel use | 5.3 gal/hour
20.1 l/hour |
Attachments
Attachment overview | |
|---|---|
John Deere H260 loader | |
John Deere H310 loader |
Recommended Implements & Sizing Guide
Engineering recommendations for John Deere 6105D based on its 105 HP power envelope and ASAE agricultural standards.
| Implement & Operation | Recommended Size | Workload Rating | Engineering Notes |
|---|---|---|---|
Moldboard PlowPrimary Tillage | 4 to 5 Bottom (16-18")4 - 5 铧 (40-45 cm) | Heavy Duty | Heavy primary tillage; semi-mounted hitch recommended. |
Rotary Cutter / MowerMowing & Clearing | 10 to 12 ft Flex-Wing3.0 - 3.6 m 折叠双翼 | Heavy Duty | Wide swath pasture and crop residue shredding. |
Rotary TillerSeedbed Prep | 90 to 120 in Heavy Duty230 - 300 cm 重型旋耕机 | Commercial / Field Scale | Deep intensive seedbed preparation for commercial row crops. |
Disc HarrowSecondary Tillage | 10 to 14 ft Tandem / Offset3.0 - 4.2 m 重型交错耙 | Heavy Duty | Aggressive residue cutting in corn/cotton stubble. |
Hay BalerHay & Forage | 5x6 Round Baler or 3x3 Mid Square1.5x1.8 m 大圆捆或中型方捆机 | Heavy Duty | High density baling; requires minimum 85 PTO HP. |
Sizing & Soil Condition NoteActual implement sizing varies depending on local soil conditions (heavy clay vs sandy loam), field slope, and operating speed. Heavy tillage implements may require front ballast weights and wheel weights.
Fluids, Capacities & Working Autonomy
Standard fluid requirements, service intervals, and continuous runtime estimates for John Deere 6105D.
Estimated Continuous Field Runtime: 7.6 hrs
Approximately 7.6 hours of continuous field operation at ~75% rated power on a full tank (41.7 gal / 157.9 L).
Estimated 75% Load Fuel Burn~5.5 gal/hr (20.7 L/hr)
Engine Crankcase Oil
SAE 15W-40 (Heavy Duty Diesel)
Standard Spec: API CK-4 / CJ-4 Heavy Duty
Service Interval: 150 – 250 Hours
Transmission & Hydraulic System
UTTO (Universal Tractor Transmission Oil)
Standard Spec: ISO VG 46 / 68 (Wet Brake & Trans Compatible)
Service Interval: 600 – 1000 Hours
Engine Cooling System
50/50 Ethylene Glycol Pre-mix
Standard Spec: ASTM D6210 / Heavy-Duty OAT Antifreeze
Service Interval: 2 Years / 1500 Hours
John Deere 6105D Specification Unit Converter
Convert power, fluid capacities, and operating weights between metric and imperial standards for John Deere 6105D.
Converted Equivalents:
Horsepower (HP)105 hp
Kilowatts (kW)78.3 kW
Metric Horsepower (PS / CV)106.5 PS
Direct Competitor Comparison
Compare John Deere 6105D against same-era industry alternatives in the same horsepower class.
Current Model
John Deere
John Deere 6105D
Engine Power:Diesel (gross): 105 hp / 78.3 kW
★ Baseline Reference
International HarvesterMarket Competitor
International Harvester 660
Engine Power:95
Production Years:1959 - 1963
