John Deere 6125E
The John Deere 6125E is a tractor produced by John Deere. It is equipped with a 414.4 ci 6.8 L engine. The listed engine power is Diesel (listed): 125 hp / 93.2 kW. Transmission: John Deere SyncroPlus. Operating weight: 10,120 lbs 4590 kg.
Engine Power
Diesel (listed): 125 hp / 93.2 kW
Fuel & Capacities
45.44 gal
172.0 L
Transmission
John Deere SyncroPlus
Operating Weight
10,120 lbs
4590 kg
Overview
 | 2010 -
6E SeriesUtility tractor |
|---|---|
2010 - | |
6E Series | |
Utility tractor | |
Production | |
|---|---|
Manufacturer | John Deere |
Utility tractor | |
Built in Montenegro, Brazil | |
John Deere 6125E Engine | |
|---|---|
John Deere 6.8L 6-cyl diesel | |
Fuel tank | 45.44 gal
172.0 L |
Engine details ...  | |
John Deere 6125E Transmission | |
|---|---|
12-speed fully synchronized | |
Transmission details ...  |
John Deere 6125E Power | |
|---|---|
Engine | 125 hp
93.2 kW |
PTO (claimed) | 106 hp
79.0 kW |
Mechanical | |
|---|---|
Four-wheel drive | |
Steering | hydrostatic power |
Hydraulic wet disc brakes | |
Two-post ROPS. | |
Hydraulics | |||
|---|---|---|---|
Type | load sensing | ||
Pressure | 2756 psi
190.0 bar | ||
Valves | 2 | ||
Pump flow | 14.27 gpm
54.0 lpm | ||
Oil type | JD Hy-Gard | JD Hy-Gard | |
JD Hy-Gard |
|---|
Tractor hitch | |
|---|---|
Rear Type | II |
Rear lift (at ends) | 7,540 lbs
3420 kg |
Rear lift (at 24"/610mm) | 4,960 lbs
2249 kg |
Power Take-off (PTO) | |
|---|---|
Rear PTO | independent |
Clutch | electro-hydraulic |
Rear PTO Type | 540/1000 |
540 | |
Dimensions & Tires | |
|---|---|
Wheelbase | 104.3 inches
264 cm |
Weight | 10,120 lbs
4590 kg |
Front tire | 18.4-34 |
Rear tire | 14.9-24 |
Full dimensions and tires ...  | |
Electrical | |
|---|---|
Ground | negative |
Charging system | alternator |
Charging amps | 90 |
Battery volts | 12 |
Engine
Engine Detail — 414.4 ci / 6.8 L Diesel
Manufacturer | John Deere 6068 PowerTech |
Configuration | turbocharged diesel, 6-cylinder, liquid-cooled |
Displacement | 414.4 ci
6.8 L |
Bore/Stroke | 4.19x5.00 inches
106 x 127 mm |
Power | 125 hp
93.2 kW |
Rated RPM | 2300 |
Starter volts | 12 |

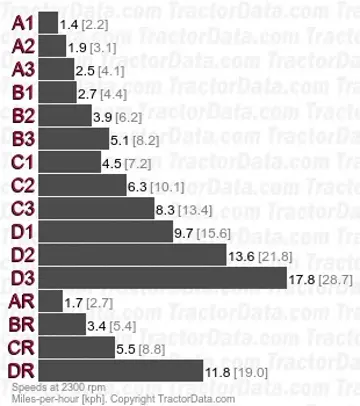

Transmission
Transmission — John Deere SyncroPlus
Transmission | John Deere SyncroPlus |
Type | fully synchronized |
Gears | 12 forward and 4 reverse |
Clutch | hydraulic wet discs |
Oil type | JD Hy-Gard |
Three synchronized gears (1-3) in four synchronized ranges (A-D). | |
With 18.4x38 R1 rear tires. | |
 | |
JD Hy-Gard |
|---|
Dimensions
John Deere 6125E Tires | |
|---|---|
Standard tires (ag) | Front: 18.4-34. Rear: 14.9-24 |
Dimensions | |
|---|---|
Wheelbase | 104.3 inches
264 cm |
Length | 193.7 inches
491 cm |
Height | 107.9 inches
274 cm |
Weight | 10,120 lbs
4590 kg |
Ballasted weight | 15,430 lbs
6999 kg |
Flange rear axle | |
Recommended Implements & Sizing Guide
Engineering recommendations for John Deere 6125E based on its 125 HP power envelope and ASAE agricultural standards.
| Implement & Operation | Recommended Size | Workload Rating | Engineering Notes |
|---|---|---|---|
Moldboard PlowPrimary Tillage | 4 to 5 Bottom (16-18")4 - 5 铧 (40-45 cm) | Heavy Duty | Heavy primary tillage; semi-mounted hitch recommended. |
Rotary Cutter / MowerMowing & Clearing | 10 to 12 ft Flex-Wing3.0 - 3.6 m 折叠双翼 | Heavy Duty | Wide swath pasture and crop residue shredding. |
Rotary TillerSeedbed Prep | 90 to 120 in Heavy Duty230 - 300 cm 重型旋耕机 | Commercial / Field Scale | Deep intensive seedbed preparation for commercial row crops. |
Disc HarrowSecondary Tillage | 15 to 22 ft Folding Disc4.5 - 6.7 m 折叠式圆盘耙 | Commercial / Field Scale | Wide commercial field leveling; requires hydraulic remotes. |
Hay BalerHay & Forage | 5x6 Round Baler or 3x3 Mid Square1.5x1.8 m 大圆捆或中型方捆机 | Heavy Duty | High density baling; requires minimum 85 PTO HP. |
Sizing & Soil Condition NoteActual implement sizing varies depending on local soil conditions (heavy clay vs sandy loam), field slope, and operating speed. Heavy tillage implements may require front ballast weights and wheel weights.
Fluids, Capacities & Working Autonomy
Standard fluid requirements, service intervals, and continuous runtime estimates for John Deere 6125E.
Estimated Continuous Field Runtime: 7 hrs
Approximately 7 hours of continuous field operation at ~75% rated power on a full tank (45.4 gal / 172 L).
Estimated 75% Load Fuel Burn~6.5 gal/hr (24.6 L/hr)
Engine Crankcase Oil
SAE 15W-40 (Heavy Duty Diesel)
Standard Spec: API CK-4 / CJ-4 Heavy Duty
Service Interval: 150 – 250 Hours
Transmission & Hydraulic System
UTTO (Universal Tractor Transmission Oil)
Standard Spec: ISO VG 46 / 68 (Wet Brake & Trans Compatible)
Service Interval: 600 – 1000 Hours
Engine Cooling System
50/50 Ethylene Glycol Pre-mix
Standard Spec: ASTM D6210 / Heavy-Duty OAT Antifreeze
Service Interval: 2 Years / 1500 Hours
John Deere 6125E Specification Unit Converter
Convert power, fluid capacities, and operating weights between metric and imperial standards for John Deere 6125E.
Converted Equivalents:
Horsepower (HP)125 hp
Kilowatts (kW)93.2 kW
Metric Horsepower (PS / CV)126.7 PS
Direct Competitor Comparison
Compare John Deere 6125E against same-era industry alternatives in the same horsepower class.
Current Model
John Deere
John Deere 6125E
Engine Power:Diesel (listed): 125 hp / 93.2 kW
★ Baseline Reference
