John Deere 6125J

The John Deere 6125J is a tractor produced by John Deere. It is equipped with a 414.4 ci 6.8 L engine. The rated power output is 125 hp 93.2 kW. Transmission: John Deere PowrQuad. Operating weight: 9678 to 10850 pounds.

Overview

	2010 - 6J SeriesUtility tractor
2010 -
6J Series
Utility tractor

Production
Manufacturer	John Deere
Utility tractor
Built in Montenegro, Brazil

John Deere 6125J Engine
John Deere 6.8L 6-cyl diesel
Fuel tank	45.44 gal 172.0 L
	81 gal (optional) 306.6 L
Engine details ...

John Deere 6125J Power
Engine	125 hp 93.2 kW
PTO (claimed)	106 hp 79.0 kW

Mechanical
Four-wheel drive
Differential lock	electro-hydraulic
Power steering
Hydraulic wet disc brakes
Four-post ROPS. Cab optional.

Hydraulics
Type	pressure compensated
	closed center pressure-flow compensated optional (PFC)
Pressure	2900 psi 200.0 bar
Valves	2
Pump flow	17.17 gpm 65.0 lpm
	26.42 gpm (optional) 100.0 lpm
SCV flow	15.85 gpm 60.0 lpm
	26.36 gpm (optional) 99.8 lpm
Oil type	JD Hy-Gard		JD Hy-Gard

	JD Hy-Gard

Tractor hitch
Rear Type	II
Control	electronic lower link
Rear lift (at ends)	8,378 lbs 3800 kg
Rear lift (at 24"/610mm)	5,622 lbs 2550 kg

Power Take-off (PTO)
Rear PTO	independent
Clutch	electro-hydraulic
Rear PTO Type	540/1000
	540

Dimensions & Tires
Wheelbase	104.3 inches 264 cm
Weight	9678 to 10850 pounds
Front tire	14.9-26
Rear tire	23.1-30
Full dimensions and tires ...

Electrical
Ground	negative
Charging system	alternator
Charging amps	90
Battery volts	12
Battery AH	150

Engine

Engine Detail — 414.4 ci / 6.8 L Diesel

Manufacturer	John Deere 6068 PowerTech
Configuration	turbocharged diesel, 6-cylinder, liquid-cooled
Displacement	414.4 ci 6.8 L
Bore/Stroke	4.19x5.00 inches 106 x 127 mm
Power	125 hp 93.2 kW
Fuel system	rotary injection pump
Rated RPM	2300
Torque	365.8 lb-ft 496.0 Nm
Torque RPM	1400
Starter volts	12
Coolant capacity	26.4 qts 25.0 L
Oil capacity	20.1 qts 19.0 L

Transmission

Transmission options
12-speed fully synchronized
16-speed partial power shift

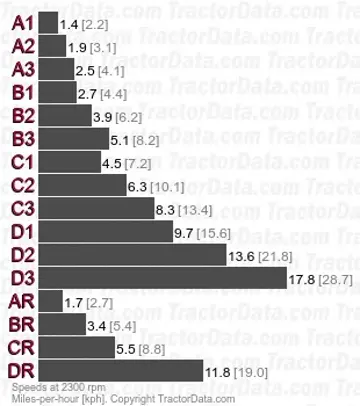

Transmission — John Deere SyncroPlus

Transmission	John Deere SyncroPlus
Type	fully synchronized
Gears	12 forward and 4 reverse
Clutch	hydraulic wet discs
Oil type	JD Hy-Gard
Three synchronized gears (1-3) in four synchronized ranges (A-D).
With 23.1-30 R1 rear tires.

	JD Hy-Gard

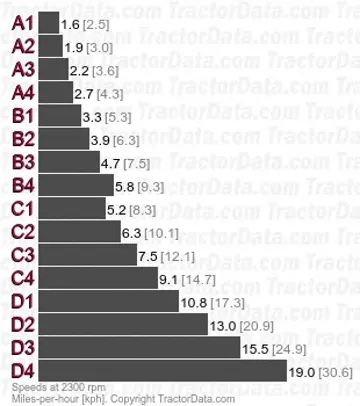

Transmission — John Deere PowrQuad

Transmission	John Deere PowrQuad
Type	partial power shift
Gears	16 forward and reverse
Clutch	hydraulic wet discs
Oil type	JD Hy-Gard
Four power shift gears (1-4) in four synchronized ranges (A-D).
With 23.1-30 R1 rear tires. Reverse speeds are 15% faster than forward.

	JD Hy-Gard

Dimensions

John Deere 6125J Tires
Standard tires (ag)	Front: 14.9-26. Rear: 23.1-30
Optional tires (ag)	Front: 14.9-24. Rear: 23.1-30
	Front: 14.9-24. Rear: 18.4-38
	Front: 14.9-26. Rear: 18.4-38
	Front: 14.9-26. Rear: 18.4-38
	Front: 16.9-24. Rear: 23.1-30
	Front: 16.9-24. Rear: 18.4-38
	Front: 14.9-24. Rear: 23.1-30
	Front: 12.4-36. Rear:
	Front: 320/90R50. Rear:
	Front: 14.9-24. Rear: 15.5-38

Dimensions
Wheelbase	104.3 inches 264 cm
Length	193.7 inches 491 cm
Height	107.9 inches 274 cm
Ground clearance	19.9 inches 50 cm
Flange rear axle
Bar rear axle	3.386 by 96 inches 86 by 2438 mm
Front tread	63.6 to 84.8 inches 161 to 215 cm
Rear tread	71.2 inches 180 cm (flange)
Rear tread	65.3 to 94.8 inches 165 to 240 cm (bar)

John Deere 6125J Weight
	9,678 lbs (ROPS) 4389 kg
	10,850 lbs (cab) 4921 kg
Ballasted	15,430 lbs 6999 kg
