John Deere 6135R

The John Deere 6135R is a tractor produced by John Deere. It is equipped with a 276 ci 4.5 L engine. The listed engine power is Diesel (net): 126.1 hp / 94.0 kW; Diesel (gross): 135.4 hp / 101.0 kW. Transmission: AutoPowr. Operating weight: 14110 lbs 6400 kg.

Overview

	2016 - 2022 6R SeriesUtility tractor 6R Series Utility tractor

Production
Manufacturer	John Deere
Utility tractor

John Deere 6135R Engine
John Deere 4.5L 4-cyl diesel
Fuel tank	80.6 gal 305.1 L
Exhaust fluid (DEF)	4.2 gal 15.9 L
Engine details ...

John Deere 6135R Power
Engine (gross)	135.4 hp 101.0 kW
Engine (net)	126.1 hp 94.0 kW
Engine (max)	166.3 hp 124.0 kW
PTO (claimed)	119 hp 88.7 kW
	138 hp (IPM Boost) 102.9 kW

Mechanical
Four-wheel drive
Differential lock	electro-hydraulic front and rear
Power steering
Hydraulic wet disc brakes
Trailer brakes	hydraulic OptOptional
	pneumatic OptOptional
Cab standard with air-conditioning.

Hydraulics
Type	closed center PFC
Pump flow	30.1 gpm 113.9 lpm

Tractor hitch
Rear Type	IIIN
Rear lift (at 24"/610mm)	9590 lbs 4350 kg
Front Hitch	IIIN
Front lift (at ends)	7275 lbs 3299 kg

Power Take-off (PTO)
Rear PTO	independent
Clutch	electro-hydraulic wet disc
Rear PTO Type	540/540E/1000
Engine RPM	540@1967
	540E@1496
	1000@1962
Front PTO	independent OptOptional
Clutch	electro-hydraulic wet disc
Front PTO Type	1000
Engine RPM	1000@1969

Dimensions & Tires
Wheelbase	108.9 inches 276 cm
Weight	14110 lbs 6400 kg
Front tire	480/70R28
Rear tire	580/70R38
Full dimensions and tires ...

Electrical
Ground	negative
Charging system	alternator
Battery volts	12
Battery AH	154

Engine

Engine Detail — 276 ci / 4.5 L Diesel

Manufacturer	John Deere
Configuration	turbocharged diesel, 4-cylinder, liquid-cooled
Displacement	276 ci 4.5 L
Bore/Stroke	4.19x5.00 inches 106 x 127 mm
Rated Power (net)	126.1 hp 94.0 kW
Rated Power (gross)	135.4 hp 101.0 kW
Maximum Power (net)	155.6 hp 116.0 kW
Maximum Power (gross)	166.3 hp 124.0 kW
Fuel system	high-pressure common rail
Rated RPM	2100
Idle RPM	850-2250
Operating RPM	1550-2100
Torque	466.1 lb-ft 632.0 Nm
Torque RPM	1600
Starter	electric
Starter volts	12
Coolant capacity	28.5 qts 27.0 L

Transmission

Transmission options
24-speed partial power shift
continuously-variable transmission

Transmission — PowrQuad Plus

Transmission	PowrQuad Plus
Type	partial power shift
Gears	24 forward and reverse
Four push-button power shift gears (1-4) in six synchronized ranges (A-F) with left-hand power shuttle. Push-button clutch on the shift lever.
With580/70R38 rear tires and 40 KPH option. Reverse speeds are 5% faster than forward.

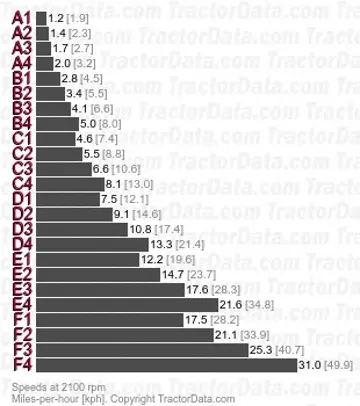

Transmission — AutoQuad Plus

Transmission	AutoQuad Plus
Type	partial power shift
Gears	24 forward and reverse
Four push-button power shift gears (1-4) in six synchronized ranges (A-F) with left-hand power shuttle. Automatic gear shifting.
With580/70R38 rear tires and 50 KPH option. Reverse speeds are 5% faster than forward.

Transmission — AutoPowr

Transmission	AutoPowr
Type	continuously-variable transmission
Gears	infinite forward and reverse
Hydro-mechanical continuous transmission.

Dimensions

John Deere 6135R Tires
Standard tires (ag)	Front: 480/70R28. Rear: 580/70R38
Optional tires (ag)	Front: 13.6R28. Rear: 16.9R38
	Front: 14.9R28. Rear: 18.4R38
	Front: 270/95R38. Rear: 300/95R52

Dimensions
Wheelbase	108.9 inches 276 cm
Length	191.8 inches 487 cm
Width	100.4 inches 255 cm
Height (cab)	115.6 inches 293 cm
Shipping weight	14110 lbs 6400 kg
Max weight	23038 lbs 10450 kg
Clearance (front axle)	20.8 inches 52 cm
Clearance (rear axle)	19.9 inches 50 cm
