Kubota M115A
The Kubota M115A is a tractor produced by Kubota. It is equipped with a 373.7 ci 6.1 L engine. The rated power output is 113.5 hp 84.6 kW. Transmission: 24 forward and reverse. Operating weight: 9127 lbs 4140 kg.
Engine Power
113.5 hp
84.6 kW
Fuel & Capacities
50.2 gal
190.0 L
Transmission
24 forward and reverse
Operating Weight
9127 lbs
4140 kg
Kubota M115A Serial Number & Year Decoder
Find the exact manufacture year of your tractor by checking your chassis serial number below.
Where to Find the Serial NumberThe serial number plate is commonly located on the front frame, tractor transmission housing (right side), or instrument panel badge.
Overview
 | 2009 - 2013
Grandom A SeriesUtility tractor |
|---|---|
2009 - 2013 | |
Grandom A Series | |
Utility tractor | |
Production | |
|---|---|
Manufacturer | Kubota |
Utility tractor | |
Kubota M115A Engine | |
|---|---|
Kubota 6.1L 4-cyl diesel | |
Fuel tank | 50.2 gal
190.0 L |
Engine details ...  | |
Kubota M115A Power | |
|---|---|
Engine | 113.5 hp
84.6 kW |
Mechanical | |
|---|---|
Four-wheel drive | |
Power steering | |
Hydraulic wet disc brakes | |
Cab standard with air-conditioning. |
Tractor hitch | |
|---|---|
Rear Type | II |
Control | position and electronic draft control |
Rear lift | 12787 lbs
5800 kg |
Power Take-off (PTO) | |
|---|---|
Rear PTO | independent |
Rear PTO Type | 540/1000 |
Engine RPM | 540@1994 |
1000@2050 | |
Dimensions & Tires | |
|---|---|
Wheelbase | 105.9 inches
268 cm |
Weight | 9127 lbs
4140 kg |
Front tire | 13.6R24 |
Rear tire | 420/85R38 |
Full dimensions and tires ...  | |
Electrical | |
|---|---|
Ground | negative |
Battery volts | 12 |
Engine
Engine Detail — 373.7 ci / 6.1 L Diesel
Manufacturer | Kubota V6108-TI |
Configuration | turbocharged diesel, 4-cylinder, liquid-cooled |
Displacement | 373.7 ci
6.1 L |
Bore/Stroke | 4.65x5.51 inches
118 x 140 mm |
Power | 113.5 hp
84.6 kW |
Fuel system | direct injection |
Rated RPM | 2200 |
Starter | electric |
Starter volts | 12 |
Transmission
Transmission options | |
|---|---|
16-speed power shift | |
24-speed creeper |

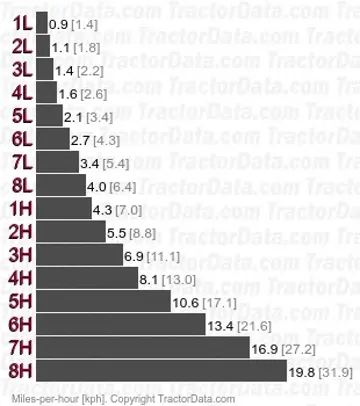

Transmission — 16 forward and reverse power shift
Type | power shift |
Gears | 16 forward and reverse |
Clutch | hydraulic wet disc |
Eight power-shift gears in two ranges with shuttle. | |
 | |
Transmission — 24 forward and reverse creeper
Type | creeper |
Gears | 24 forward and reverse |
Optional creeper adds an additional 8-speed range to the standard transmission. | |
 | |
Dimensions
Kubota M115A Tires | |
|---|---|
Standard tires (ag) | Front: 13.6R24. Rear: 420/85R38 |
Dimensions | |
|---|---|
Wheelbase | 105.9 inches
268 cm |
Length | 172.8 inches
438 cm |
Width | 83.7 inches
212 cm |
Height | 106.3 inches
270 cm |
Weight | 9127 lbs
4140 kg |
Ground clearance | 16.5 inches
41 cm |
Front tread | 64.6/68.5 inches
164/173 cm |
Rear tread | 62.2 to 81.1 inches
157 to 205 cm |
