John Deere 6195M

The John Deere 6195M is a tractor produced by John Deere. It is equipped with a 414 ci 6.8 L engine. The listed engine power is Diesel (gross): 195 hp / 145.4 kW; Diesel (listed): 4 hp / 3.0 kW. Transmission: AutoQuad PLUS. Operating weight: 15664 lbs 7105 kg.

Overview

	2015 - 2025 Model year 2015-20202020-2025 6M SeriesRow-Crop tractor 6M Series Row-Crop tractor

Production
Manufacturer	John Deere
Row-Crop tractor
Built in Mannheim, Baden-Württemberg, Germany

John Deere 6195M Engine
John Deere 6.8L 6-cyl diesel
Fuel tank	85 gal 321.7 L
Exhaust fluid (DEF)	5 gal 18.9 L
Engine details ...

John Deere 6195M Power
Engine (gross)	195 hp 145.4 kW
Engine (max)	206 hp 153.6 kW
PTO (claimed)	158 hp 117.8 kW
Drawbar (tested)	157 hp 117.1 kW
PTO (tested)	182.9 hp 136.4 kW
Performance test details ...

Mechanical
Four-wheel drive
Final drives	inboard planetary
Differential lock	electro-hydraulic front and rear
Power steering
Hydraulic wet disc brakes
Cab standard with air-conditoning.

Hydraulics
Type	closed-center pressure-and-flow compensated
Pressure	2900 psi 200.0 bar
Rear valves	3 OptOptional
Mid valves	3 OptOptional
Pump flow	30 gpm 113.6 lpm
SCV flow	26.4 gpm 99.9 lpm

Tractor hitch
Rear Type	IIIN/II
Control	electronic lower-link draft sensing
Rear lift	10696 lbs 4851 kg
Drawbar	Cat. 2

Power Take-off (PTO)
Rear PTO	independent
Clutch	electro-hydraulic
Rear PTO Type	540/1000 (1.375)
	540
Engine RPM	540@1932
	1000@1932

Dimensions & Tires
Wheelbase	110.2 inches 279 cm
Weight	15664 lbs 7105 kg
Front tire	10.00-16
2WD Rear tire	460/85R38
Full dimensions and tires ...

Electrical
Ground	negative
Charging system	alternator
Charging amps	120
	200 OptOptional
Charging volts	14
Battery volts	12

Engine

Engine Detail — 414 ci / 6.8 L Diesel

Manufacturer	John Deere PowerTech PSS
Configuration	turbocharged aftercooled diesel, 6-cylinder 24-valve, liquid-cooled inline
Displacement	414 ci 6.8 L
Bore/Stroke	4.15x5.00 inches 105 x 127 mm
Emissions	Tier IV
Emission control	cooled exhaust-gas recirculation, diesel particulate filter, and selective catalytic reduction
Rated Power (gross)	195 hp 145.4 kW
Maximum Power (gross)	206 hp 153.6 kW
Rated RPM	2100
Starter	electric
Starter volts	12
Starter power	4 hp 3.0 kW
Coolant capacity	24.5 qts 23.2 L

Transmission

Transmission options
16-speed four-speed power shift
20-speed four-speed power shift

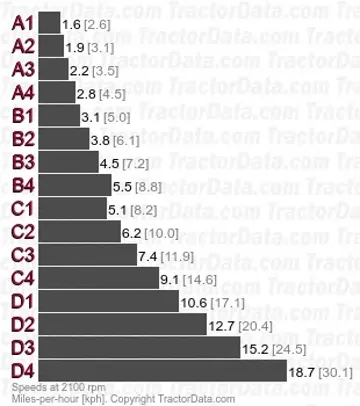

Transmission — PowrQuad PLUS

Transmission	PowrQuad PLUS
Type	four-speed power shift
Gears	16 forward and reverse
Clutch	wet disc
Four push-button gears (1-4) in four synchronized ranges (A-D) with left-hand power shuttle lever and push-button clutch.
With 380/85R38 rear tires. Reverse speeds are 4% faster than forward.

Transmission — PowrQuad

Transmission	PowrQuad
Type	four-speed power shift
Gears	20 forward and reverse
Clutch	wet disc
Four power-shift gears (1-4) in five synchronized ranges (A-F) with left-hand power shuttle lever. Optional PowrQuad PLUS with push-button gear shift and push-button clutch.
With 380/85R38 rear tires. Reverse speeds are 4% faster than forward.

Transmission — AutoQuad PLUS

Transmission	AutoQuad PLUS
Type	four-speed power shift
Gears	20 forward and reverse
Clutch	wet disc
Four push-button gears (1-4) in five synchronized ranges (A-F) with left-hand power shuttle lever. AutoShift mode enables programmable automatic gear shifting.
With 380/85R38 rear tires. Reverse speeds are 4% faster than forward.

Dimensions

John Deere 6195M Tires
2WD Standard tires (ag)	Front: 10.00-16. Rear: 460/85R38
4WD Standard tires (ag)	Front: 380/85R28. Rear: 460/85R38

Dimensions
Wheelbase	110.2 inches 279 cm
Length	196.2 inches 498 cm
Width	100.4 inches 255 cm
Height (cab)	120 inches 304 cm
Clearance (front axle)	23.9 inches 60 cm
Rack-and-pinion rear axle	3.622 by 100.4 inches 91 by 2550 mm

John Deere 6195M Weight
Shipping	15664 lbs 7105 kg
Max capacity	27116 lbs 12299 kg
Max Drawbar	5400 lbs 2449 kg

Tests

Tractor Tests
OECD 3022: diesel AutoQuad Plus 4WD
OECD 3148: diesel PowrQuad 4WD

OCED Tractor Test 3022
Diesel AutoQuad Plus 4WD October 2016 - November 2016, Link: OCED Tractor Test 3022 file
PTO performance
Max power	181.0 hp 135.0 kW
Fuel use	9.9 gal/hour 37.5 l/hour
Power at rated engine speed	161.1 hp 120.1 kW
Fuel use	9.5 gal/hour 36.0 l/hour
Power at rated PTO speed	179.7 hp 134.0 kW
Fuel use	10.1 gal/hour 38.2 l/hour
Drawbar performance
Max power	148.5 hp 110.7 kW
Fuel use	9.7 gal/hour 36.7 l/hour
Max pull	16955 lbs 7690 kg

OCED Tractor Test 3148
Diesel PowrQuad 4WD March 2019 - April 2019, Link: OCED Tractor Test 3148 file
PTO performance
Max power	182.9 hp 136.4 kW
Fuel use	10.1 gal/hour 38.2 l/hour
Power at rated engine speed	164.3 hp 122.5 kW
Fuel use	9.9 gal/hour 37.5 l/hour
Power at rated PTO speed	177.1 hp 132.1 kW
Fuel use	10.2 gal/hour 38.6 l/hour
Drawbar performance
Max power	157 hp 117.1 kW
Fuel use	10.2 gal/hour 38.6 l/hour
Max pull	17870 lbs 8105 kg

Attachments

Attachment overview
John Deere H360 loader
John Deere H380 loader
