John Deere 6210

The John Deere 6210 is a tractor produced by John Deere. It is equipped with a 276 ci 4.5 L engine. The rated power output is 90 hp 67.1 kW. Transmission: PowrQuad. Operating weight: 7420 to 9610 pounds.

Overview

	1999 - 2002 6000 TEN SeriesUtility tractor
1999 - 2002
6000 TEN Series
Utility tractor

Production
Manufacturer	John Deere
Utility tractor
Built in Mannheim, Baden-Württemberg, Germany

Variants
6210	utility tractor
6210L	low-profile
6210S	low-profile cab

John Deere 6210 Engine
John Deere 4.5L 4-cyl diesel
Fuel tank	30.7 gal*Standard on ROPS-equipped tractors. Optional on cab tractors. 116.2 L
	43.6 gal*Standard on cab tractors. Optional on ROPS tractors. 165.0 L
Engine details ...

John Deere 6210 Power
Engine (gross)	90 hp 67.1 kW
PTO (claimed)	72 hp 53.7 kW
Drawbar (tested)	61.8 hp 46.1 kW
PTO (tested)	78.6 hp 58.6 kW
Performance test details ...

Mechanical
Two- or four-wheel drive
Power steering
Differential hydraulic wet disc brakes
Two-post ROPS. ComfortGard cab optional with air-conditioning.

Hydraulics
Type	closed center pressure-flow compensating
Pressure	2900 psi 200.0 bar
Valves	1 to 4
Pump flow	25.4 gpm 96.1 lpm
	18.9 gpmOptOptional 71.5 lpm

Tractor hitch
Rear Type	II
Control	electronic lower-link draft sensing
Rear lift	4745 lbs 2152 kg
Front Hitch	optional

Power Take-off (PTO)
Rear PTO	independent
Rear PTO Type	540 (1.375)
	540/1000 (1.375)OptOptional

Dimensions & Tires
Wheelbase	94.5 inches 240 cm
Weight	7420 to 9610 pounds
Front tire	7.50-18
2WD Rear tire	16.9-30
Full dimensions and tires ...

Electrical
Ground	negative
Charging system	alternator
ROPS Charging amps	90
Cab Charging amps	115
Battery CCA	830
	1230 OptOptional
Battery volts	12
Battery AH	110
	154 OptOptional

References
6000 TEN Series published in 1998, by John Deere
6000 TEN Series and Advantage Series Tractors published in 1998, by John Deere
6000 TEN Series Tractors and Advantage Series Tractors Product Information Handbook published in 1998, by John Deere

Engine

Engine Detail — 276 ci / 4.5 L Diesel

Manufacturer	John Deere 4045TL054
Configuration	turbocharged diesel, 4-cylinder, liquid-cooled
Displacement	276 ci 4.5 L
Bore/Stroke	4.19x5.00 inches 106 x 127 mm
Power (gross)	90 hp 67.1 kW
Compression	17.8:1
Rated RPM	2300
Operating RPM	1500-2300
Torque	274 lb-ft 371.5 Nm
Torque RPM	1900
Firing order	1-3-4-2
Starter volts	12
Oil capacity	12.7 qts 12.0 L
ROPS Coolant capacity	11.6 qts 11.0 L
Cab Coolant capacity	14.3 qts 13.5 L
Intake valve clearance	0.014 inches 0.356 mm
Exhaust valve clearance	0.018 inches 0.457 mm

Transmission

Transmission options
12-speed fully synchronized
16-speed four-speed power shift
24-speed four-speed power shift

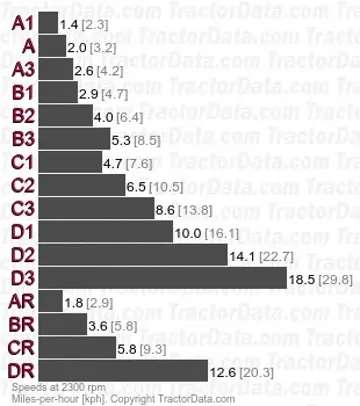

Transmission — SyncroPlus

Transmission	SyncroPlus
Type	fully synchronized
Gears	12 forward and 4 reverse
Clutch	wet disc
Three gears (1-3), plus reverse (R) in four ranges (A-D).
With 18.4-30 rear tires.

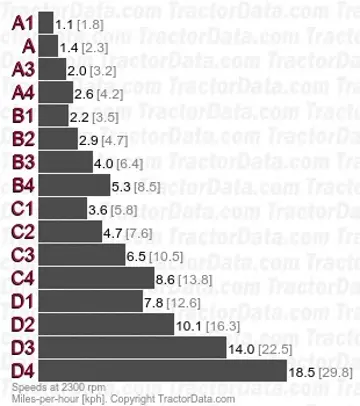

Transmission — SyncroPlus Power Reverser

Transmission	SyncroPlus Power Reverser
Type	four-speed power shift
Gears	16 forward and reverse
Clutch	wet disc
Four synchronized gears (1-4) in four ranges (A-D) with left-hand power reverser.
With 18.4-30 rear tires. Reverse speeds are 20% faster than forward.

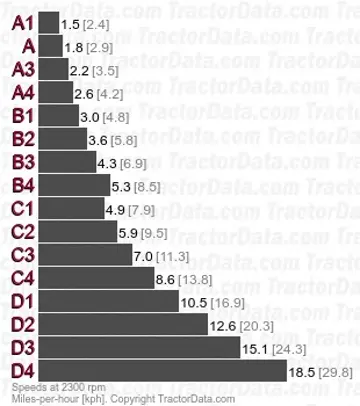

Transmission — PowrQuad

Transmission	PowrQuad
Type	four-speed power shift
Gears	16 forward and reverse
Clutch	hydraulic wet disc
Four power shift gears (1-4) in four synchronized ranges (A-D) with reverser.
With 18.4-30 rear tires. Reverse speeds are 20% faster than forward.

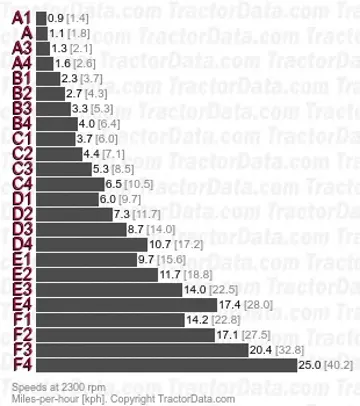

Transmission — PowrQuad

Transmission	PowrQuad
Type	four-speed power shift
Gears	24 forward and reverse
Clutch	hydraulic wet disc
Four power shift gears (1-4) in six synchronized ranges (A-F) with reverser.
With 18.4-30 rear tires. Reverse speeds are 20% faster than forward.

Dimensions

John Deere 6210 Tires
2WD Standard tires (ag)	Front: 7.50-18. Rear: 16.9-30
4WD Standard tires (ag)	Front: 12.4-24. Rear: 16.9-30

Dimensions
Wheelbase	94.5 inches 240 cm
Length	162.7 inches 413 cm
Width	80 inches*Width of tractor with flange axles. 203 cm
2WD Clearance (front axle)	23.1 inches 58 cm
4WD Clearance (front axle)	18.4 inches 46 cm
Flange rear axle
Rack-and-pinion rear axle	3.1 by 89.3 inches 78 by 2268 mm
Rack-and-pinion rear axle	3.1 by 100.6 inches 78 by 2555 mm

John Deere 6210 Weight
2WD ROPS Shipping	7420 lbs 3365 kg
2WD Cab Shipping	7927 lbs 3595 kg
4WD ROPS Shipping	7916 lbs 3590 kg
4WD Cab Shipping	8423 lbs 3820 kg
4WD Cab Operating	9610 lbs 4359 kg

John Deere 6210 Height
Steering wheel	69.6 inches 176 cm
ROPS	107.5 inches 273 cm
Cab	101.7 inches 258 cm
Exhaust	100.9 inches 256 cm

Tests

OCED Tractor Test 1821
Diesel PowrQuad 4WD June 1998 - October 1998, Link: OCED Tractor Test 1821 file
PTO performance
Max power	78.6 hp 58.6 kW
Fuel use	4.5 gal/hour 17.0 l/hour
Power at rated engine speed	74.7 hp 55.7 kW
Fuel use	4.8 gal/hour 18.2 l/hour
Power at rated PTO speed	76.0 hp 56.7 kW
Fuel use	4.8 gal/hour 18.2 l/hour
Drawbar performance
Max power	61.8 hp 46.1 kW
Fuel use	4.8 gal/hour 18.2 l/hour
Gear 3B used for power test.
Max pull	10695 lbs 4851 kg
Gear 1B used for pull test.

Attachments

Attachment overview
John Deere 620 loader
John Deere 640 loader
John Deere 640SL loader
