John Deere 6215

The John Deere 6215 is a tractor produced by John Deere. It is equipped with a 275 ci 4.5 L engine. The listed engine power is Diesel (net): 90 hp / 67.1 kW; Diesel (gross): 94 hp / 70.1 kW; Diesel (listed): 4 hp / 3.0 kW. Transmission: PowrReverser.

Overview

	2003 - 2005 6015 SeriesUtility tractor 6015 Series Utility tractor

Production
Manufacturer	John Deere
Utility tractor
Built in Mannheim, Baden-Württemberg, Germany

John Deere 6215 Engine
John Deere 4.5L 4-cyl diesel
Engine details ...

John Deere 6215 Power
Engine (gross)	94 hp 70.1 kW
Engine (net)	90 hp 67.1 kW
Engine (max)	97 hp 72.3 kW
PTO (claimed)	80 hp 59.7 kW

Mechanical
Two- or four-wheel drive
Differential lock	electro-hydraulic wet disc
Power steering
Wet disc brakes
Two-post ROPS. Cab available.

Capacity
Fuel	43.6 gal 165.0 L
2WD Hydraulic system	13.7 gal 51.9 L
4WD Hydraulic system	14.5 gal 54.9 L

Hydraulics
Type	open center
2WD Capacity	13.7 gal 51.9 L
4WD Capacity	14.5 gal 54.9 L
Pressure	2540 psi 175.1 bar
Pump flow	14.3 gpm 54.1 lpm

Tractor hitch
Rear Type	II/I
Control	mechanical top-link draft sensing
Rear lift	8318 lbs 3773 kg

Power Take-off (PTO)
Rear PTO	independent
Clutch	mechanical wet disc
Rear PTO Type	540
	540/1000
Engine RPM	540@2124
	1000@2208

Dimensions & Tires
Full dimensions and tires ...

Electrical
Ground	negative
Charging system	alternator
Charging amps	90
Charging volts	14
Battery volts	12
Battery AH	90

References
B-Max Series published in 2011, by McCormick

Engine

Engine Detail — 275 ci / 4.5 L Diesel

Manufacturer	John Deere 4045TL272
Configuration	turbocharged diesel, 4-cylinder, liquid-cooled
Displacement	275 ci 4.5 L
Bore/Stroke	4.19x5.00 inches 106 x 127 mm
Emissions	Stage I
Rated Power (net)	90 hp 67.1 kW
Rated Power (gross)	94 hp 70.1 kW
Maximum Power (gross)	97 hp 72.3 kW
Rated RPM	2300
Idle RPM	845-2465
Operating RPM	1000-2300
Torque	281 lb-ft 381.0 Nm
Torque RPM	1500
Firing order	1-3-4-2
Starter	electric
Starter volts	12
Starter power	4 hp 3.0 kW
Intake valve clearance	0.014 inches 0.356 mm
Exhaust valve clearance	0.018 inches 0.457 mm

Transmission

Transmission options
12-speed fully synchronized
16-speed power shuttle

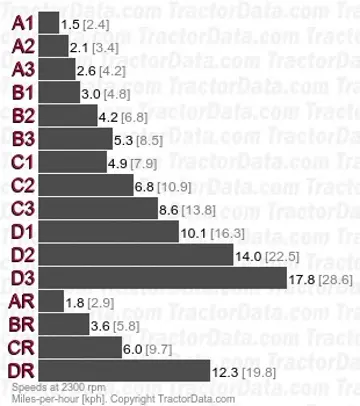

Transmission — SyncroPlus

Transmission	SyncroPlus
Type	fully synchronized
Gears	12 forward and 4 reverse
Clutch	wet disc
Three gears (1-3), plus reverse (R), in four ranges (A-D).

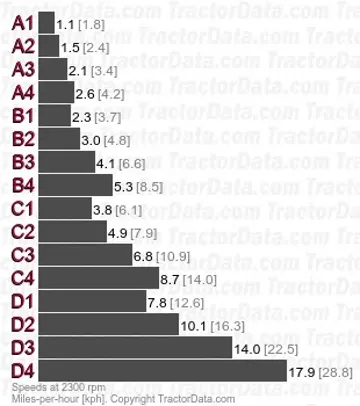

Transmission — PowrReverser

Transmission	PowrReverser
Type	power shuttle
Gears	16 forward and reverse
Clutch	wet disc
Four gears (1-4) in four ranges (A-D) with left-hand shuttle shift.
With 18.4-30 rear tires. Reverse speeds are 4% faster than forward. 30 KPH transmission shown, 40 KPH option available.

Dimensions

John Deere 6215 Tires

Dimensions
