John Deere 6230
The John Deere 6230 is a tractor produced by John Deere. It is equipped with a 276 ci 4.5 L engine. The rated power output is 95 hp 70.8 kW. Transmission: John Deere PowrQuad. Operating weight: 8582 to 10515 pounds.
Engine Power
95 hp
70.8 kW
Fuel & Capacities
43.6 gal
165.0 L
Transmission
John Deere PowrQuad
Operating Weight
8582 to 10515 pounds
John Deere 6230 Serial Number & Year Decoder
Find the exact manufacture year of your tractor by checking your chassis serial number below.
Where to Find the Serial NumberThe serial number plate is commonly located on the front frame, tractor transmission housing (right side), or instrument panel badge.
Overview
 | 2007 - 2012
6030 Series |
|---|---|
2007 - 2012 | |
6030 Series | |
Production | |
|---|---|
Manufacturer | John Deere |
Built in Mannheim, Baden-Württemberg, Germany | |
Original price | $49,565 (2010) |
Variants | |
|---|---|
6230 Premium | premium cab and upgraded features |
John Deere 6230 Engine | |
|---|---|
John Deere 4.5L 4-cyl diesel | |
Engine details ...  |
John Deere 6230 Power | |
|---|---|
Engine (gross) | 95 hp
70.8 kW |
PTO (claimed) | 75 hp (2007-2009)
55.9 kW |
76 hp (2010+)
56.7 kW | |
Mechanical | |
|---|---|
Two- or four-wheel drive | |
Steering | hydrostatic power |
Hydraulic wet disc brakes | |
Two-post ROPS. Cab optional. | |
Capacity | |
|---|---|
Fuel | 43.6 gal
165.0 L |
48 gal (optional)
181.7 L | |
Hydraulic system | 13.7 gal
51.9 L |
Hydraulics | |
|---|---|
Type | open-center load sensing |
closed-center pressure-flow compensated (optional) | |
Capacity | 13.7 gal
51.9 L |
Pressure | 2900 psi
200.0 bar |
Valves | 1 to 3 |
Total flow | 21.1 gpm
79.9 lpm |
29 gpm (optional)
109.8 lpm | |
Tractor hitch | |
|---|---|
Rear Type | II/III |
Rear lift (at 24"/610mm) | 4,450 lbs
2018 kg |
Power Take-off (PTO) | |
|---|---|
Rear PTO | independent |
Rear PTO Type | 540 |
540/1000 | |
Dimensions & Tires | |
|---|---|
Wheelbase | 94.5 inches
240 cm |
Weight | 8582 to 10515 pounds |
Front tire | 12.4R24 |
Rear tire | 18.4R30 |
Full dimensions and tires ...  | |
Electrical | |
|---|---|
Ground | negative |
Charging system | alternator |
Charging amps | 115 |
Battery volts | 12 |
References | |
|---|---|
 | |
6030 and 7030 Series Tractors published in 2007, by John Deere | |
Specialty Tractors published in 2008, by John Deere | |
Specialty Tractors published in 2012, by John Deere |
Engine
Engine Detail — 276 ci / 4.5 L Diesel
Configuration | turbocharged diesel, 4-cylinder 8-valve, liquid-cooled vertical inline |
John Deere 4045HL280 PowerTech E | |
Original engine, used in the basic 6230 from 2007 through the 2009 model year. | |
Displacement | 276 ci
4.5 L |
Bore/Stroke | 4.19x5.00 inches
106 x 127 mm |
Emissions | Tier III |
Rated Power (gross) | 94 hp
70.1 kW |
Air cleaner | dual dry element |
Compression | 19:1 |
Rated RPM | 2300 |
Idle RPM | 850-2460 |
Operating RPM | 1500-2300 |
Torque | 282 lb-ft
382.4 Nm |
Torque RPM | 1500 |
Firing order | 1-3-4-2 |
Starter volts | 12 |
Starter power | 4.0 hp
3.0 kW |
Oil capacity | 16.8 qts
15.9 L |
Coolant capacity | 28 qts (ROPS)
26.5 L |
30.8 qts (cab)
29.1 L | |
Intake valve clearance | 0.014 inches
0.356 mm |
Exhaust valve clearance | 0.018 inches
0.457 mm |
Engine Detail — 276 ci / 4.5 L Diesel
Configuration | turbocharged diesel, 4-cylinder 8-valve, liquid-cooled vertical inline |
John Deere 4045HL287 PowerTech E | |
Replacement engine, first used in the 2010 model year. | |
Displacement | 276 ci
4.5 L |
Bore/Stroke | 4.19x5.00 inches
106 x 127 mm |
Rated Power (gross) | 95 hp
70.8 kW |
Air cleaner | dual dry element |
Compression | 19:1 |
Rated RPM | 2300 |
Idle RPM | 850-2460 |
Operating RPM | 1500-2300 |
Torque | 283 lb-ft
383.7 Nm |
Torque RPM | 1600 |
Firing order | 1-3-4-2 |
Oil capacity | 16.8 qts
15.9 L |
Coolant capacity | 28 qts (ROPS)
26.5 L |
30.8 qts (cab)
29.1 L | |
Intake valve clearance | 0.014 inches
0.356 mm |
Exhaust valve clearance | 0.018 inches
0.457 mm |
Transmission
Transmission options | |
|---|---|
12-speed fully synchronized | |
16-speed synchronized with power shuttle | |
16-speed partial power shift | |
24-speed partial power shift |
Transmission — John Deere SyncroPlus
Transmission | John Deere SyncroPlus |
Type | fully synchronized |
Gears | 12 forward and 4 reverse |
Oil capacity | 54.8 qts
51.9 L |
With 18.4R38 rear tires. | |
 | |

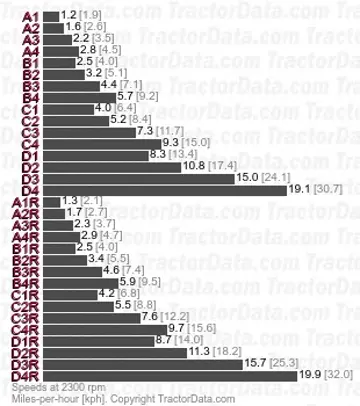

Transmission — John Deere PowrReverser
Transmission | John Deere PowrReverser |
Type | synchronized with power shuttle |
Gears | 16 forward and reverse |
Oil capacity | 54.8 qts
51.9 L |
With 18.4R38 rear tires. | |
 | |

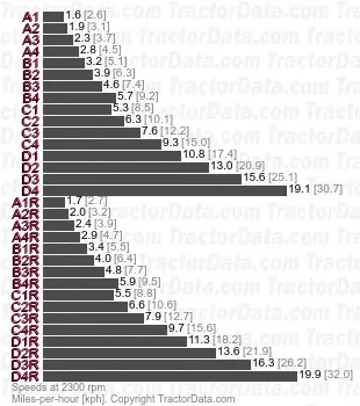

Transmission — John Deere PowrQuad
Transmission | John Deere PowrQuad |
Type | partial power shift |
Gears | 16 forward and reverse |
Clutch | wet disc |
Oil capacity | 51.6 qts
48.8 L |
52.8 qts (PowrQuad Plus)
50.0 L | |
Four gears (1-4) in four ranges (A-D) with left-hand reverser lever. Gear changes (1-4) and direction changes can be done while moving without the clutch. Clutch is required to shift range (A-D). Optional PowrQuad Plus adds push-button gear shifting. | |
With 18.4R38 rear tires. | |
 | |
Transmission — John Deere PowrQuad
Transmission | John Deere PowrQuad |
Type | partial power shift |
Gears | 24 forward and reverse |
Oil capacity | 52.8 qts
50.0 L |
Four gears (1-4) in six ranges (A-E) with left-hand reverser lever. Gear changes (1-4) and direction changes can be done while moving without the clutch. Clutch is required to shift range (A-D). Optional PowrQuad Plus adds push-button gear shifting. | |
With 18.4R38 rear tires. | |
 | |
Dimensions
John Deere 6230 Tires | |
|---|---|
Ag front | 12.4R24 |
Ag rear | 18.4R30 |
Dimensions | |
|---|---|
Wheelbase | 94.5 inches
240 cm |
Ground clearance | 18.5 inches
46 cm |
John Deere 6230 Weight | |
|---|---|
Shipping | 8,582 lbs (2WD ROPS)
3892 kg |
8,987 lbs (4WD ROPS)
4076 kg | |
9,678 lbs (4WD cab)
4389 kg | |
Operating | 10,515 lbs
4769 kg |
Max capacity | 16,755 lbs
7600 kg |
Max Drawbar | 4,960 lbs
2249 kg |
Max front axle | 4,520 lbs (2WD)
2050 kg |
11,025 lbs (2WD loader)
5000 kg | |
8,155 lbs (4WD)
3699 kg | |
12,125 lbs (4WD loader)
5499 kg | |
