John Deere 6630 Premium

2006 - 2011

Model year 2006-20082009-2011

Manufacturer

John Deere

John Deere 6.8L 6-cyl diesel

Engine (gross)

130 hp 96.9 kW

Engine (net)

125 hp 93.2 kW

Engine (max)

139 hp 103.7 kW

PTO (claimed)

112 hp 83.5 kW

Boost PTO (claimed)

130 hp 96.9 kW

Four-wheel drive

Hydraulic wet disc brakes

Cab standard with air-conditioning.

Fuel

54.7 gal 207.0 L

Optional Fuel

66 gal 249.8 L

Hydraulic system

14 gal 53.0 L

IVT Hydraulic system

16.4 gal 62.1 L

Type

load-sensing pressure-flow compensating (PFC)

Capacity

14 gal 53.0 L

IVT Capacity

16.4 gal 62.1 L

Pressure

2,901 psi 200.0 bar

Valves

4 (Max)

Pump flow

15.9 gpm 60.2 lpm

Optional Pump flow

29.1 gpm 110.1 lpm

Rear Type

IIIN

Control

15.9

Optional Control

29.1

Rear lift (at ends)

16,880 lbs 7656 kg

Rear PTO

independent

Clutch

electro-hydraulic wet disc

Rear PTO Type

540/540E/1000

Engine RPM

540@2143

540E@1684

1000@2208

Front PTO Type

1000

Engine RPM

1000@2185

Wheelbase

104.3 inches 264 cm

Weight

11,530 lbs 5230 kg

Front tire

420/70R28

Rear tire

18.4R38

Ground

negative

Charging system

alternator

Battery volts

12

Manufacturer

John Deere 6068HL480

Configuration

turbocharged diesel, 6-cylinder 24-valve, liquid-cooled

Displacement

413.7 ci 6.8 L

Bore/Stroke

4.19x5.00 inches 106 x 127 mm

Emissions

Tier III

Emission control

exhaust gas recirculation (EGR)

Rated Power (net)

125 hp 93.2 kW

Rated Power (gross)

130 hp 96.9 kW

Maximum Power (net)

134 hp 99.9 kW

Maximum Power (gross)

139 hp 103.7 kW

Fuel system

high-pressure common rail injection

Cooling system

viscous fan

Air cleaner

dry element

Rated RPM

2300

Idle RPM

845-2465

Operating RPM

1300-2300

Torque

394 lb-ft 534.3 Nm

Torque RPM

1500

Firing order

1-5-3-6-2-4

Starter volts

12

Starter power

4 hp 3.0 kW

Oil capacity

20.6 qts 19.5 L

Oil change

500 h

Coolant capacity

29.6 qts 28.0 L

Coolant change

1500 h

Intake valve clearance

0.014 inches 0.356 mm

Exhaust valve clearance

0.018 inches 0.457 mm

24-speed partial power shift

36-speed partial power shift

infinitely variable transmission (IVT)

Transmission

John Deere PowrQuad Plus

Type

partial power shift

Gears

24 forward and reverse

Clutch

PermaClutch II wet disc

Oil capacity

56 qts 53.0 L

Four power shift gears (1-4) in six synchronized ranges (A-F) with left-hand power shuttle. Optional de-clutch button allows range shifting without using the foot clutch.

Transmission

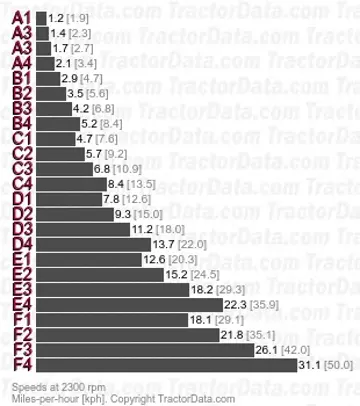

John Deere AutoQuad Plus

Type

partial power shift

Gears

24 forward and reverse

Clutch

PermaClutch II wet disc

Oil capacity

56 qts 53.0 L

AutoQuad Plus adds automatic load-matched gear shifting to the PowrQuad transmission. Available in 40kph or 50kph speeds.

Transmission

John Deere Creeper

Type

partial power shift

Gears

36 forward and reverse

Clutch

PermaClutch II wet disc

Oil capacity

56 qts 53.0 L

The optional creeper adds an additional twelve speeds to the PowrQuad or AutoQuad transmission.

Transmission

John Deere AutoPowr

Type

infinitely variable transmission (IVT)

Gears

infinite forward and reverse

Oil capacity

65.5 qts 62.0 L

The AutoPowr IVT is controlled by left-hand shuttle and a right-hand speed lever with speed wheel. The speed wheel sets the maximum speed. When set below 2kph, the transmission is automatically in creeper mode. AutoPowr available with 40kph and 50kph maximum speeds.

Standard tires (ag)

Front: 420/70R28. Rear: 18.4R38

Wheelbase

104.3 inches 264 cm

Length

168.9 inches 429 cm

Width

91.2 inches 231 cm

Height

108 inches 274 cm

Front tread

63.9 to 83.3 inches 162 to 211 cm

Rear tread

63.9 to 79.6 inches 162 to 202 cm

Shipping

11,530 lbs 5230 kg

Max capacity

22,050 lbs 10001 kg

Max rear axle

15,430 lbs 6999 kg
