John Deere 6810

The John Deere 6810 is a tractor produced by John Deere. It is equipped with a 414 ci 6.8 L engine. The listed engine power is Diesel (listed): 125 hp / 93.2 kW; Diesel (listed): 4.1 hp / 3.1 kW. Transmission: John Deere AutoPowr. Operating weight: 11400 lbs 5171 kg.

Overview

	1997 - 2001 6000 TEN SeriesRow-Crop tractor 6000 TEN Series Row-Crop tractor

Production
Manufacturer	John Deere
Row-Crop tractor

John Deere 6810 Engine
John Deere 6.8L 6-cyl diesel
Fuel tank	54.7 gal 207.0 L
	66 gal 249.8 L
Engine details ...

John Deere 6810 Power
Engine	125 hp 93.2 kW
PTO (claimed)	113 hp 84.3 kW

Mechanical
Four-wheel drive
Steering	hydrostatic power
Power steering

Hydraulics
Type	closed-center load sensing
Pressure	2900 psi 200.0 bar

Tractor hitch
Rear Type	II
Rear Arms	telescopic link ends

Power Take-off (PTO)
Rear PTO	independent
Rear PTO Type	540/1000
Engine RPM	540@1995
	540E@1743
	1000@1995
Front PTO	independent
Front PTO Type	1000
Engine RPM	1000@1995

Dimensions & Tires
Wheelbase	104.3 inches 264 cm
Weight	11400 lbs 5171 kg
Front tire	420/70R28
Rear tire	520/70R38
Full dimensions and tires ...

Electrical
Ground	negative
Charging system	alternator
Charging amps	90
	115
Battery volts	12

Engine

Engine Detail — 414 ci / 6.8 L Diesel

Manufacturer	John Deere
Configuration	turbocharged diesel, 6-cylinder
Displacement	414 ci 6.8 L
Bore/Stroke	4.19x5.00 inches 106 x 127 mm
Power	125 hp 93.2 kW
Rated RPM	2100
Torque	430 lb-ft 583.1 Nm
Torque RPM	1400
Firing order	1-5-3-6-2-4
Starter volts	12
Starter power	4.1 hp 3.1 kW
Oil capacity	20.8 qts 19.7 L
Coolant capacity	16.4 qts 15.5 L
Intake valve clearance	0.014 inches 0.356 mm
Exhaust valve clearance	0.018 inches 0.457 mm

Transmission

Transmission options
20-speed
18-speed full power shift

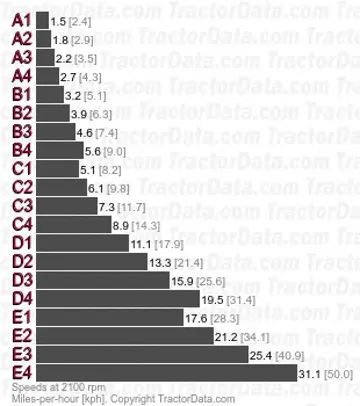

Transmission — John Deere PowrQuad

Transmission	John Deere PowrQuad
Gears	20 forward and reverse
50 KPH transmission with 18.4-38 rear tires. Reverse speeds are 15% faster than forward.

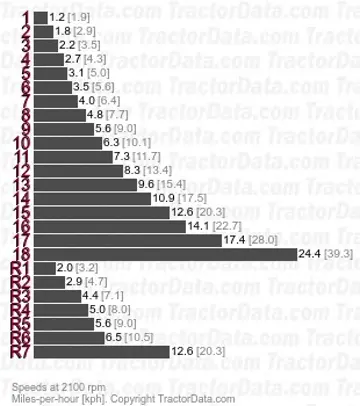

Transmission — John Deere PowrShift

Transmission	John Deere PowrShift
Type	full power shift
Gears	18 forward and 7 reverse
With 18.4-38 rear tires.

Transmission — John Deere AutoPowr

Transmission	John Deere AutoPowr
Gears	infinite forward and reverse

Dimensions

John Deere 6810 Tires
Ag front	420/70R28
Ag rear	520/70R38

Dimensions
Wheelbase	104.3 inches 264 cm
Length	179.6 inches 456 cm
Width	93 inches 236 cm
Height	113.5 inches 288 cm
Shipping weight	11400 lbs 5171 kg
Max weight	22050 lbs 10001 kg
Clearance (front axle)	21.6 inches 54 cm
Front tread	67.3 to 83.1 inches 170 to 211 cm
Rear tread	67.9 to 79.8 inches 172 to 202 cm
