John Deere 7130

The John Deere 7130 is a tractor produced by John Deere. It is equipped with a 276 ci 4.5 L engine. The rated power output is 125 hp 93.2 kW. Transmission: John Deere PowrQuad. Drive type: 4x2 2WD. Operating weight: 9657 to 12340 pounds.

Overview

	2007 - 2011 7030 Small-Frame SeriesRow-Crop tractor
2007 - 2011
7030 Small-Frame Series
Row-Crop tractor

Production
Manufacturer	John Deere
Row-Crop tractor
Built in Mannheim, Baden-Württemberg, Germany
The basic Deere 7130 was available a basic cab or open-operator station with ROPS. Upgraded hydraulics and hitch were optional on open-operator station models. Upgraded systems with a cab were only available on the 7130 Premium.

Variants
7130	base tractor
7130 Premium	deluxe tractor

John Deere 7130 Power
Engine (gross)	125 hp 93.2 kW
PTO (claimed)	100 hp 74.6 kW

Mechanical
Drive	4x2 2WD
	4x4 MFWD 4WD (optional)
Steering	hydrostatic power
Differential hydraulic wet disc brakes
Two-post Roll-Gard ROPS. Cab optional.

Capacity
Fuel	54.7 gal 207.0 L
	66 gal (optional) 249.8 L
Hydraulic system	13.7 gal 51.9 L
	15.9 gal 60.2 L
Front axle	8.8 qts 8.3 L
Front hubs	1.6 qts 1.5 L

Hydraulics
Type	constant flow load sensing
	closed-center load sensing (optional with ROPS)
Capacity	13.7 gal 51.9 L
	15.9 gal 60.2 L
Pressure	2900 psi 200.0 bar
Valves	1 to 4
Pump flow	21.1 gpm 79.9 lpm
	29 gpm (optional with ROPS) 109.8 lpm

Tractor hitch
Rear Type	II
Control	position control
	electronic lower-link (optional with ROPS)
Rear lift (at 24"/610mm)	5,915 lbs 2683 kg

Power Take-off (PTO)
Rear PTO	independent
Rear PTO Type	540/1000

Dimensions & Tires
Wheelbase	106.3 inches (2WD) 270 cm
	104.3 inches 264 cm
Weight	9657 to 12340 pounds
Front tire	10.00-16
Rear tire	18.4R38 (2WD)
Full dimensions and tires ...

Electrical
Ground	negative
Charging system	alternator
Charging amps	90
Battery volts	12

References
6030 and 7030 Series Tractors published in 2007, by John Deere

Engine

Engine options
John Deere 6.8L 6-cyl diesel
John Deere 4.5L 4-cyl diesel

Engine Detail — 414.4 ci / 6.8 L Diesel

Manufacturer	John Deere 6068HL280
Configuration	turbocharged diesel, 6-cylinder 12-valve, liquid-cooled
Displacement	414.4 ci 6.8 L
Bore/Stroke	4.19x5.00 inches 106 x 127 mm
Emissions	Tier III
Rated Power (gross)	121 hp 90.2 kW
Air cleaner	dual paper elements
Rated RPM	2300
Idle RPM	850-2460
Operating RPM	1600-2300
Torque	358 lb-ft 485.4 Nm
Torque RPM	1500
Firing order	1-5-3-6-2-4
Starter volts	12
Starter power	4 hp 3.0 kW
Oil capacity	20.8 qts 19.7 L
Intake valve clearance	0.014 inches 0.356 mm
Exhaust valve clearance	0.018 inches 0.457 mm

Engine Detail — 276 ci / 4.5 L Diesel

Configuration	turbocharged diesel, 4-cylinder 8-valve, liquid-cooled, The Deere 7130 switched to a four-cylinder engine with the 2010 model year.
John Deere PowerTech E 4045HL288
Displacement	276 ci 4.5 L
Bore/Stroke	4.19x5.00 inches 106 x 127 mm
Emissions	Tier III
Rated Power (gross)	125 hp 93.2 kW
Fuel system	high-pressure common rail
Air cleaner	dual paper elements
Compression	19:1
Rated RPM	2300
Idle RPM	850-2460
Operating RPM	1600-2300
Torque	372 lb-ft 504.4 Nm
Torque RPM	1600
Firing order	1-3-4-2
Starter volts	12
Starter power	4 hp 3.0 kW
Oil capacity	16.8 qts 15.9 L
Intake valve clearance	0.014 inches 0.356 mm
Exhaust valve clearance	0.018 inches 0.457 mm

Transmission

Transmission options
12-speed full synchro shift
16-speed full synchro shift
16-speed partial power shift
24-speed partial power shift

Transmission — John Deere SyncroPlus

Transmission	John Deere SyncroPlus
Type	full synchro shift
Gears	12 forward and 4 reverse
Oil capacity	54.8 qts 51.9 L
Four ranges, each with four forward gears and reverse operated via a range shift lever and gear shift lever. Cluch must be used to change range or gear. Only avaialable with ROPS.
With 18.4R38 rear tires.

Transmission — John Deere SyncroPlus PowrReverser

Transmission	John Deere SyncroPlus PowrReverser
Type	full synchro shift
Gears	16 forward and reverse
Oil capacity	54.8 qts 51.9 L
Four ranges, each with four gears. Operated via range shift lever and gear shift lever plus reverser lever. Clutch must be used to change range or gear.
With 18.4R38 rear tires.

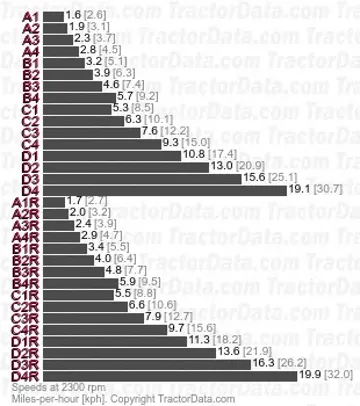

Transmission — John Deere PowrQuad

Transmission	John Deere PowrQuad
Type	partial power shift
Gears	16 forward and reverse
Oil capacity	54.8 qts 51.9 L
Four ranges, each with four gears. Operated via range shift lever and gear shift lever plus reverser lever. Clutch must be used to change range, clutchless power shift between gears and for direction change.
With 18.4R38 rear tires.

Transmission — John Deere PowrQuad

Transmission	John Deere PowrQuad
Type	partial power shift
Gears	24 forward and reverse
Oil capacity	54.8 qts 51.9 L
Six ranges, each with four gears. Operated via range shift lever and gear shift lever plus reverser lever. Clutch must be used to change range, clutchless power shift between gears and for direction change.
With 18.4R38 rear tires. Reverse speeds are approximately 5% faster than listed forward speeds.

Dimensions

John Deere 7130 Tires
Standard tires (ag)	Front: 10.00-16. Rear: 18.4R38 (2WD)
	Front: 14.9R24. Rear: 18.4R38 (4WD)

Dimensions
Wheelbase	106.3 inches (2WD) 270 cm
	104.3 inches 264 cm
Length	187.3 inches 475 cm
Width	65.5 inches (flange axle ends) 166 cm
Clearance (front axle)	21.6 inches (2WD) 54 cm
	23 inches (4WD) 58 cm
Clearance (rear axle)	28.2 inches 71 cm
Clearance (drawbar)	19 inches 48 cm
Rear axle	65.5 inch length 1663 mm (flange)
Rear axle	3.1 by 100.6 inches 78 by 2555 mm (optional bar)
Front tread	59.5 to 85.5 inches 151 to 217 cm (2WD)
Front tread	59.4 to 88 inches 150 to 223 cm (4WD)
Rear tread	63.5 to 72.5 inches 161 to 184 cm

John Deere 7130 Weight
Shipping	9,657 lbs (2WD) 4380 kg
	10,252 lbs (4WD) 4650 kg
Operating	12,340 lbs 5597 kg
Max capacity	18,740 lbs 8500 kg
Max Drawbar	4,960 lbs 2249 kg
Max front axle	4,520 lbs (2WD) 2050 kg
	9,260 lbs (4WD) 4200 kg
	11,025 lbs (2WD with loader) 5000 kg
	14,505 lbs (4WD with loader) 6579 kg
Max rear axle	14,330 lbs 6500 kg

John Deere 7130 Height
ROPS	115.2 inches 292 cm
	90.8 inches (folded) 230 cm
Cab	114.4 inches 290 cm
